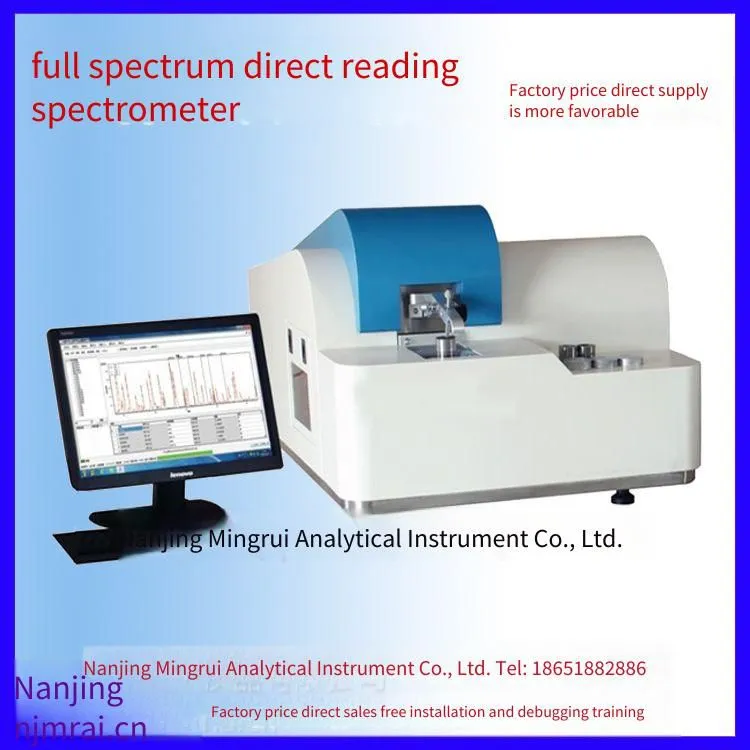

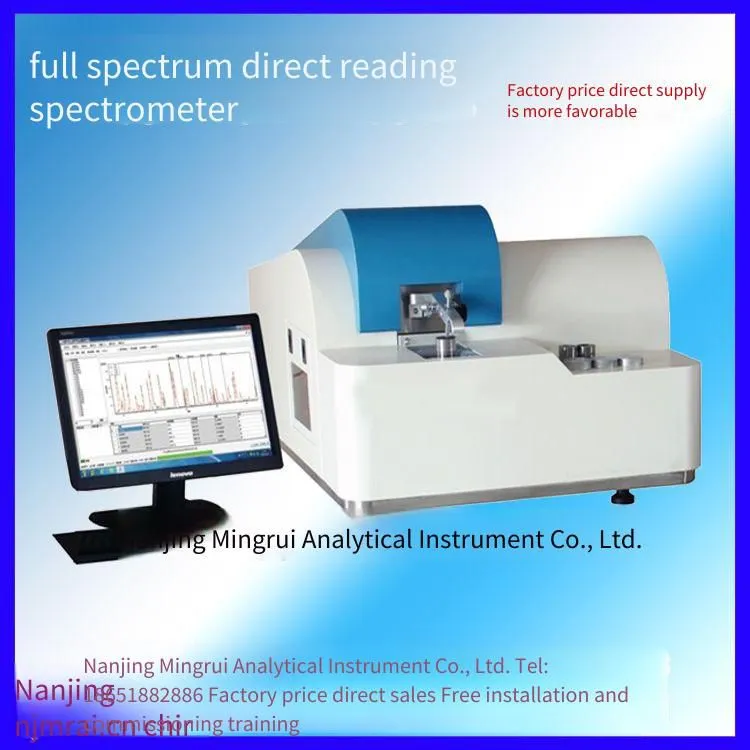

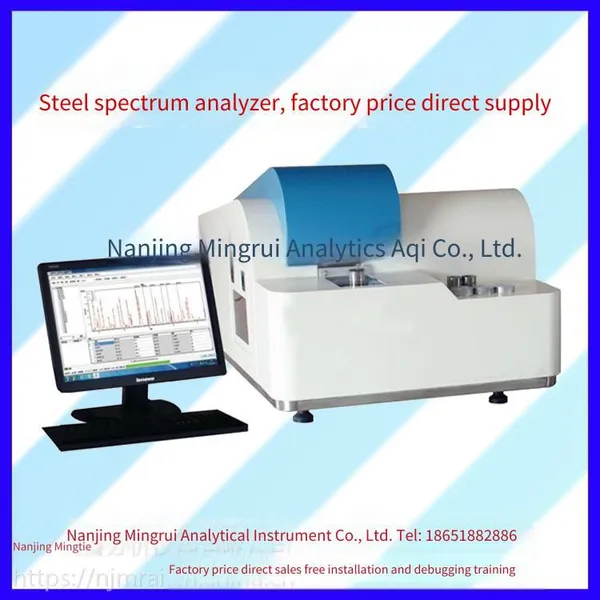

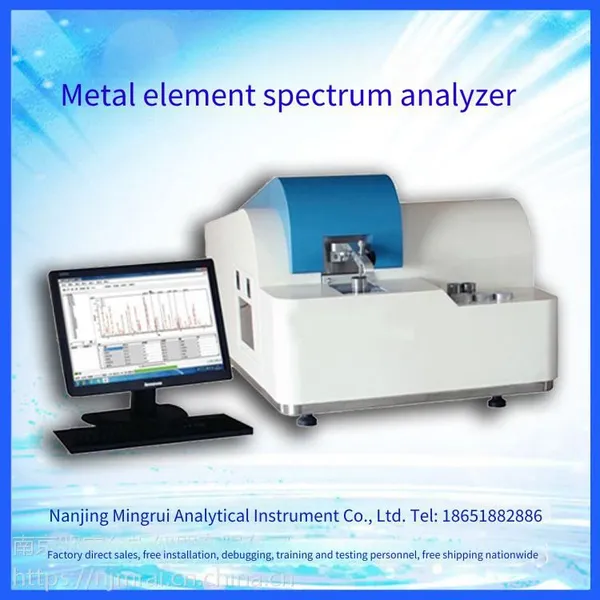

Nanjing Mingrui TY-9000 type Master Alloy Spectral Analyzer , featuring a compact size, powerful functions, and low power consumption, can measure all the conventional elements required for analysis in the metal industry. It has a wide analysis range, and its short - wave band analysis ability can reach 140nm. You can select the corresponding working curves as needed to add analysis elements without changing the hardware configuration, achieving multi - function with one machine. Phone: 18651882886 (WeChat).
It is suitable for the on - site metal analysis requirements in die - casting, melting and casting, steel or non - ferrous metal industries, as well as the inspection of incoming and outgoing materials and the metal material analysis in industries such as automotive and machinery manufacturing. Its application scope is very wide, covering various fields such as iron and steel metallurgy, non - ferrous metals, petrochemical industry, machinery manufacturing, energy and power, railway transportation, aerospace, food hygiene, environmental protection, and teaching and scientific research.
Master Alloy Spectral Analyzer Configuration and Features
It uses a vacuum optical chamber to measure the content of C, P, S in non - metallic elements and various alloy elements. The measurement results are accurate, with excellent reproducibility and long - term stability.
The structural design of the vacuum optical chamber makes the volume of the vacuum chamber smaller, and the vacuum pumping speed is less than half of that of ordinary spectrometers. Separating the entrance window from the vacuum chamber makes the daily cleaning and maintenance of the entrance window convenient and fast.
The optical system automatically scans the spectral lines and calibrates the optical path, ensuring the correctness of spectral line reception and eliminating the cumbersome peak scanning work.
The design of the excitation table and argon gas circuit greatly reduces the consumption of argon. The flexible sample clamp design can meet the analysis of samples of various shapes and sizes at the customer's site.
Multi - matrix analysis can be achieved without adding hardware facilities. Compared with photomultiplier tube spectrometers, it can greatly reduce the customer's use cost and expand the use scope.
It uses the jet electrode technology. In the excitation state, an argon jet airflow will be formed around the electrode, so that the excitation point will not contact the outside air during the excitation process, improving the excitation accuracy.
The dedicated spectral operation software is fully compatible with the Windows system. At the same time, various language versions can be provided according to customer requirements. The software is easy to operate. Even people without any spectrometer knowledge or operation experience can start using it after simple training.
It uses high - performance FPGA, DSP, and ARM processors, with ultra - high - speed data acquisition and analysis functions, and can automatically monitor and control the operating status of modules such as the optical chamber temperature, vacuum degree, argon pressure, and excitation light source in real - time.
The fully digital plasma excitation light source releases ultra - stable energy to excite samples in an argon environment. The fully digital excitation pulse ensures ultra - high resolution and high - stability output of the plasma energy of the excited samples, meeting the excitation requirements of various materials. sample excitation stage uses a copper spark table base and a tungsten material electrode. The copper spark table base provides the excitation stage with good heat dissipation and robustness. At the same time, the long service life and high temperature resistance of the tungsten electrode also improve the excitation performance. The design of the electrode self-purging function creates a good environment for excitation and makes it easier to clean the electrode of the excitation stage.
Master Alloy Spectral Analyzer Technical Parameters:
Analysis Matrix: Iron-based, copper-based, aluminum-based, nickel-based, cobalt-based, magnesium-based, titanium-based, zinc-based, lead-based, tin-based, silver-based.
Optical Structure: Paschen-Runge Rowland circle full-spectrum vacuum optical system
Wavelength Range: 130~800nm
Focal Length: 400mm
Grating Lines: 3000 lines/mm
Detector: High-performance CCD array, 3,648 pixels per CCD.
CCD Pixel Resolution: 6pm
Electrode: Tungsten spray electrode
Analysis Gap: The analysis gap of the sample stage is 4mm.
Light Source Type: A brand-new adjustable digital light source with high-energy pre-burning technology (HEPS).
Excitation Frequency: 100-1000Hz
Discharge Current: 400A
Vacuum System: Automatically controlled and monitored by vacuum software.
Instrument Dimensions: 720*860*500
Instrument Weight: Approximately 100kg (excluding the vacuum system).
Detection Time: It depends on the sample type, generally about 25S.
