Help CenterSupply of Molybdenum Concentrate Elemental Analyzer, Mingrui mr - Rsq Type, Molybdenum Ore Elemental Analyzer
Related Products
-
Supply of Oxygen, Nitrogen and Hydrogen Analyzer for Iron Pots, Mingrui Sqm-3a Type, Nitrogen Content Analyzer for Iron PotsUS$ 41230.77 - 45846.15MOQ: 1 Unit -
Supply of Lead and Alloy Spectral Analyzers, Mingrui Model ty - 9000, Lead-based Alloy Spectral AnalyzerUS$ 14615.38 - 16615.38MOQ: 1 Unit
-
Supply Spectrometer for Die-casting Machine Materials, Mingrui Ty-9000 Full-spectrum Direct-reading Spectral AnalyzerUS$ 14615.38 - 16153.85MOQ: 1 Unit
-
Supply of Ferrous Metal Mineral Analyzer, Mingrui mr - Rsc Type, Metal Mineral AnalyzerUS$ 1815.38 - 2123.08MOQ: 1 Unit
-
Supply of Metal Mineral Analyzer, Mingrui mr - Rsc Type, Ore Grade AnalyzerUS$ 1353.85 - 1815.38MOQ: 1 Unit

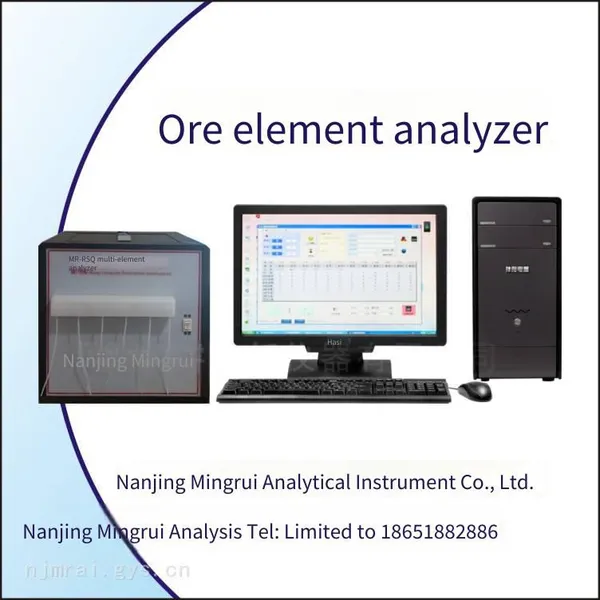

Nanjing Mingrui MR - RSQ Type Molybdenum Concentrate Element Analyzer , widely used in the quantitative analysis of non - metallic industries in fields such as cement plants, refractory material plants, ceramic raw material plants, electrical porcelain plants, glaze factories, glass factories, daily and architectural ceramic plants, mines, universities, scientific research institutions, quality inspection departments, etc. It is suitable for the joint measurement of multiple samples and is very suitable for on - site rapid analysis. The analysis results are accurate. Phone: 18651882886 (WeChat ID).
Detection speed: Usually, starting from sample weighing, the whole process of chemical composition analysis of 8 routine items can be completed in 2 - 3 hours. The analysis of all items can be completed in 4 - 5 hours. It adopts advanced single - chip microcomputer technology and optimized algorithms, which can maintain excellent linear accuracy in a high - concentration range. It is suitable for the joint measurement of multiple samples (up to 20 samples can be measured at one time) and is very suitable for on - site rapid analysis. A self - developed analysis software with independent intellectual property rights is specially developed. It has a standard WINDOWS style, with a beautiful interface, powerful functions, and simple and convenient operation. All switches and knobs on the analyzer are cancelled, and all functions are realized by the software, including automatic zero - setting and automatic adjustment of deviation correction. It fundamentally avoids the occurrence of mechanical failures, greatly improves the stability of the instrument, and makes the operation simpler.
Analysis process: Sample preparation ---> Weighing and melting the sample ---> Leaching and color development ---> Instrument measurement of data ---> Software analysis and processing of results ---> Computer storage, printing and output of results.
Molybdenum Concentrate Element Analyzer Main elemental components and ranges measured:
SiO2:0.00001~99% Al2O3:0.00001~99% Fe2O3:0.00001~99% TiO2:0.00001~99% K2O:0.00001~15% Na2O:0.00001~15% CaO:0.00001~99% MgO:0.00001~99% B2O3:0.00001~30% ZrO2:0.00001~99% PbO:0.00001~20% ZnO:0.00001~99% MnO:0.00001~15% Cr2O3:0.00001~15% BaO:0.00001~10% NiO:0.00001~15% CoO:0.00001~10% P2O5:0.00001~30% Li2O:0.00001~15% SnO:0.00001~99% If the content range of the measured elements exceeds this specification, the user can appropriately reduce the sample weighing amount or aliquot amount according to the measurement method to meet the measurement requirements. The user can also propose in advance for us to provide the corresponding chemical analysis process to meet the user's measurement needs.
Molybdenum Concentrate Element Analyzer Types of measurable substances:
1. Rapid quantitative determination of components in silicate minerals and materials.
2. Rapid quantitative determination of each component in raw materials, semi-finished products, and finished products used in the production of cement, ceramics, refractory materials, glass, limestone, etc.
3. Rapid quantitative determination of the main components of the following chemical raw materials: chromium salt products, V2O5 and vanadium salt products, NiO and nickel salt products, Co¬2O3 and cobalt salt products, MnO and manganese salt products, titanium dioxide, phosphates, zinc oxide, borax, boric acid, barium carbonate, water glass, sodium humate, zirconium oxide, zirconium silicate, potassium salt products, sodium salt products, molybdate products etc.
4. Determination of each component in various non-ferrous metal minerals such as molybdenum ore, nickel ore, cobalt ore, and tungsten ore.
Molybdenum Concentrate Element Analyzer Working conditions:
1. Stabilized power supply: 220V, 50Hz
2. Main unit power: 100w (excluding the computer, etc.)
3. Installation area: 3500×800mm
4. Ambient temperature: 20±10℃
5. Relative humidity: ≤85％
Molybdenum Concentrate Element Analyzer Installation and commissioning
Professional technical personnel will be sent to the site for installation, commissioning, and training until the user learns.
