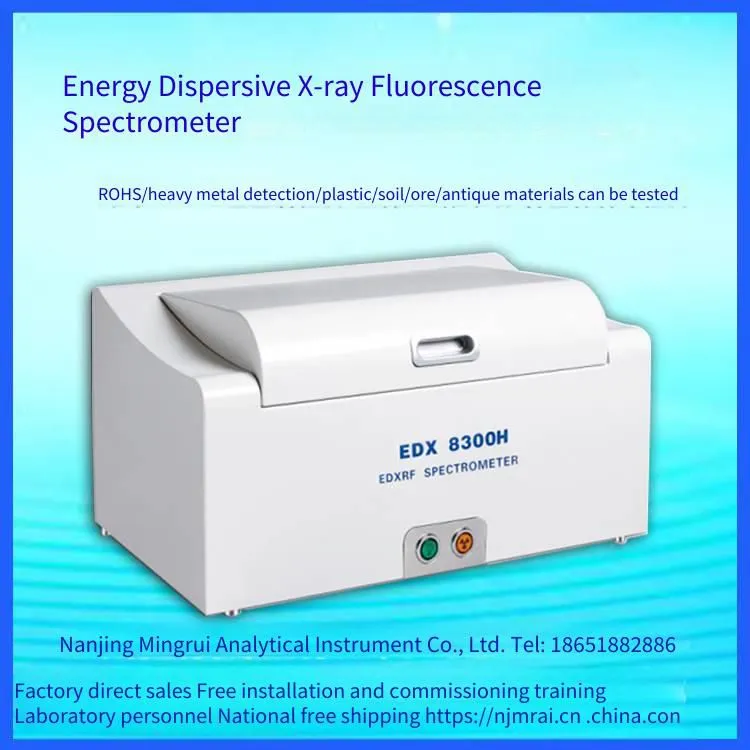

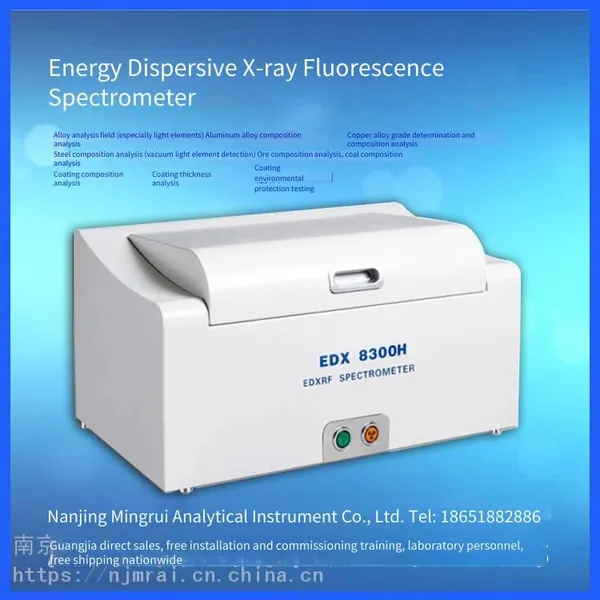

Nanjing Mingrui EDX8300H type Hazardous Element Detector , widely used in industries such as electronics and electrical, and automobile manufacturing, for the inspection of hazardous elements and quality control in line with the EU RoHS/ELV directives. It can also be used in fields such as the chemical industry, petrochemical industry, and environment for qualitative, semi - quantitative, and quantitative analysis of elements in samples such as ores, alloys, and soils. Phone: 18651882886 (WeChat).
Hazardous Element Detector Technical Performance and Indicators:
(1) The element analysis range is from sodium (Na) to uranium (U);
(2) The element content analysis range is from 1PPm to 99.99%;
(3) Measurement time: 100 - 300 seconds (adjustable);
(4) The detection limit of hazardous elements specified in the RoHS directive (limited to Cd/Pb/Cr/Hg/Br/Cl) reaches 1PPM;
(5) The energy resolution is 149 ± 5 electron volts;
(6) The temperature adaptation range is from 15℃ to 30℃;
(7) Power supply: AC 220V ± 5V (it is recommended to configure an AC purification regulated power supply);
Hazardous Element Detector Features
(1) The EDX8300H is better at dealing with environmental protection directives such as RoHS and halogen - free, as well as the detection of light elements in alloys. It is equipped with a vacuum test system, which expands the element test range. The detector is equipped with an SDD test system, especially improving the detection limit of light elements such as Na, Mg, Al, and Si, enhancing the accuracy. At the same time, the repeatability and stability of testing other elements such as Cd/Pb/Cr/Hg/Br/Cl have been significantly improved. The overall structure design makes the instrument beautiful and elegant.
(2) It uses a US SDD detector, which is electrically cooled instead of liquid nitrogen cooled, with a small size, accurate data analysis, and low maintenance cost.
It adopts the self - developed SES signal processing system (digital multi - channel), which effectively improves the peak - to - background ratio and makes the measurement more accurate.
One - key automatic testing makes it simpler, more convenient to use, and the interface is more user - friendly.
It has seven optical path correction and collimation systems, which can automatically switch according to different samples.
It has a multi - level anti - radiation leakage design, and its radiation protection level is among the best in similar products.
The optimized integrated heat dissipation design greatly improves the overall heat dissipation performance of the machine, ensuring the safe operation of the X - ray source.
The unique movement temperature monitoring technology ensures the safe and reliable operation of the ray source, effectively extending its service life and reducing the use cost.
Multiple instrument accessory protection systems, and the entire process can be monitored through software, making the instrument work more stably and safely.
Special vacuum test software allows you to freely choose whether to vacuum, displays the vacuum degree in real-time, features a standard window design, has a user-friendly interface, and is easy to operate. All controls are just a click of the mouse away.
This machine uses a USB2.0 interface to effectively ensure accurate, high-speed, and efficient data transmission.
The unique fully automatic vacuum system shields the influence of air on the testing of light elements, greatly improving the detection limit of light elements and expanding the detection range.
The integrated vacuum chamber design effectively ensures the vacuum degree that meets the testing requirements and improves the maintainability of the equipment.
The conversion between vacuum testing and non-vacuum testing is simple, which is convenient for customers to use. At the same time, the vacuum is released when the cover is opened, which is safe, simple, and practical.
(3) Main configurations of the instrument hardware part
SDD electrically cooled detector: (The latest detector)
SDD electrically cooled detector; Resolution: 129±5 eV.
Amplifier circuit module: Detects the characteristic X-rays of the sample and further amplifies the detected and collected information.
(4) X-ray excitation device (thin beryllium window tube):
Filament current output: 1mA;
It is a semi-lossy component with a service life of more than 25,000 hours.
High-voltage emission device (imported high voltage):
Voltage output: 50kV;
Minimum 5kV controllable adjustment.
It comes with voltage overload protection.
(5) Integrated vacuum system
A vacuum pump system with excellent performance such as low vibration, low noise, self-protection and fast pumping speed;
Geometric pumping speed: 60 L/min (50Hz)
Ultimate pressure: 6.7×10-2 Pa
(6) Digital multi-channel analyzer:
Convert the collected analog signals into digital signals and provide the processing results to the host computer software;
Number of channels: 4096;
It includes a signal enhancement processing function;
Optical path filtering module
Reduce the interference during the X-ray optical path transmission process to ensure the accurate reception of signals by the detector;
Integrate the collimator and the filter;
(7) Automatic collimator switching module
There are up to 7 options, with calibers of 8-1＃, 8-2＃, 8-3＃, 8-4＃, 6＃, 4＃, 2＃ respectively.
Automatic filter switching module.
Free selection and switching of five kinds of filters.
Free combination module of collimator and filter.
There are up to dozens of free combinations of collimators and filters.
Automatic selection module of working curve.
Automatically select the working curve, abandon manual selection, avoid human operation errors, and make automation and intelligence more perfect, making the operation more user-friendly and convenient.
3. Special software MeaRohs
(1) Software introduction
Specifically developed for RoHS (including halogen elements) detection (with vacuum control function), it processes the collected spectral signals, performs calculations, and displays the measurement results in the report.
(2) Function introduction
Specifically designed for testing the five elements Cd, Pb, Hg, Br, Cr involved in the six substances in the EU RoHS Directive and the halogen element Cl. The measurement time is 100 - 300 seconds (adjustable). The operation interface is simple and intuitive, easy to use, and does not require professional operation.
(3) The software interface is shown in the following figure:
It can automatically select the appropriate calibration curve, making measurement more convenient and accurate. It can automatically switch between Chinese and English interfaces and has the function of customizing a third - party language;
Automatically calibrate the instrument;
It comes with qualitative analysis of sample materials to prevent users from manually selecting the wrong curve;
Print in various report forms;
It can display multiple spectrograms simultaneously;
The instrument test parameters and vacuum degree are displayed in real - time, making all information clear at a glance;
The unique movement temperature monitoring technology ensures the safe and reliable operation of the X - ray source, effectively extends its service life, and reduces the use cost.
4. Sample configuration
Standard samples are used to make working curves

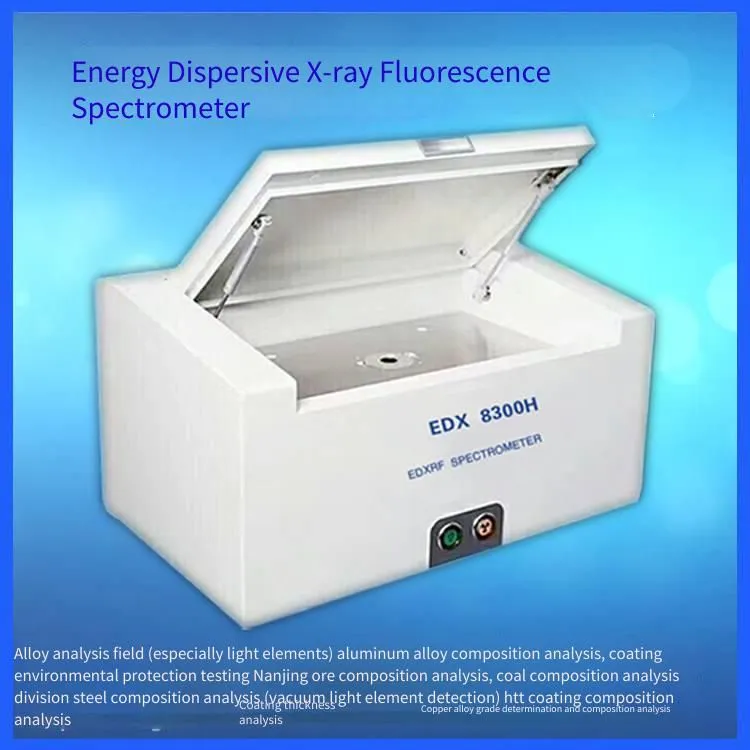

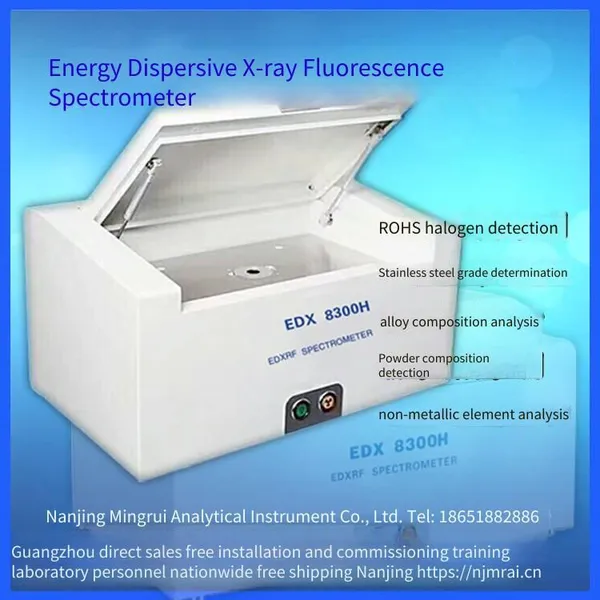

(1) Sample chamber
Open large sample chamber: 610mm×320mm×100×
Semi - enclosed sample chamber (when vacuuming): Φ100mm×h75mm
(2) Standard samples
EU standard samples EC680K, EC681K
Silver calibration sheet
5. Standard accessories
Low-noise and high-speed vacuum pump
Small in size, light in weight, simple in structure, easy to maintain and repair
High pumping speed, can reach the vacuum test requirement in 20S
The ultimate pressure can reach 6.7×10-2Pa
Powered by single-phase AC220V, no need for external three-phase power
