Nanjing Mingrui MR-CS-2F Steel Grade Analyzer for Checkered Steel Plates ，with full Chinese operating software on the computer, which is easy to operate and master. It provides a sample management function, allowing you to edit the sample name and label, and add or delete sample names. There is one curve frame for each of the carbon and sulfur functions, dynamically displaying real-time data during the analysis process and the release curves of carbon and sulfur. It is used to analyze the content of elements such as manganese, phosphorus, silicon, chromium, nickel, molybdenum, vanadium, titanium, aluminum, copper, iron, tin, lead, rare earth, and magnesium in materials such as steel and its alloys, non-ferrous metals and their alloys (aluminum alloys, copper alloys, magnesium alloys, zinc alloys, etc.), and ores. Tel: 18651882886 (WeChat ID).

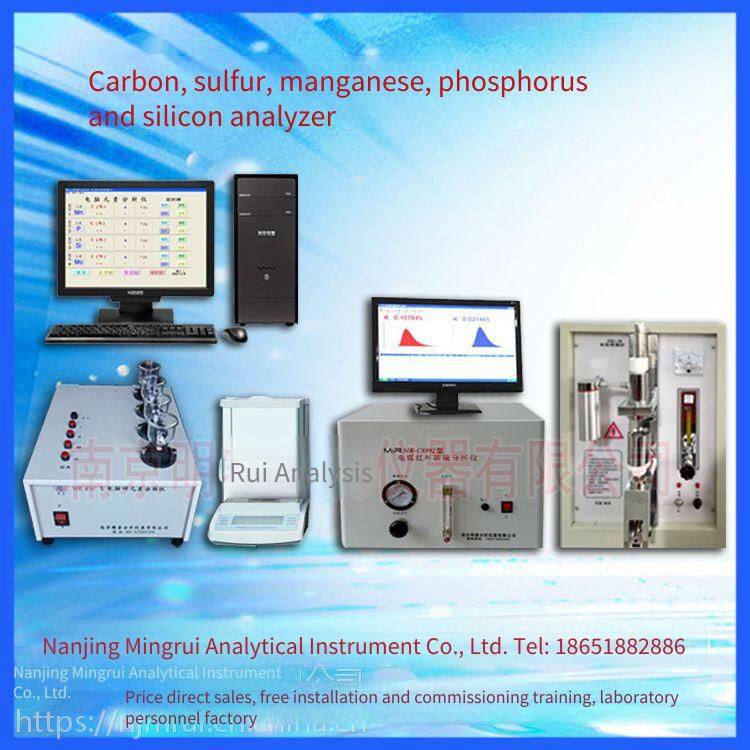

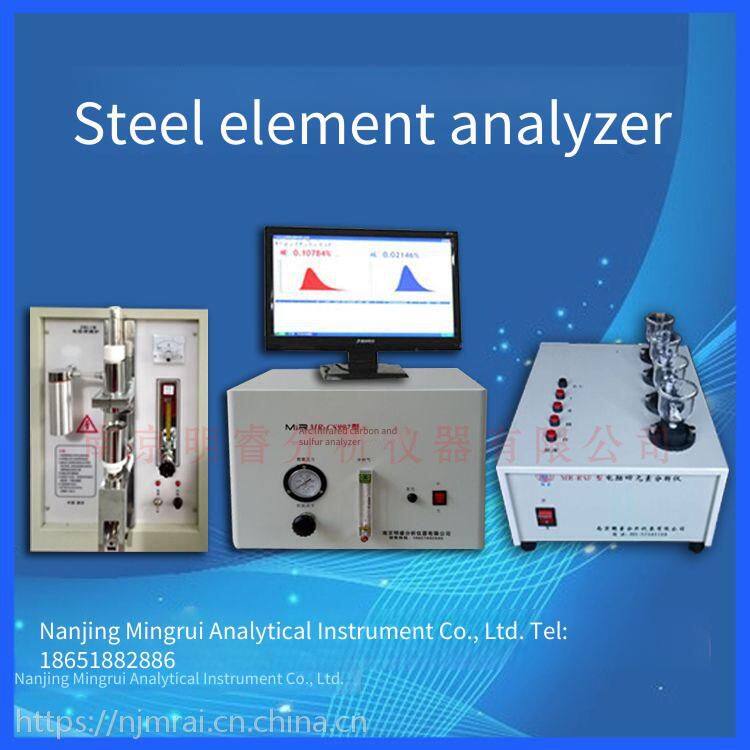

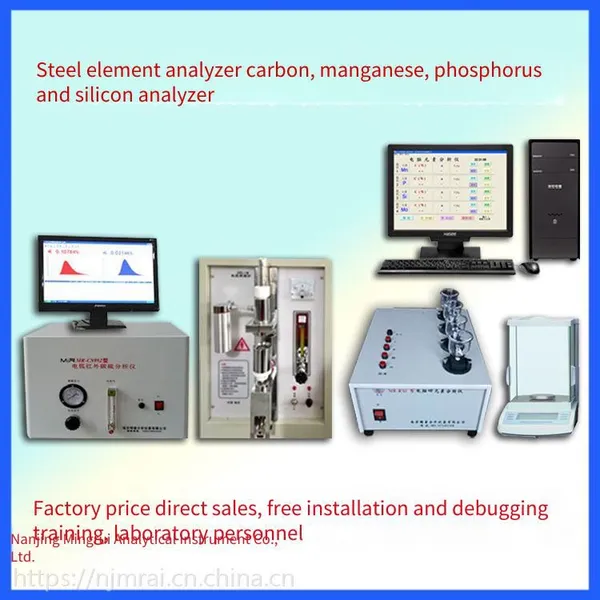

It consists of an arc infrared carbon-sulfur analyzer, a multi-element analyzer, a computer, an electronic balance, and a printer. It uses an arc burning furnace to burn the sample and the infrared absorption method to test the mass fraction of carbon and sulfur in the sample; the photoelectric colorimetric analysis method is used to determine elements such as manganese (Mn), silicon (Si), and phosphorus (P). This equipment is a combined testing device, consisting of two parts: the MR-CS992 arc infrared carbon-sulfur analyzer and the MR-RSF multi-element analyzer, which are independently produced by our company, Nanjing Mingrui Analytical Instruments Co., Ltd. Customers can choose according to their needs.
Steel Grade Analyzer for Checkered Steel Plates Main Technical Parameters
1. Carbon and sulfur detection part
Main technical indicators:
Measuring range: Carbon: 0.00010%-10.000% Sulfur: 0.00005%-0.3500%
Detectors: Two (carbon and sulfur)
Sensitivity: 0.000001％(m/m) (0.01ppm)
Analysis error:
Carbon is better than the GB/T223.69—1997 standard
Sulfur is better than the GB/T223.68—1997 standard
Refer to reliable steel standard samples.
Analysis time: Adjustable from 25 to 60 seconds, generally 35 seconds
Electronic balance: You can choose electronic balances of different brands, which can be automatically connected to the computer to achieve non-quantitative sample weighing.
Main features:
It uses an arc furnace to burn the sample and the infrared absorption method to test the mass fraction of carbon and sulfur in the sample. Only gas passes through, and no chemical reagent solutions are required, avoiding problems such as corrosion of the instrument and the instrument malfunction caused by improper operation that allows liquid to enter the solenoid valve, sensor, etc. The operation is simpler, the speed is faster, the measurement range is wider, and the instrument is more stable.
It uses low-noise, high-sensitivity, and high-stability infrared detectors;
Modular design of the whole machine improves the reliability of the instrument;
Fully Chinese operation interface, easy to operate and master;
The software is fully functional, providing more than forty functions such as system diagnosis, channel selection, mathematical statistics, and result correction;
Dynamically display various data and carbon and sulfur release curves during the analysis process;
Wide linear measurement range and can be extended;
Imported solenoid valves improve the reliability of the gas path system;
High-frequency spark continuously ignites the arc and automatically tracks and burns the sample;
It saves electricity, materials, and is fast and accurate.
2. Detection part of other elements
Measurement range: 0~1.999A absorbance value, 0~99.99% concentration value
Measurement accuracy: Complies with GB223.3-5-88 standard
Analysis method: Photoelectric colorimetric analysis method
Detectable elements: Conventional elements such as manganese, phosphorus, silicon, nickel, molybdenum, chromium, titanium, copper, lead, zinc, magnesium, and rare earths in non-ferrous metals, ferrous metals and other materials
Software system:
1. Fully Chinese interface of WIN XP, easy to operate and master
2. Using serial port connection for communication, it is more stable and faster than USB port
3. Provides curve management function. Element curves can be added, deleted and edited by yourself without quantity limitation
4. Provides sample management function. You can edit the sample name and label, and add and delete sample names
5. Query the analysis results at will. You can query according to multiple aspects such as time, operator, sample name, and label
6. Automatically collect the zero point and automatically track the full scale
7. Automatically process and store data
8. Query and print the saved real-time data and original data at will as needed
We provide various accessories required for laboratory instruments all year round (glassware, analytical balances, carbon determination cups, special cups for carbon-silicon meters (square cups, round cups), silicon-molybdenum powder, professional thermocouples for temperature measuring instruments, tin particles, standard samples, reagents, additives, etc.).
