Nanjing Mingrui MR-CS-2F Type Zinc-Copper Alloy Nut Analyzer , suitable for quantitative analysis and determination of conventional elements such as Mn, P, Si, Cr, Ni, Mo, Cu, Ti, Al, W, V, Zn, Fe, Mg in materials such as steel and its alloys in industries such as steel, metallurgy, casting, machinery, chemical industry, mining, construction, environmental protection, as well as in institutions of higher learning, scientific research institutes, and quality supervision departments. Phone: 18651882886 (WeChat ID).

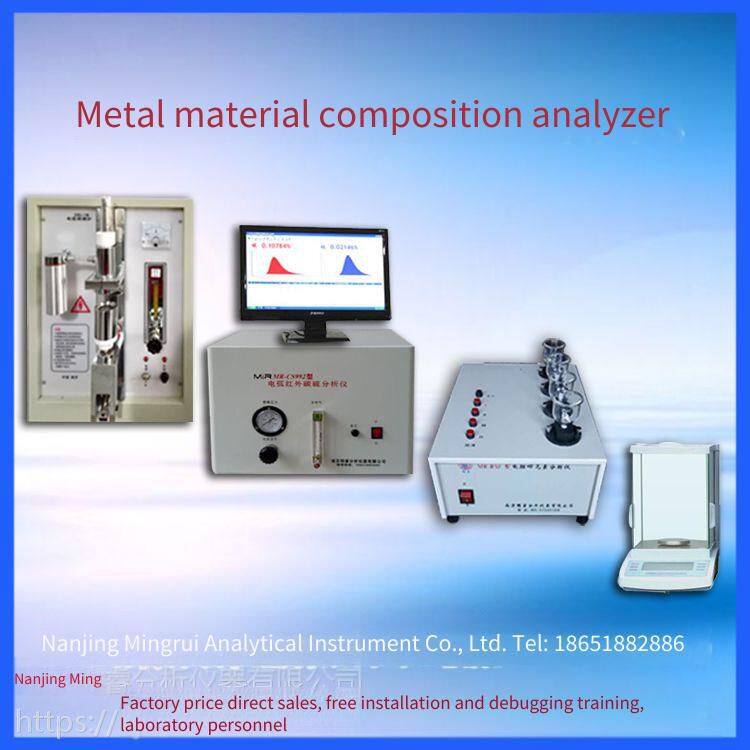

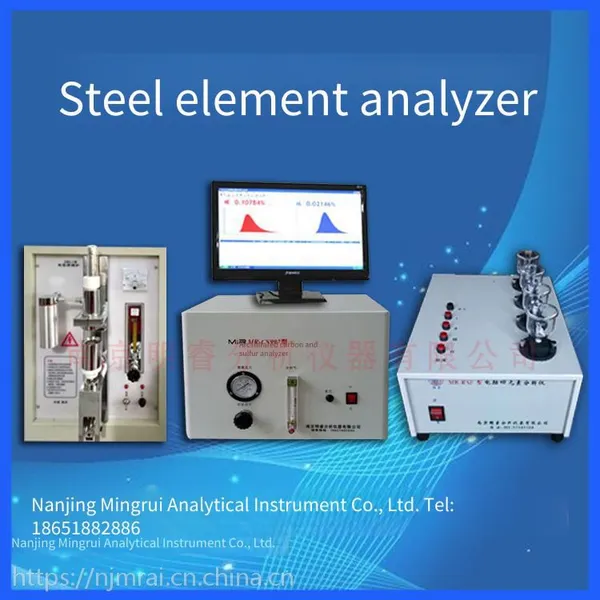

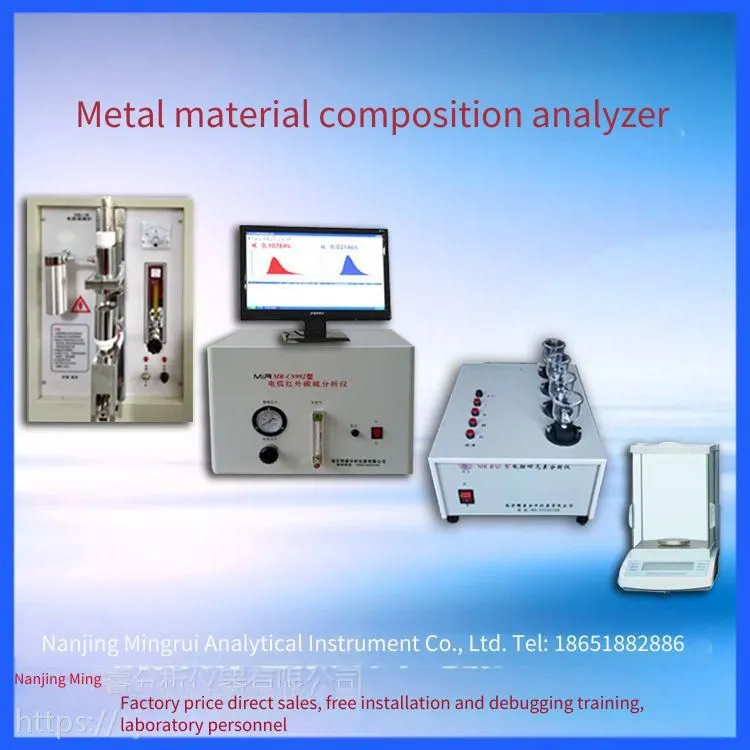

It uses an arc combustion furnace to burn samples and the infrared absorption method to test the mass fractions of carbon and sulfur in the samples; the photoelectric colorimetric analysis method is used to determine elements such as manganese (Mn), silicon (Si), and phosphorus (P). This equipment is a combined testing device, consisting of two parts: the MR-CS992 Type Arc Infrared Carbon-Sulfur Analyzer and the MR-RSF Type Multi-Element Analyzer independently produced by our company, Nanjing Mingrui Analytical Instruments Co., Ltd. Customers can choose according to their needs.

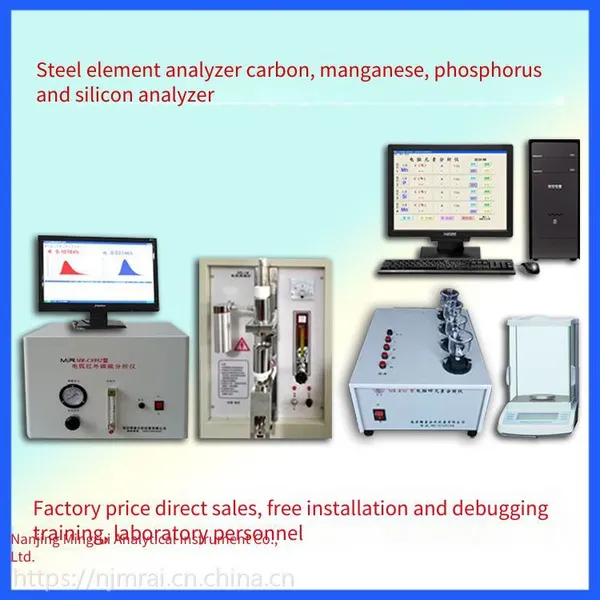

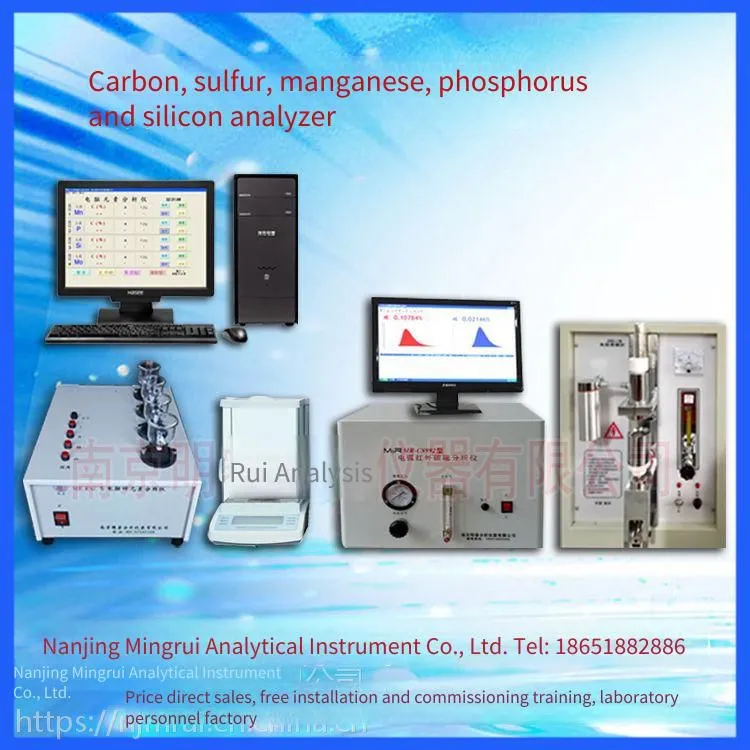

It is operated by computer software and equipped with an electronic balance for non-quantitative sample weighing. The analysis results can be stored for a long time. It can detect the contents of elements such as carbon, sulfur, manganese, phosphorus, silicon, nickel, chromium, molybdenum, and copper in materials such as plain carbon steel, high, medium, and low alloy steels, pig iron, cast iron, alloy cast iron, stainless steel, tool steel, die steel, spring steel, high-speed steel, ductile iron, and various ores. It consists of an arc infrared carbon-sulfur analyzer, a multi-element analyzer, a computer, an electronic balance, and a printer.
Zinc-Copper Alloy Nut Analyzer Main Technical Parameters
1. Carbon and Sulfur Detection Part
Main Technical Indicators:
Measuring Range: Carbon: 0.00010% - 10.000% Sulfur: 0.00005% - 0.3500%
Detectors: Two (Carbon, Sulfur)
Sensitivity: 0.000001％(m/m) (0.01ppm)
Analysis Error:
Carbon is better than the GB/T223.69—1997 standard
Sulfur is better than the GB/T223.68—1997 standard
Refer to reliable steel standard samples.
Analysis Time: Adjustable from 25 to 60 seconds, generally 35 seconds
Electronic Balance: You can choose electronic balances of different brands, which are automatically connected online to achieve non-quantitative sample weighing.
Main Features:
It uses an arc furnace to burn samples and the infrared absorption method to test the mass fractions of carbon and sulfur in the samples. Only gas passes through, without the need for chemical reagent solutions, avoiding problems such as corrosion of the instrument and the instrument malfunctioning caused by improper operation that allows liquid to enter the solenoid valve, sensor, etc. The operation is simpler, the speed is faster, the measurement range is wider, and the instrument is more stable. low-noise, high-sensitivity, and high-stability infrared detectors;
The whole machine adopts modular design, which improves the reliability of the instrument;
The full Chinese operation interface is convenient to operate and easy to master;
The software has complete functions, providing more than forty functions such as system diagnosis, channel selection, mathematical statistics, and result correction;
Dynamically display various data and carbon and sulfur release curves during the analysis process;
The measurement linear range is wide and can be extended;
Imported solenoid valves improve the reliability of the gas path system;
High-frequency spark continuously strikes arcs and automatically tracks and burns samples;
It saves electricity, materials, and is fast and accurate.
2. Detection part of other elements
Measurement range: 0~1.999A absorbance value, 0~99.99% concentration value
Measurement accuracy: Comply with GB223.3-5-88 standard
Analysis method: Photoelectric colorimetric analysis method
Detectable elements: Conventional elements such as manganese, phosphorus, silicon, nickel, molybdenum, chromium, titanium, copper, lead, zinc, magnesium, and rare earths in non-ferrous metals, ferrous metals and other materials
Software system:
1. The full Chinese interface of WIN XP is convenient to operate and easy to master
2. Using serial port connection for communication is more stable and faster than USB port
3. Provide curve management function. Element curves can be added, deleted, and edited by oneself without quantity limitation
4. Provide sample management function. The sample name and identifier can be edited, and sample names can be added and deleted
5. The analysis results can be queried at will, and can be queried according to multiple aspects such as time, operator, sample name, and identifier
6. Automatically collect the zero point and automatically track the full scale
7. Automatically process and store data
8. Query and print the saved real-time data and original data at will as needed
Provide various accessories required for laboratory instruments all year round (glassware, analytical balance, carbon determination cup, special cups for carbon-silicon meter (square cup, round cup), silicon-molybdenum powder, professional thermocouples for temperature measurement instruments, tin particles, standard samples, reagents, additives, etc.).
