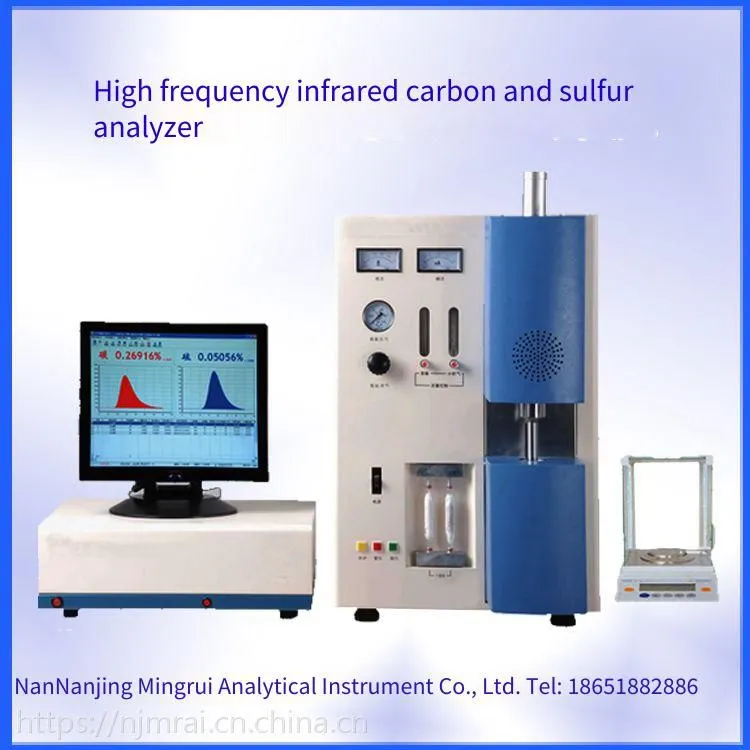

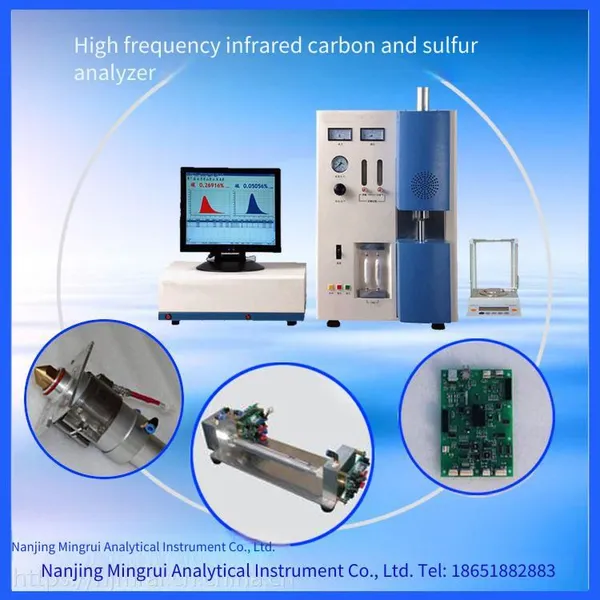

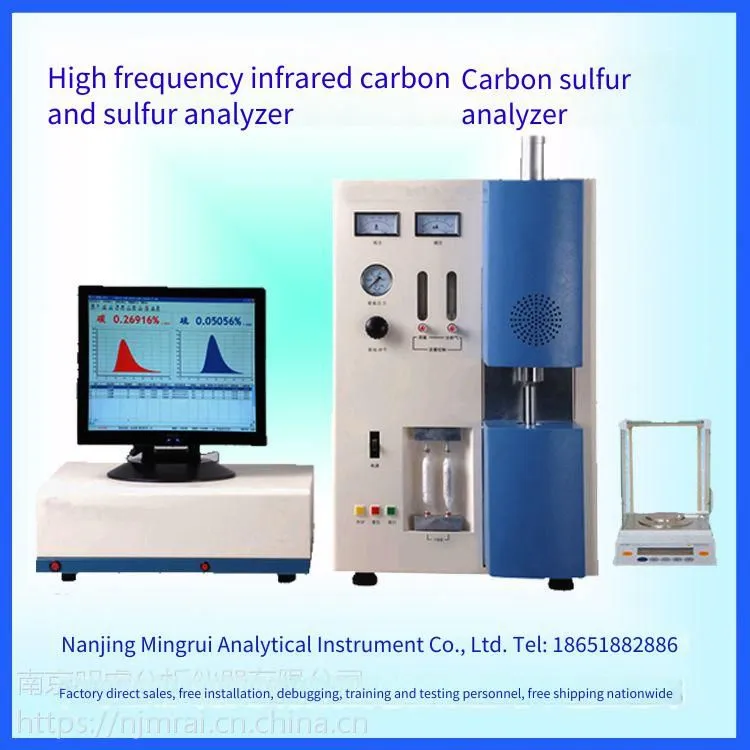

Nanjing Mingrui MR-CS995 Automotive Beam Steel Plate Carbon and Sulfur Analyzer features a wide measurement range, strong anti-interference ability, complete functions, easy operation, and accurate and reliable analysis results. It is applied in fields such as steel, iron, alloys, casting core sand, non-ferrous metals, cement, ores, coke, catalysts, magnetic materials, ceramics, inorganic substances, graphite, refractory materials, and battery materials. Phone: 18651882886 (WeChat).
Automotive Beam Steel Plate Carbon and Sulfur Analyzer Technical Specifications and Indicators
1. Basic Parameters: Instrument Performance and Accessories
Elements to be Determined: Simultaneous determination of carbon and sulfur
Analysis Principle: High-frequency furnace combustion - infrared absorption method for detection
Analysis Range: Carbon: 0.0005%-6.0000% (extendable to 99.999%), Sulfur: 0.0005%-0.3500% (extendable to 99.999%)
Sample Weight (Solid Steel Standard): Standard 0.5g
Analysis Precision: Carbon: Complies with ISO9556 standard; Sulfur: Complies with ISO4935 standard
Sensitivity (Reading): C/S: 0.1ppm
Analysis Time: Adjustable from 20 - 100 seconds (usually 35 seconds)
Working Cycle: 24h continuous operation
High-frequency Induction Heating Furnace:
1. Output power of the high-frequency furnace: 2200W; Frequency: 20MHz
2. Automatic leak detection, over-time and over-current alarm
3. Adjust the furnace temperature by current/voltage/power/selection method: Suitable for samples of different materials
4. Gas Path: A high-precision flow controller ensures stable gas flow and an imported gas path system
Dust Filter: 0.4-micron ultra-microporous metal filter to ensure complete separation of dust and gas
Furnace Head Heating: Improves the conversion rate of sulfur and stabilizes the sulfur analysis results
Dust Removal System: Automatic cleaning: Reduces the impact of dust on the analysis results
Ash Discharge System: High-pressure ash discharge to remove dust in the pipeline
Detection System:
1. Circuit Design: The whole machine adopts a modular design of upper and lower computers with dual CPUs. The lower computer uses Atmega162 as the control single-chip microcomputer. The electronic circuit is highly integrated, stable and reliable;
2. Sampling: Uses a high-speed 24-bit ADS1224 sampling chip with high sampling precision;
3. Communication: The upper and lower computers communicate via a USB2.0 interface, which improves the communication speed;4. Connection: The infrared detection part is connected to the high-frequency furnace via high-speed optical fiber, and is paired with multi-level concealed isolation circuits;
5. Power supply: An industrial-grade integrated linear module power supply with stable output and no failures;
6. Light source: A platinum infrared light source with continuous heat generation and high spectral characteristic efficiency;
7. Analysis cell: A gold-plated carbon-sulfur analysis cell and a high-precision pyroelectric infrared detector.
2. Analysis software
(1) Operating software: Compiled with Deliph software, it is a fully Chinese-operated software for WINDOWS XP.
(2) Analysis channels: It provides channel management functions. Carbon and sulfur channels can be added, deleted, and edited without any quantity restrictions.
(3) Analysis function: Dynamic data integration during the analysis process, sampling 20 times per second, which improves the sensitivity and accuracy of the analysis;
(4) It provides sample management functions, allowing editing of sample names and identifiers, as well as adding and deleting sample names;
(5) The software offers a multi-user management system, where administrators can set different user permissions.
(6) Display function: One curve box for carbon and one for sulfur, dynamically displaying all real-time data and carbon and sulfur release curves during the analysis process.
(7) Data processing function: Analysis results are stored in the ACCESS database, capable of storing all data and curves of carbon and sulfur from each analysis;
(8) Analysis results can be queried at will, and queries can be made based on multiple aspects such as time, operator, sample name, and identifier;
(9) It provides multiple functions such as curve/data storage, blank deduction, parameter setting, channel selection, mathematical statistics, result correction, and curve comparison;
(10) The generation of carbon and sulfur working curves can be achieved in the software, and curve fitting can be performed.
(11) Printing function: There are diverse printing modes, providing two printing modes for laboratories and testing stations, and the printing format can be designed independently.
(12) Self-diagnosis function: A system diagnosis function that can detect the sealing of the furnace head and gas chamber through the software.
