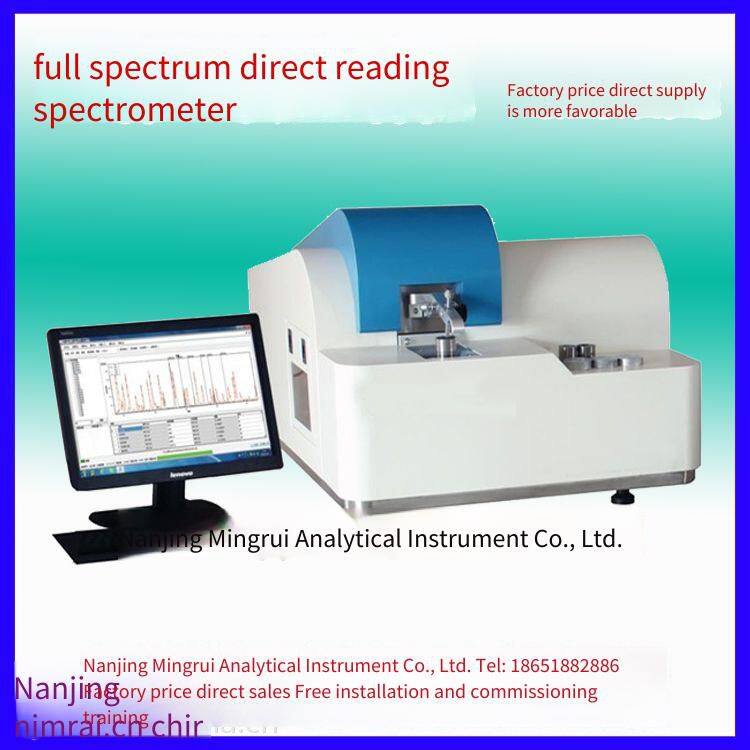

Nanjing Mingrui TY-9000 Spectral Analyzer for Watch Parts Manufacturing , no cost for changing or adding channels within the matrix range; small size, light weight, convenient for moving and installation; easy to upgrade to multi-matrix without changing or adding hardware; can measure all chemical elements that need to be analyzed in the metal industry, including: trace carbon (C), phosphorus (P), sulfur (S). Application fields: various analyses in metallurgy, casting, machinery, scientific research, commodity inspection, automobile, petrochemical, shipbuilding, power, aviation, nuclear power, metal and non-ferrous smelting, processing and recycling industries. Phone: 18651882886 (WeChat ID).
Configuration and Features of the Spectral Analyzer for Watch Parts Manufacturing
1. Using a vacuum optical chamber, it can measure the content of C, P, S in non-metallic elements and various alloy elements. The measurement results are accurate, with excellent reproducibility and long-term stability.
2. The structural design of the vacuum optical chamber makes the volume of the vacuum chamber smaller, and the vacuum pumping speed is less than half of that of ordinary spectrometers. Separating the entrance window from the vacuum chamber makes the daily cleaning and maintenance of the entrance window convenient and fast.
3. The optical system automatically scans the spectral lines and calibrates the optical path automatically to ensure the correctness of spectral line reception, eliminating the cumbersome peak scanning work.
4. The design of the excitation table and the argon gas circuit greatly reduces the consumption of argon. The flexible sample clamp design can meet the analysis of samples of various shapes and sizes at the customer's site.
5. Multi-matrix analysis can be realized without adding hardware facilities. Compared with photomultiplier tube spectrometers, it can greatly reduce the customer's usage cost and expand the usage scope.
6. Using the jet electrode technology. In the excitation state, an argon jet airflow will be formed around the electrode, so that the excitation point will not contact the outside air during the excitation process, improving the excitation accuracy.
7. The dedicated spectral operation software is fully compatible with the Windows system. At the same time, it can be equipped with various language versions according to customer requirements. The software is easy to operate. Even people without any spectrometer knowledge or operation experience can start using it after simple training.
8. Using high-performance FPGA, DSP and ARM processors, it has ultra-high-speed data acquisition and analysis functions, and can automatically monitor and control the operating conditions of modules such as the optical chamber temperature, vacuum degree, argon pressure, and excitation light source in real time.
9. The all-digital plasma excitation light source releases ultra-stable energy to excite samples in an argon environment. The all-digital excitation pulse ensures ultra-high resolution and high-stability output of the plasma energy of the excited samples, meeting the excitation requirements of various different materials.
10. The sample excitation table uses a copper spark table base and a tungsten electrode; the copper spark table base provides good heat dissipation and firmness for the excitation table. At the same time, the long service life and high-temperature resistance of the tungsten electrode also improve the excitation performance; the design of the electrode self-purging function creates a good environment for excitation and makes it easier to clean the electrode of the excitation table. and clock parts manufacturing Spectral analyzer Technical parameters:
Wavelength range: 130~800nm
Focal length: 400mm
Grating ruling: 3000 lines/mm
CCD pixel resolution: 6pm
Electrode: Tungsten spray electrode
Analysis gap: Sample stage analysis gap: 4mm
Excitation frequency: 100-1000Hz
Discharge current: 400A
Vacuum system: Automatically controlled and monitored by vacuum software
Instrument dimensions: 720*860*500
Instrument weight: Approximately 100kg (excluding vacuum system)
Detection time: Depending on the sample type, generally around 25S
Detector: High-performance CCD array, 3,648 pixels per CCD
Optical structure: Paschen-Runge Rowland circle full-spectrum vacuum optical system
Light source type: Brand-new adjustable digital light source, High Energy Pre-Spark technology (HEPS)
Analysis matrix: 13 matrices including iron-based, copper-based, aluminum-based, nickel-based, cobalt-based, magnesium-based, titanium-based, zinc-based, lead-based, tin-based, silver-based, manganese-based, and chromium-based
