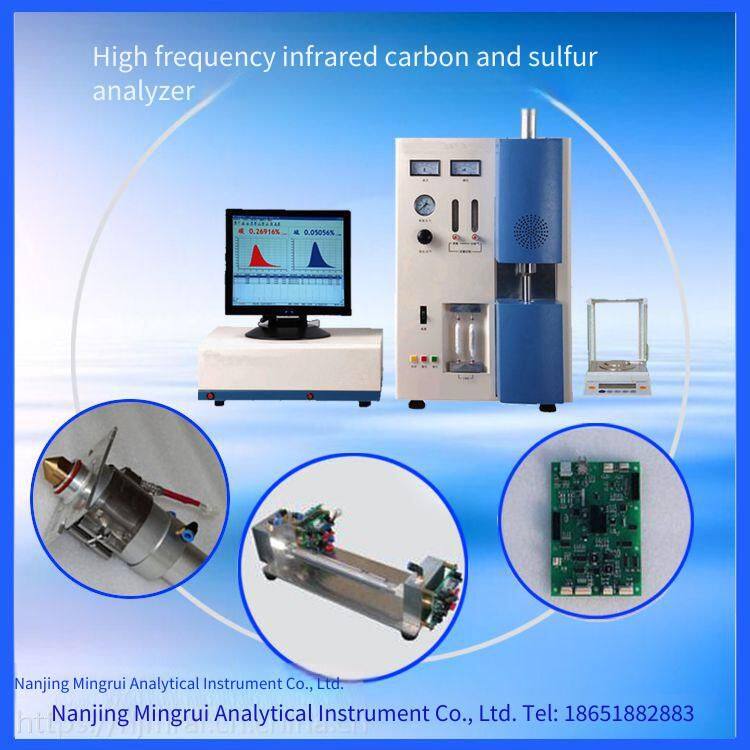

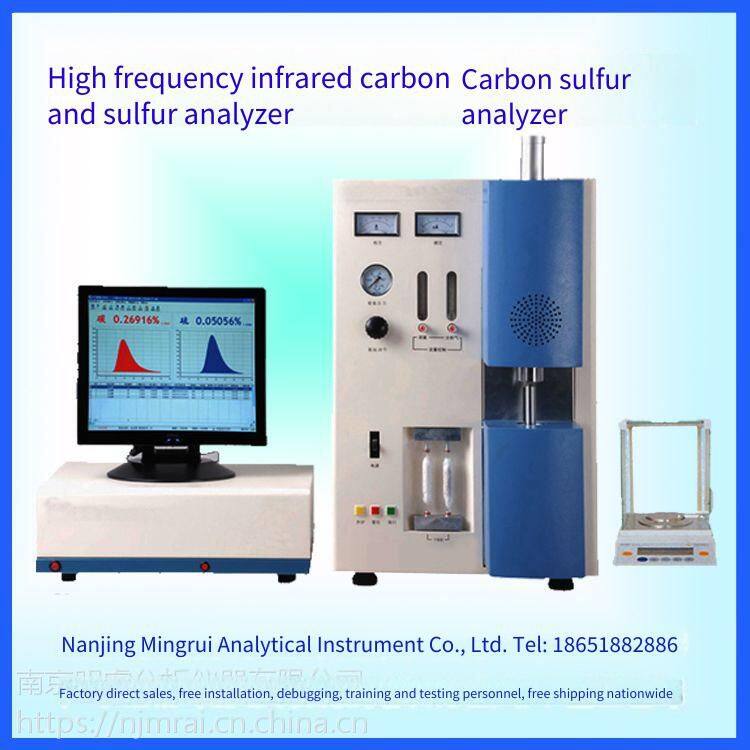

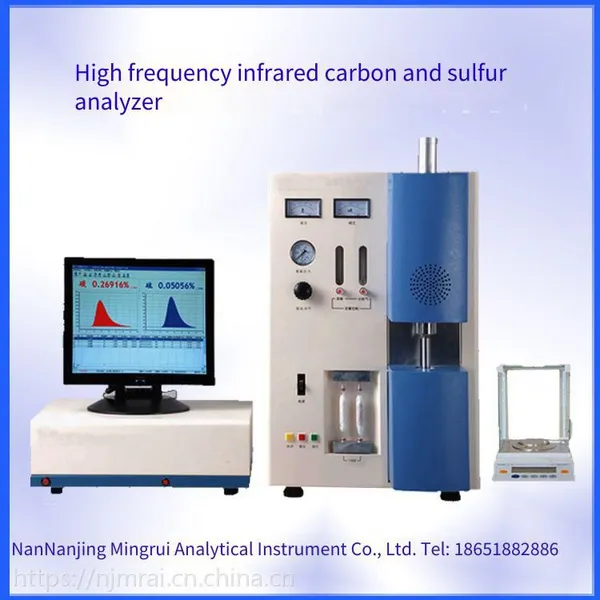

Nanjing Mingrui MR-CS99 Slag Lithium Battery Carbon and Sulfur Analyzer . For the analysis of ultra-low and relatively high content, double carbon and double sulfur cells are connected and automatically switched. Operated by computer software, it has powerful data statistics functions, and can be operated online, and perform online data transmission and reporting. It features a wide measurement range, strong anti-interference ability, complete functions, simple operation, and accurate and reliable analysis results. Phone: 18651882886 (WeChat ID).
Suitable for: new energy, metallurgy, machinery, mining, commodity inspection, nuclear industry, coal, automobile, shipbuilding, aviation, food, aerospace, building materials, universities, geology, petrochemical and other fields. It can quickly determine the mass fractions of carbon and sulfur in steel, new energy materials, rare earth metals, ferroalloys, magnetic materials, non-ferrous metals, carbides, ceramics, inorganic substances, precipitates, graphite, refractory materials, iron ores, catalysts, slags, cement, coal, coke, rocks and other materials.
Slag Lithium Battery Carbon and Sulfur Analyzer Technical Specifications and Indicators
1. Basic parameters: Instrument performance and accessories
Determined elements: Simultaneous determination of carbon and sulfur
Analysis principle: High-frequency furnace combustion - infrared absorption method for detection
Analysis range: Carbon: 0.0005%-6.0000% (can be extended to 99.999%), Sulfur: 0.0005%-0.3500% (can be extended to 99.999%)
Sample weighing (solid steel standard): Standard 0.5g
Analysis accuracy: Carbon: Complies with ISO9556 standard; Sulfur: Complies with ISO4935 standard
Sensitivity (reading): C/S: 0.1ppm
Analysis time: Adjustable from 20 - 100 seconds (usually 35 seconds)
High-frequency induction heating furnace:
1. Output power of the high-frequency furnace: 2200W; Frequency: 20MHz
2. Automatic leak detection, over-time and over-current alarm
3. Adjust the furnace temperature by current/voltage/power/selection method: Suitable for samples of different materials
4. Gas path: High-precision flow controller ensures stable air flow and imported gas path system
Dust filter: 0.4-micron ultra-microporous metal filter to ensure complete separation of dust and gas
Furnace head heating: Improve the conversion rate of sulfur and make the sulfur analysis results stable
Dust removal system: Automatic cleaning: Can reduce the influence of dust on the analysis results
Ash discharge system: High-pressure ash discharge to remove dust in the pipeline system:
1. Circuit design: The whole machine adopts a modular design of dual CPUs for the upper and lower computers. The lower computer selects Atmega162 as the control single-chip microcomputer. The electronic circuit is highly integrated, stable and reliable;
2. Sampling: It uses a high-speed 24-bit ADS1224 sampling chip with high sampling accuracy;
3. Communication: The upper and lower computers communicate through the USB2.0 interface, which greatly improves the communication speed;
4. Connection: The infrared detection part and the high-frequency furnace are connected by high-speed optical fibers, and cooperate with multi-stage concealed isolation circuits;
5. Power supply: Industrial-grade integrated linear module power supply with stable output;
6. Light source: A specially-made new platinum infrared light source with continuous heating and high spectral characteristic efficiency;
7. Analysis cell: Gold-plated carbon and sulfur analysis cell and high-precision pyroelectric infrared detector.
2. Analysis software
(1). Operation software: Compiled with Deliph software, it is a fully Chinese operation software for WINDOWS XP.
(2). Analysis channels: It provides channel management functions. Carbon and sulfur channels can be added, deleted and edited independently without any quantity limit.
(3). Analysis function: Dynamic data integration during the analysis process, sampling 20 times per second, which improves the sensitivity and accuracy of the analysis;
(4). It provides sample management functions, allowing editing of sample names and identifiers, and adding and deleting sample names;
(5). The software provides a multi-user management system, where administrators can set different user permissions.
(6). Display function: One curve box for carbon and sulfur respectively, dynamically displaying various real-time data and carbon and sulfur release curves during the analysis process.
(7). Data processing function: Analysis results are stored in the ACCESS database, which can store all data and curves of carbon and sulfur in each analysis;
(8). Analysis results can be queried freely, and can be queried according to multiple aspects such as time, operator, sample name, and identifier;
(9). It provides multiple functions such as curve/data storage, blank deduction, parameter setting, channel selection, mathematical statistics, result correction, and curve comparison;
(10). The generation of carbon and sulfur working curves can be realized in the software and curve fitting can be carried out.
(11). Printing function: There are diverse printing modes, providing two printing modes for the laboratory and the testing station, and the printing format can be designed independently.
(12). Self-diagnosis function: The system diagnosis function can detect the sealing performance of the furnace head and the gas chamber through the software.
