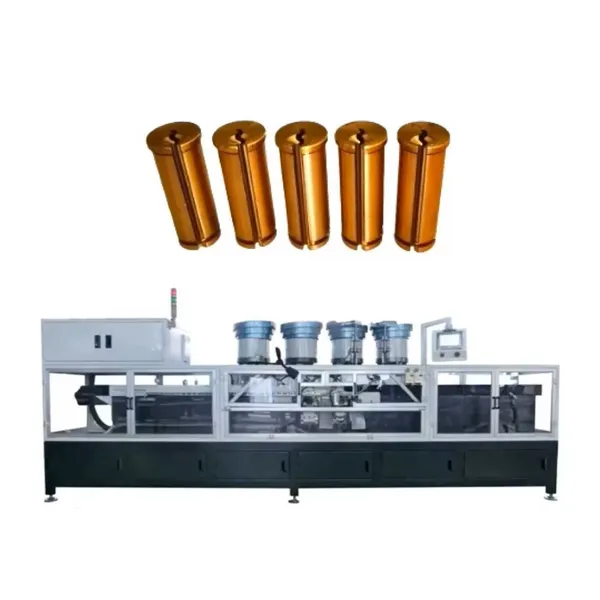

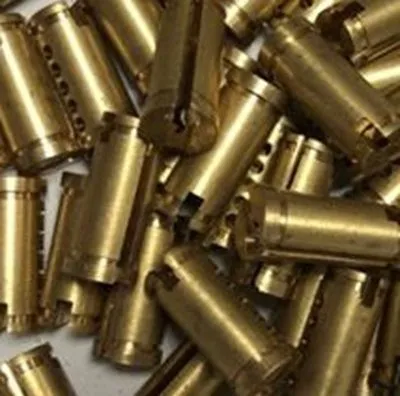

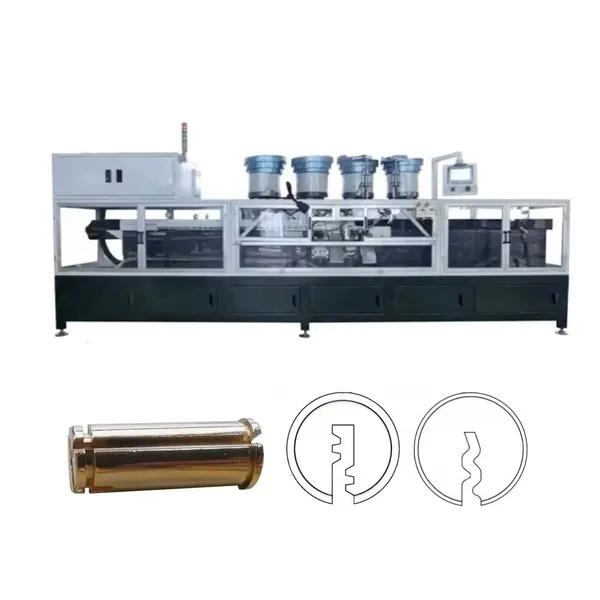

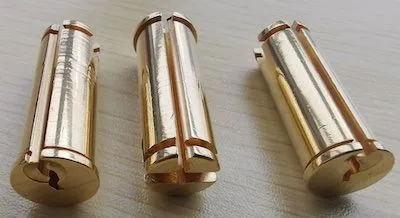

Cylinder Keyway Broaching Machine is a servo-motor and ball screw rod driving broaching machine, specially designed for processing the keyway on lock cylinder core or padlock rotors, for I-shaped-keys, S- shaped-keys and computer keys.
It has 4 vibrating feeders, 4 discharging chutes, double-side fixtures, each fixture can process 2 cores, each side can process different keyway by different type of segments. Segments move, fixtures don’t move, cores are held by fixtures. One cycle trip can processing 4 cores.
Features:
1. High accuracy, +/-0.02mm
2. High efficiency, 1850-2100 PC/H
3. Broaching Segments length: 12x100mm, or 6x200mm.
4. Power consumption: 6.0kW
5. PLC control
6. Touch screen setting and display, easy programing
7. Easy operating. Automatic loading (with vibrating feeder), automatic pneumatic feeding, automatic pneumatic clamping, automatic broaching, automatic discharging.
8. Core position check automatically.
9. Pressure insufficient, core stuck alarm automatically.
10. Speed adjustable by VFD.
11. Convenient adjustment for different sizes of cores.
12. Fast tool change-over system.
13. Dry processing, no need cooling system.
14. With chips collector.
15. Low noisy.
Specification |
SKBC4 |
SKBC2 |
Processable material |
Brass |
Brass |
processable diameter |
7-15mm |
7-15mm |
processable length |
25-60mm |
25-60mm |
Accuracy |
+/-0.02mm |
+/-0.02mm |
Efficiey |
1850-2100 Pcs/H |
875-1125 Pcs/H |
Power Consumption |
6.0Kw |
6.0Kw |
Dimesion |
4.4x0.9x1.6m |
3.8x0.9x1.6m |
Weight |
1800kg |
1300kg |
Required compressed air |
0.4-0.6MPa |
0.4-0.6MPa |
Remark: The final prices should be subject to the negotiated prices.
Send Inquiry to This Supplier
You May Also Like
-
Automatic Multi-station Biting Machines for Key Processing Key Making MachineUS$ 5000 - 10000MOQ: 1 Set
-
Key Making Tools Fresa Clave Cutter Tools Broaching Segments Drilling Reaming Tools for Lock IndustryUS$ 250MOQ: 1 Piece
-
Key Profile Milling Machine Key Making MachineUS$ 10000 - 11000MOQ: 1 Set
-
Automatic Multi-station SPOT KEY COMBINATION MILLING MACHINEUS$ 5000 - 10000MOQ: 1 Set
-
Key Making Machine Automatic Key Coining Machine Key Logo Coining MachineUS$ 10000 - 11000MOQ: 1 Set
-
Lock Making Machine Latch Forming Machine Latch Making Machine for Mortise and Rim LockUS$ 3000 - 6000MOQ: 1 Set
-
Lock Making Machine Automatic Latch Forming Machine Latch Making Machine With Drilling and Threading for Mortise and Rim LockUS$ 3000 - 9000MOQ: 1 Set
-
Lock Making Machine Padlock Body Drilling Machine SKPBD12 Lock Fabrication Equipment Lock Manufacturing EquipmentUS$ 6000 - 10000MOQ: 1 Set
-
Lock Making Machine Padlock Body Polishing Machine SKPS4 Lock Fabrication Equipment Lock Manufacturing EquipmentUS$ 20000 - 80000MOQ: 1 Set
-

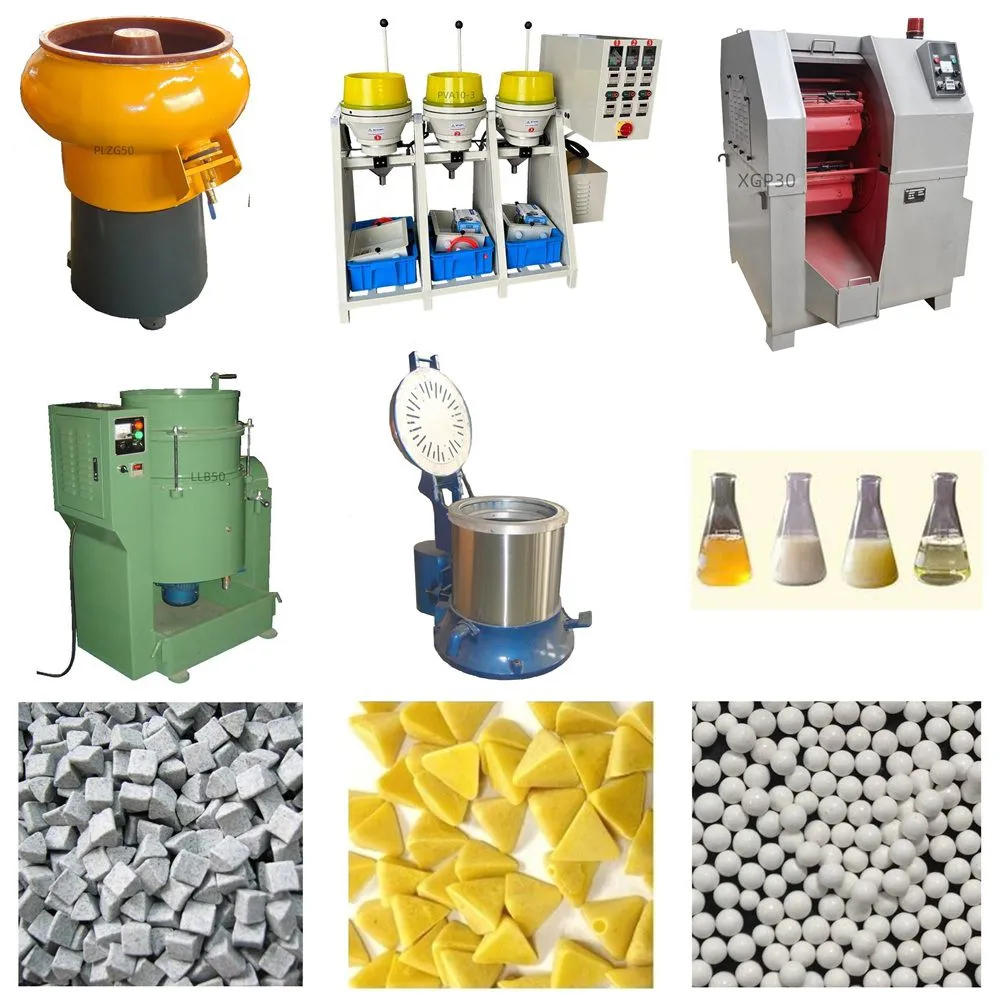

High Energy Precision Dry/Wet Centrifugal Disk Finishing Machine for Mass Finishing Jewelry PolishingUS$ 15000MOQ: 1 Set
