Automatic Multi-station padlock polishing MACHINE is designed to polishing surfaces of the padlock body.
It has multi-stations, can automatically polish surfaces of the padlock body after assembly.

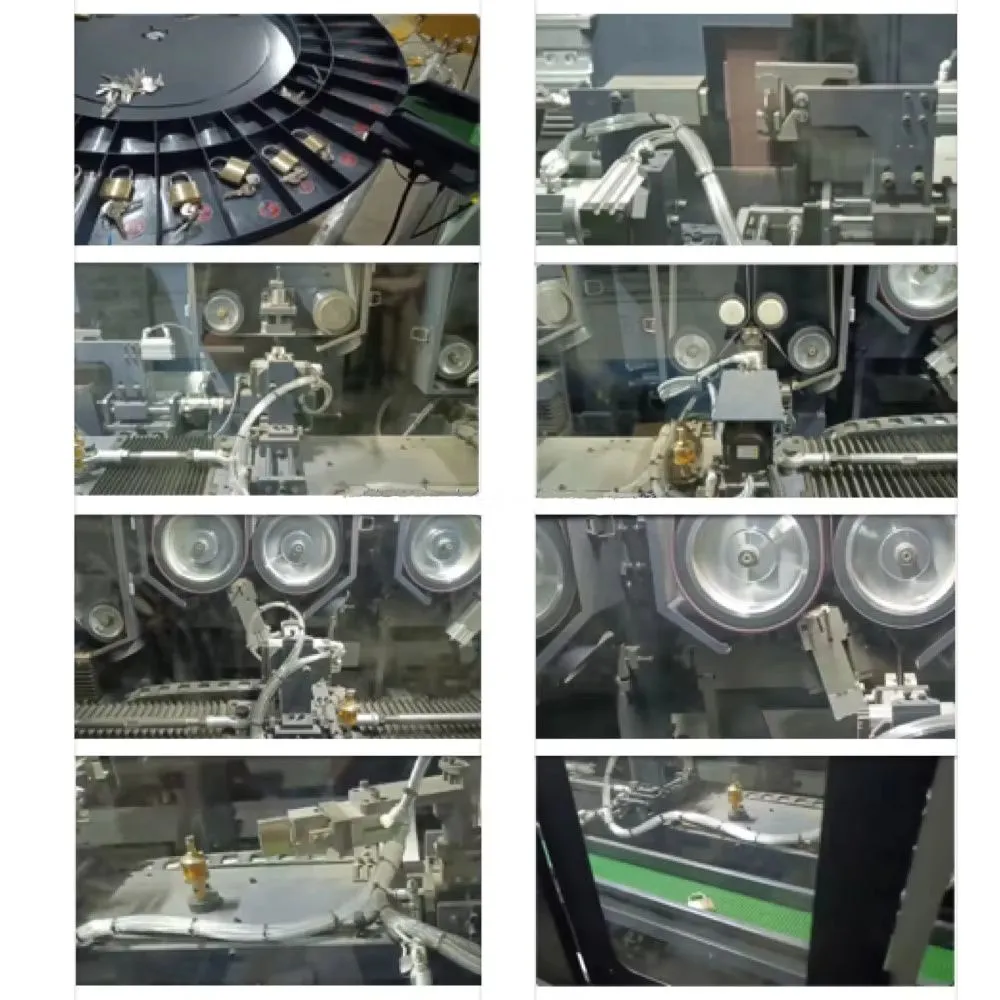

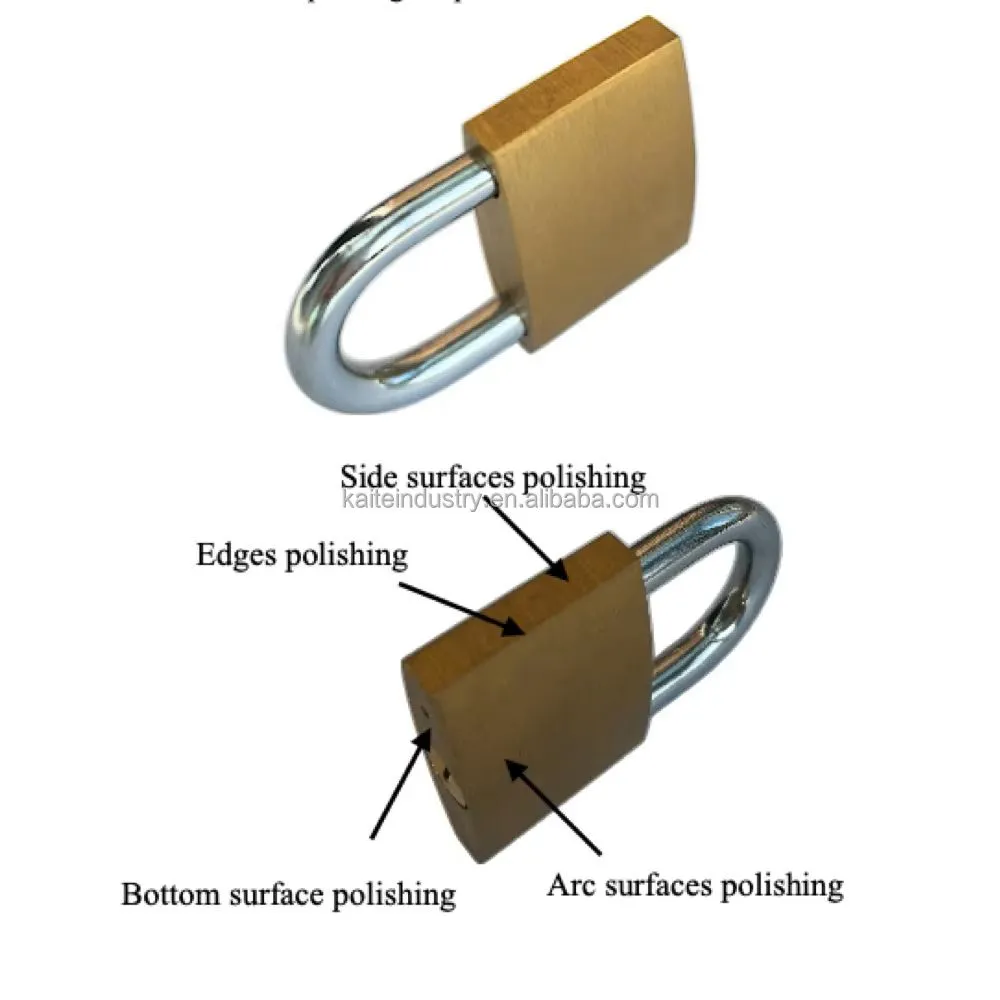

Multi Manipulators transfer the padlock from one station to next station and turn over for another surface polishing. Processing steps include bar stacker feeding, polishing of bottom surface, polishing of side surface, polishing of edges, heavy polishing arc face, fine polishing arc face, automatic unloading to round stock pan through a belt conveyor.
Features:
1/. PLC control, touch screen set and display.
2/. In-line parts transferring by manipulator
3/. Compact design
4/. Servo motor driving.
5/. Pneumatic clamping.
6/. Manipulator for transferring.
7/. High efficiency, low cost.
8/. Size adjustable, for different lock body.
9/. Operating simple.
Specification | |
Model |
SKPS4 |
Applicable material |
Brass, Aluminium, Zinc. |
Application |
Padlock body |
Working efficiency |
250-375pcs/hour |
Power consumption |
9.5kW |
Size, m |
4.45x 1.58 x 1.9m |
Weight, kg |
1900kg |
Reqired compressed air |
0.4-0.6MPa |
Remark: The final prices should be subject to the negotiated prices.
