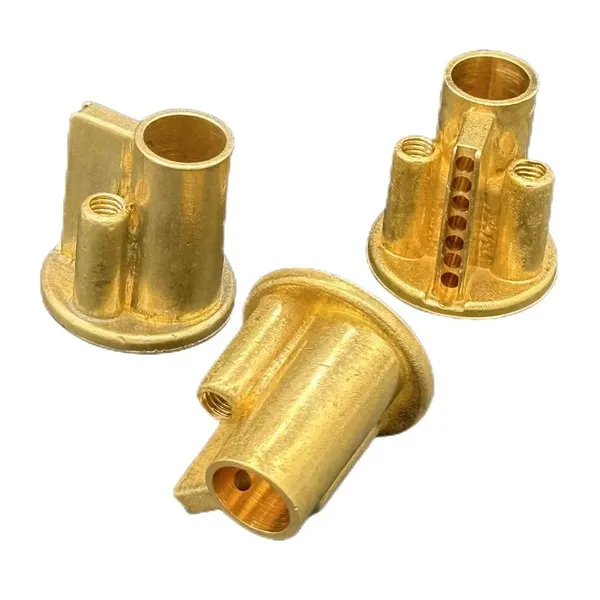

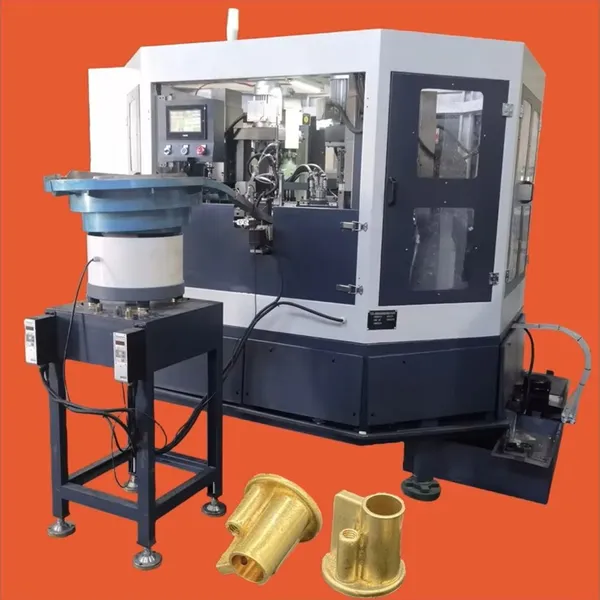

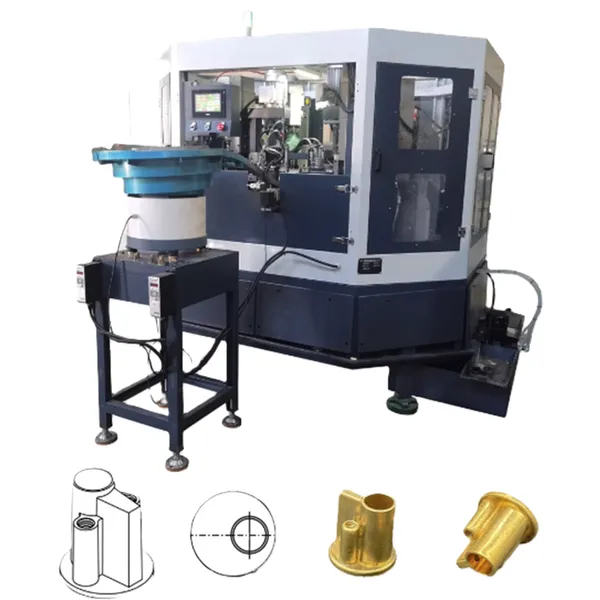

SKCC10/8 Automatic Index Multi-station Cylinder Cover Combination Machine is specially designed for cylinder cover processing. All stations can operate synchronously.
SKCC10/8 has multi-stations, with automatic loading, cylinder hole drilling, cylinder hole reaming, thread bottom holes drilling, threading, pinholes drilling, axis hole drilling, pinholes deburring, rear end milling and discharging, etc.
Features:
1. PLC & HMI control system.
2. Touch screen set and display machine commands, processing data, production statistics, error information, and trouble shooting guide.
3. Servo motor drives the ball screw rod and linear guide rail, and makes the products with high accuracy and stable quality.
4. Index rotary parts transfer from one station to next station.
5. Compact design, combining of all drilling, reaming, threading deburring and end milling processing into one unit.
6. High efficiency, low cost.
7. Accuracy +/-0.02mm.
8. Sizes adjustable, for different cylinders.
9. Operating simple.
Option: Vibrating feeder
Model |
SKCC10 |
SKCC8 |
Applicable material |
Brass,Zinc |
Brass,Zinc |
Application: |
Cylinder cover
|
|
Working efficiency, Pcs/8 hours |
2200-2600 |
2000-3000 |
Power consumption, kW |
16.00 |
12.00 |
Size, m |
2.3x2.1x2.3 |
2.33*1.82*1.9 |
Weight, kg |
2900.00 |
2050 |
