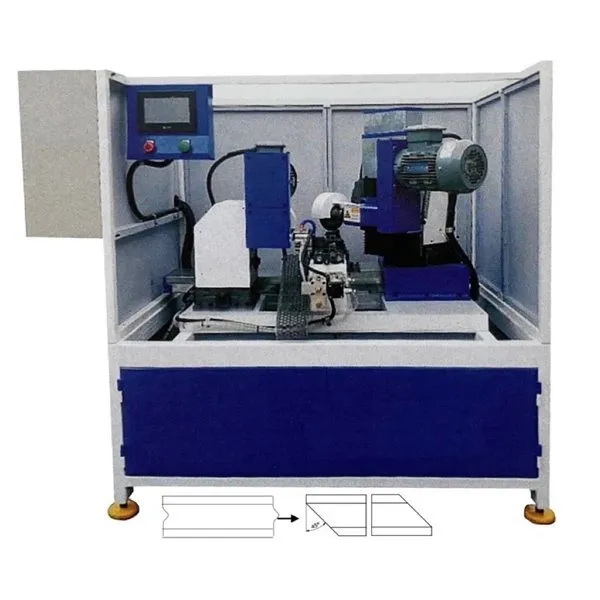

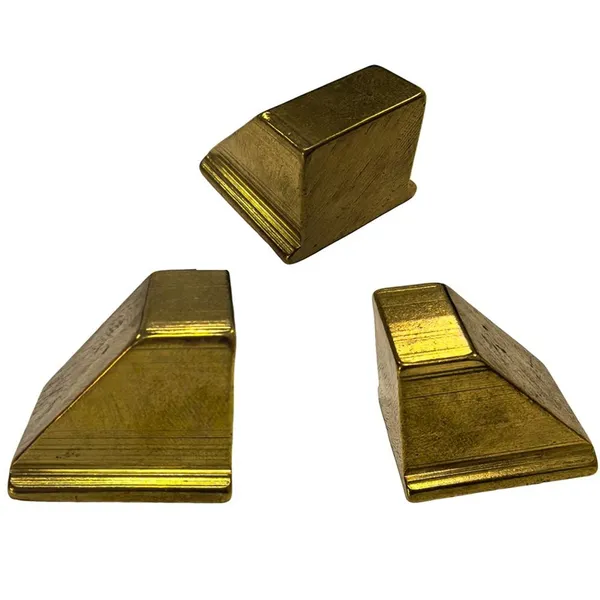

Automatic Lock Latch Forming Machine SKLF2 is specially designed for lock latch forming. It can automatically load long bar, cut out two latch one time, diagonal cutting, vertical cutting & mill two ends and discharge.
Features:
1. HMI & PLC control system.
2. Touch screen set and display machine commands, processing data, production statistics, error information, and trouble shooting guide.
3. Automatic loading, automatic clamping. The servo motor drives the ball screw rod and linear guide rail mechanism, transfers the parts from one station to next station, which making the products with high accuracy and stable quality.
4. Compact design, combining of cutting and milling into one unit.
5. Operating simple, with automatic long bar feeder, high efficiency, low cost.
7. Accuracy +/-0.05mm.
9. Pneumatic feed, pneumatic clamp, pneumatic discharge.
10. With external protection around the machine for the machine and operator safety.
Model |
SKLF2 |
Cutting Motor |
2 x 2.2 kW |
Servo motor |
3 x 0.75 kW |
Accuracy |
+/-0.05 mm |
Efficiency |
800~870 pcs/hour |
Processable material |
Brass, Aluminium, Cast iron |
Dimension LxWxH |
1.8 m x 1.2 m x 1.6 m |
Weight |
880 kg |
Required compressor air |
4~6 bar |
Remark: The final prices should be subject to the negotiated prices.
Send Inquiry to This Supplier
You May Also Like
-
Lock Making Machine Lock Brass Cylinder Forming Lathe Lock Barrel Forming Machine With Long Bar FeederUS$ 5000 - 10000MOQ: 1 Set
-
Lock Making Cylinder Combination Barrel Pinhole Drilling Tail Lateral Milling Tail Slot Milling Lock MakingUS$ 5000 - 10000MOQ: 1 Set
-
Automatic Multi-station Wave Key Double Side Bitting Machines Key Making MachineUS$ 5000 - 10000MOQ: 1 Set
-
Lock Making Automatic Lock Pin Lathe With Coil Feeder Lock Making Machine Pin Making MachineUS$ 10000 - 20000MOQ: 1 Set
-
Automatic Multi-station Biting Machines for Key Processing Key Making MachineUS$ 5000 - 10000MOQ: 1 Set
-
Key Making Tools Fresa Clave Cutter Tools Broaching Segments Drilling Reaming Tools for Lock IndustryUS$ 250MOQ: 1 Piece
-
Key Profile Milling Machine Key Making MachineUS$ 10000 - 11000MOQ: 1 Set
-
Automatic Multi-station SPOT KEY COMBINATION MILLING MACHINEUS$ 5000 - 10000MOQ: 1 Set
-
Key Making Machine Automatic Key Coining Machine Key Logo Coining MachineUS$ 10000 - 11000MOQ: 1 Set
-

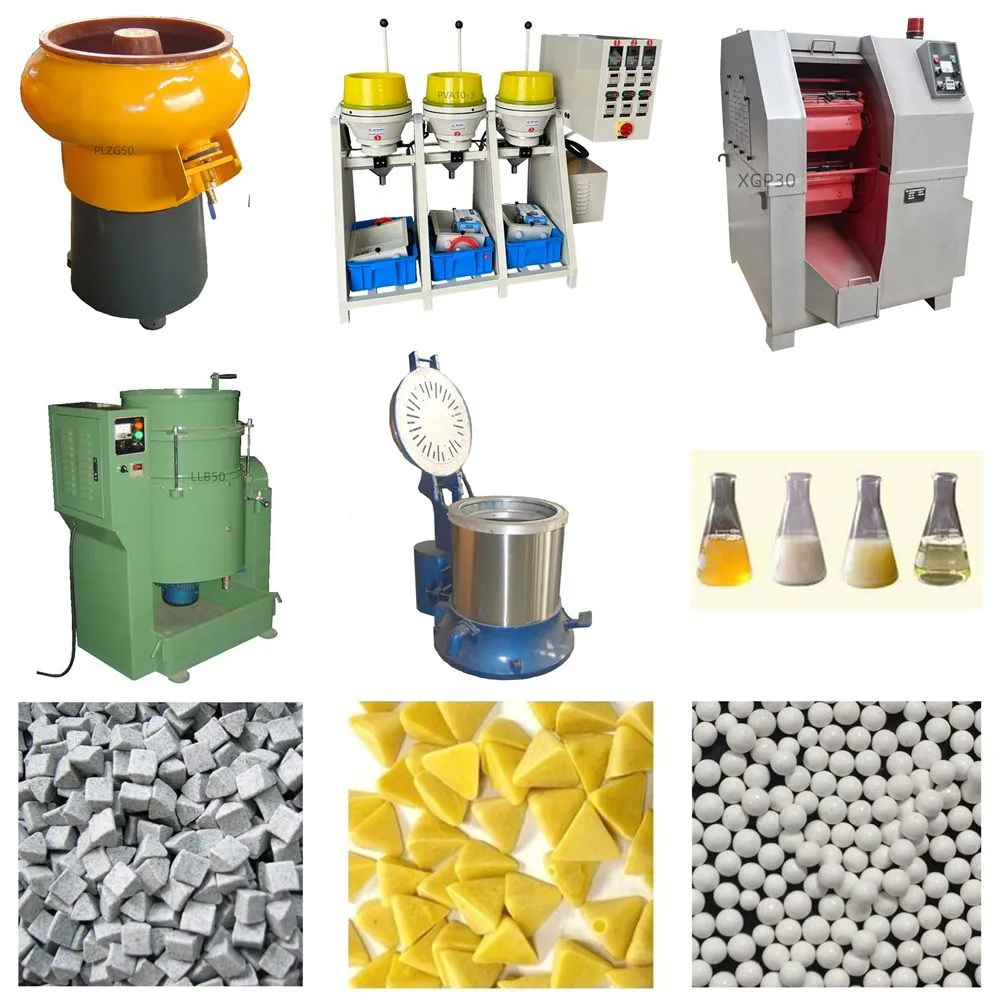

High Energy Precision Dry/Wet Centrifugal Disk Finishing Machine for Mass Finishing Jewelry PolishingUS$ 15000MOQ: 1 Set
