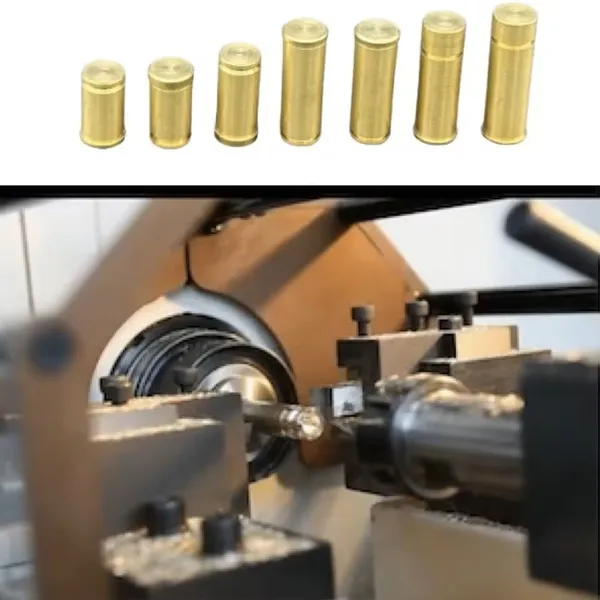

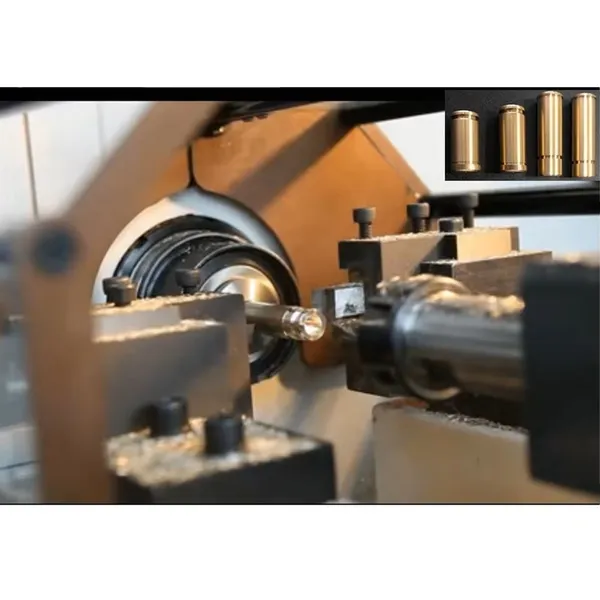

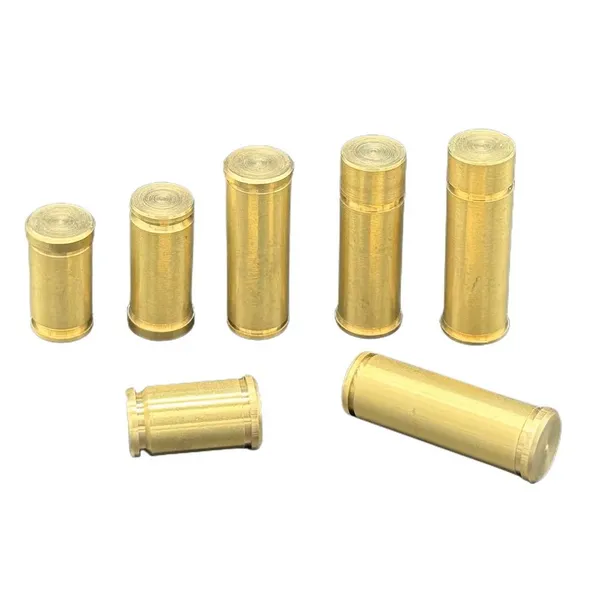

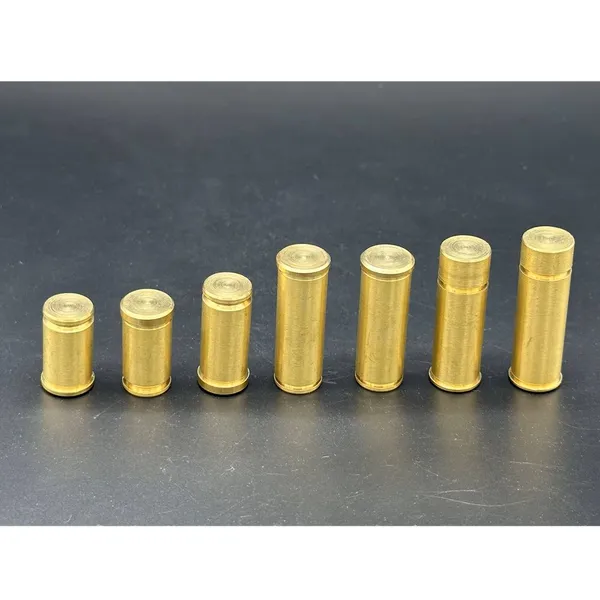

Brass Cylinder forming lathe SKJT21 Automatic Brass cylinder
forming lathe for locks and padlock with automatic bar feeder is
specially designed for manufacturing of brass cylinder of lock and
padlock with desired shape from brass bar automatically.
it is the necessary first process for the manufacture and processing of lock core.
It adopts oil-bath full-automatic feeding mode, loads 15-20 bars one loading, and can automatically feeds bars continually.
Features
High production speed, for example, can make out 13-18 pieces per minute for 30 mm long lock core.
High precision: +/- 0.015
With Touch screen and PLC/PC control, displays sets commends and displays and stores all processing programs.
Automatic feed, automatic forming, automatic discharging.
Model |
SKJT21 |
|
Spindle speed |
4500-6000r/min |
|
Chuck |
Pneumatic spring chuck |
|
Part Max rotary diameter |
17mm |
|
Max. machining length |
80mm |
|
Feed speed |
5mm/r |
|
Rapid feed speed |
1200-6000mm/min |
|
Processable lock cylinder size |
Diameter |
|
Long |
||
Processing speed |
12-18pcs/min |
|
Size Accuracy |
+/-0.015mm |
|
Concentricity ( for 80mm long max, diameter 17mm max) |
+/-0.016mm |
|
Power consumption |
3.5KW |
|
Control system |
PLC motion control |
|
Automatic feeder |
Motor: 0. 4KW |
|
Air compressor: ( user supplied) |
0.6Mpa, air hose ID6mm OD8mm |
|
