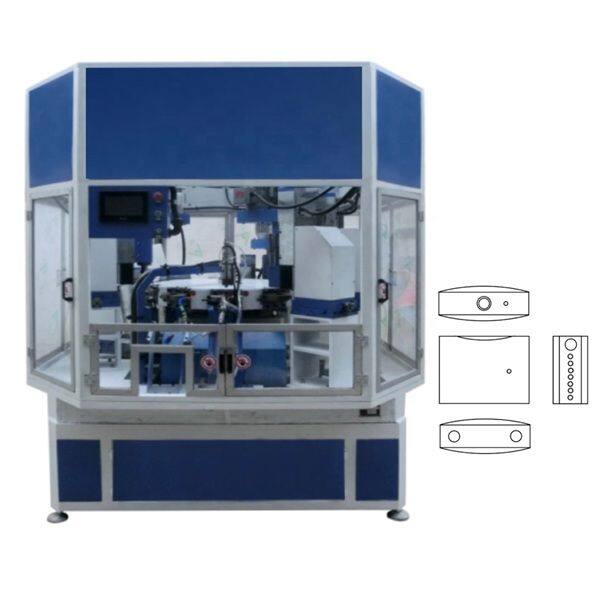

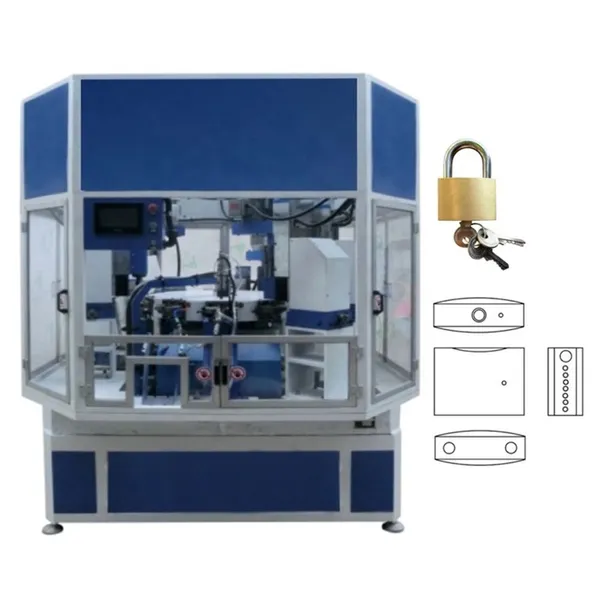

SKPBD12 Automatic Index Multi-station Drilling Combination Machine is specially designed for padlock
body drilling processing, all stations can operate synchronously.
Features:
1. Hydraulic index rotary transfer system transfers parts from one station to next. Once located, it ensures that the holes match and are accurate between each other.
2. Servo motor drives the ball screw and linear guide rail. NC controlling makes the products with high accuracy and stable quality.
3. PLC & HMI control system.
4. Automatic loading and unloading save a lot of lab cost.
5. High efficiency, low cost.
6. Accuracy +/-0.02mm.
7. Sizes adjustable, for different cylinders.
8. Operating simple.

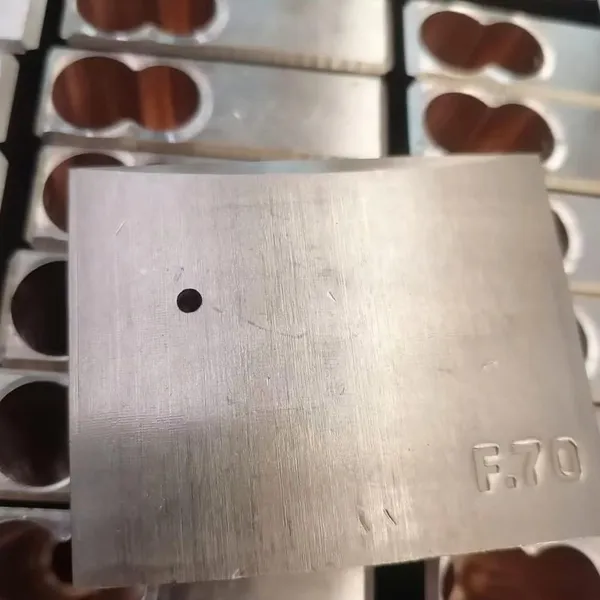

Process steps:
1. Auto part loading
2. Drill shackle retainer pin hole
3. Drill shackle holes
4. Drill latch hole
5. Drill cylinder hole
6. Ream shackle holes
7. Ream cylinder hole
8. Ream latch hole
9. Drill drain hole
10. Chamfer
11. Drill pin holes
12. Auto unloading
Model |
SKPBD12 |
Applicable material |
Brass,Iron, Zinc, Aluminium |
Application |

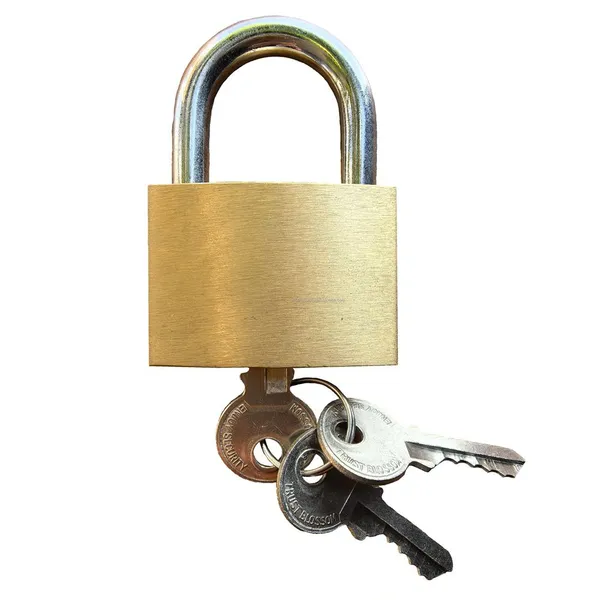

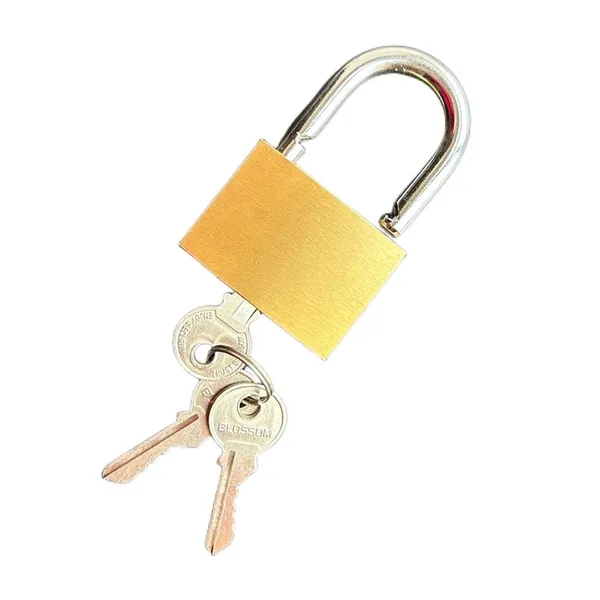

Square padlock, Arc-Padlock body, |
Application size |
20-75# |
Working efficiency, Pcs/ 8 hours |
3500-4000 |
Power consumption,kw |
7.0 |
Size, m |
2.3x2.1x2.3 |
Weight, kg |
3600 |
Required compress air, MPa |
0.4-0.6 |
Remark: The final prices should be subject to the negotiated prices.
