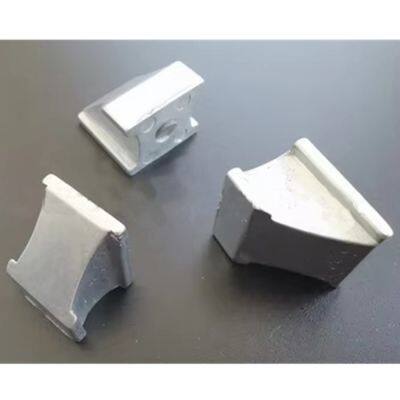

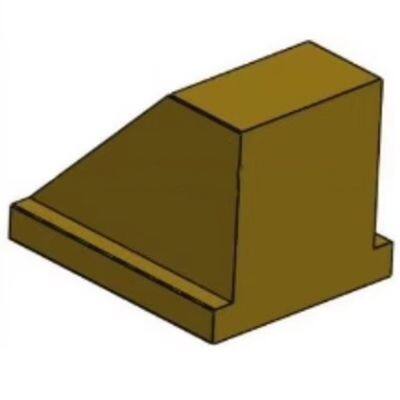

Help CenterLock Making Machine Automatic Latch Forming Machine Latch Making Machine With Drilling and Threading for Mortise and Rim Lock
Related Products
-
Lock Making Machine Padlock Body Drilling Machine SKPBD12 Lock Fabrication Equipment Lock Manufacturing EquipmentUS$ 6000 - 10000MOQ: 1 Set -
Lock Making Machine Padlock Body Polishing Machine SKPS4 Lock Fabrication Equipment Lock Manufacturing EquipmentUS$ 20000 - 80000MOQ: 1 Set
-
Lock Making Machine Cylinder Keyway Broaching Machine on Barrel Automatic Broaching Machine for Lock MakingUS$ 10000 - 60000MOQ: 1 Set
-
Lock Making Rotary Stations Transfer Machine Cylinder Cover House Combination Drilling Machine Lock Pin House Drilling MachineUS$ 5000 - 10000MOQ: 1 Set
-
Lock Making Machine Lock Brass Cylinder Forming Lathe Lock Barrel Forming Machine With Long Bar FeederUS$ 5000 - 10000MOQ: 1 Set
Remark: The final prices should be subject to the negotiated prices.

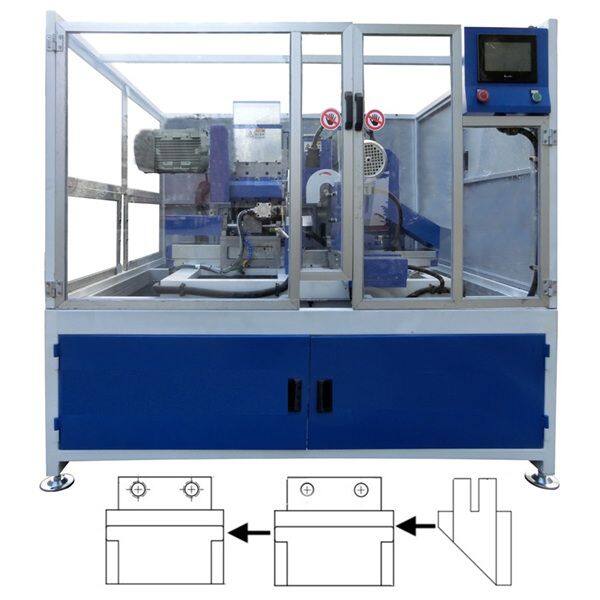

SKLMDT3 is specially designed for lock Latch milling, drilling and threading machine. can automatically load, mill slots, drilling, threading and discharge.
Features:
1/. HMI & PLC control system.
2/. Touch screen set and display machine commands, processing data, production statistics, error information, and trouble shooting guide.
3/. Automatic load, clamp. Servo motor driven ball screw rod and linear guid rail mechanism for parts transfer from one station to next station and for cutting feeding, which making the products with high accuracy and stable quality
4/. Compact design, combining of milling, drilling and threading into one unit.
5/. Operating simple, with automatic vibrating feeder, high efficiency, low cost.
7/. Accuracy +/-0.05mm.
9/. Pneumatic load, clamp and discharge .
10/.With external protection around the machine for the machine safety and operator safety.
11/. With vibrating feeder.
Model |
SKLMDT3 |
Milling motor |
2.2KW |
Drilling motor |
0.75KW |
Threading motor |
1.5KW |
Servo motor |
4 x 0.75KW |
Vibrating feeder |
0.45KW |
Accuracy |
+/-0.05mm |
Efficiency |
500pcs/hour |
Processable material |
Brass, Aluminium, Cast iron |
Dimension LxWxH |
1..9mx 1.85m x 1.65m |
Weight |
1100kg |
Required air compressor |
4~6 bar |
Remark: The final prices should be subject to the negotiated prices.
