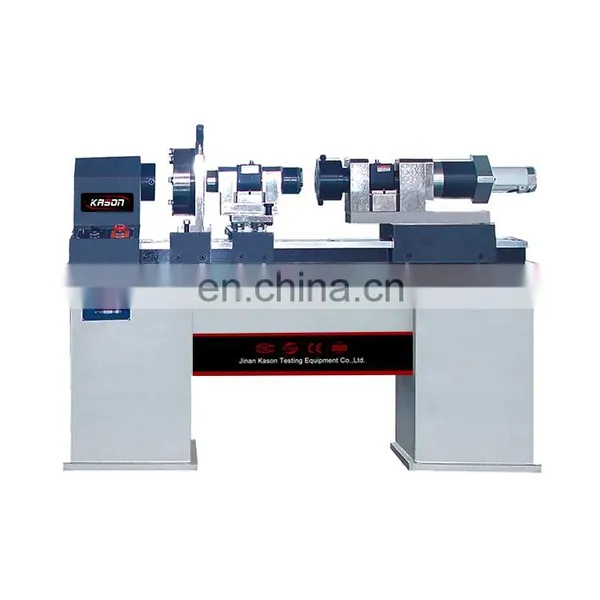

EZ-6 Wire Rod Torsion Testing Machineine
ALI: cn1510988092 Phone/whatsapp:+86-15866781190 Skype: hstbetty009
Application:
The metal wire torsion testing machine is suitable for measuring the ability of metal wire with a diameter (or characteristic size) of 0.1-6.0mm to withstand plastic deformation in one-way or two-way torsion and to display the surface and internal defects of the wire.
This machine is mainly used for the analysis of the mechanical properties of metal wires in the mechanics laboratories of colleges, universities, scientific research departments, and industrial and mining enterprises. It is also widely used for online inspection of production units; the main industries include high-speed steel lines, prestressed steel wire plants, and quality Supervision, scientific research institutes, highway transportation, construction industry, steel wire ropes, wires and cables, copper and copper alloy wires for electrified railways, copper contact wires and other production and use departments.
Features:
1. Mechanical structure: This model uses a high-performance AC motor as the power output, coupled with a high-precision geared motor, so that the power can be output smoothly. The motor is driven by a high-reliability and high-stability inverter, which improves the smoothness of machine operation and reduces power consumption. The chuck on one side is fixed on the output shaft of the motor, and the chuck on the other side is fixed on the movable bearing seat. The moving seat adopts linear bearing, which has low friction resistance and ensures the straightness of axial movement. The axial tension force is applied by weight, and the force is applied to the wire through a 10:1 L-shaped lever. In 2021, the whole machine is fully upgraded, the work surface is beautiful and anti-rust treatment, the chuck is electroplated, the controller hardware is upgraded, and the control program is optimized.
2. Control unit: The control system adopts imported Atmel microprocessor, which is independently developed by our company, combined with mature control methods, so that the control unit is guaranteed in terms of control accuracy and operational stability. The display screen uses industrial-grade LCD screen, which has the characteristics of long life, stable performance and wide viewing angle. The counter is a Hall sensor with strong anti-interference ability. The counter also has high sensitivity and good dynamic performance. This machine has the function of automatically judging wire breakage.
3.Main functions:
3.1 Humanized design of the control interface, different test states are intuitively visible;
3.2 Set different speeds arbitrarily, and the speed can be controlled in real time;
3.3 According to different test conditions, it can realize forward and reverse rotation, and the number of turns can be set;
3.4 The test break can be stopped immediately with small error;
3.5 Safety protection: It has protection functions such as overcurrent and overvoltage.
Technical parameter:
|
Model |
EZ-6 |
|
Loading method |
Autoload |
|
Display method |
LCD screen display |
|
metal wire diameter |
0.1≤d(D)<6.0 |
|
Space between two fixtures |
500mm |
|
Jaw clamping range |
0.1-5.0mm |
|
Clamping block hardness |
>55HRC |
|
Torsion speed |
30,60,90,120r/min(could be customized) |
|
Speed error |
<±5% |
|
Minimum reading value of turns |
0.1 |
|
Size (L * W * H) |
1250×430×600mm |
