Home > Instruments & Meters > Test Instrument > Test Machine > 500Nm Computer-Controlled Torsion Testing Machine for Metal and Non-Metal Materials With 1 Year Warranty

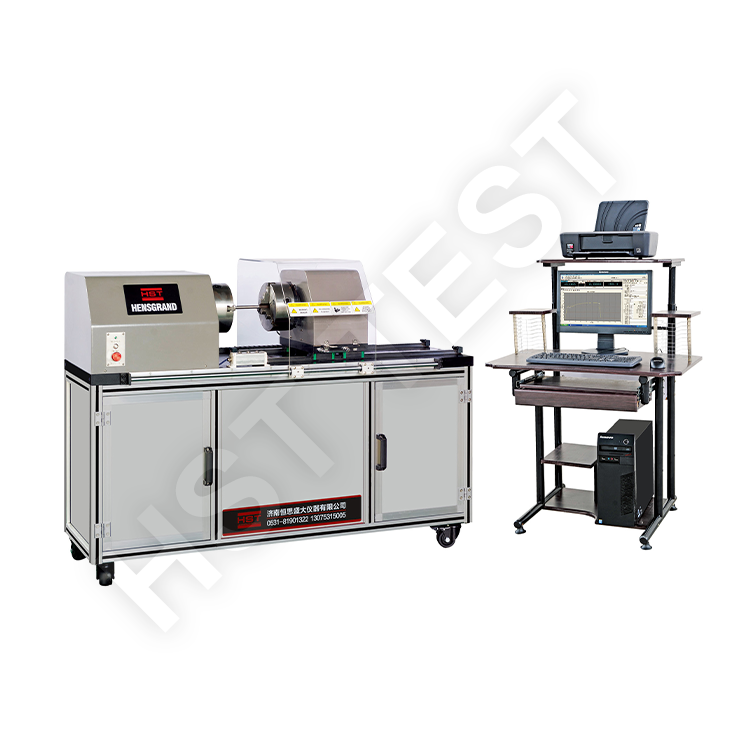

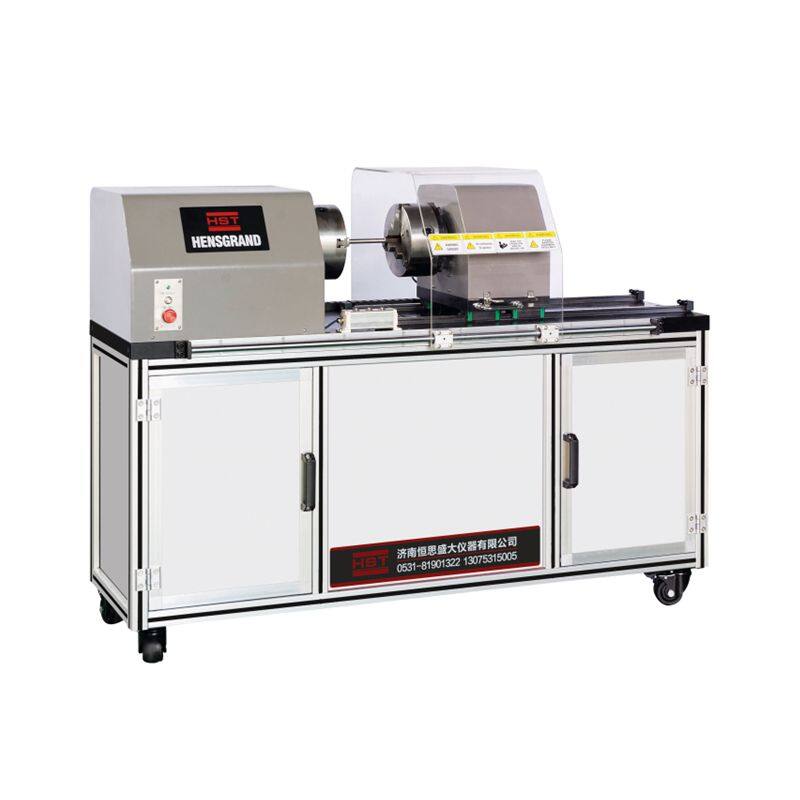

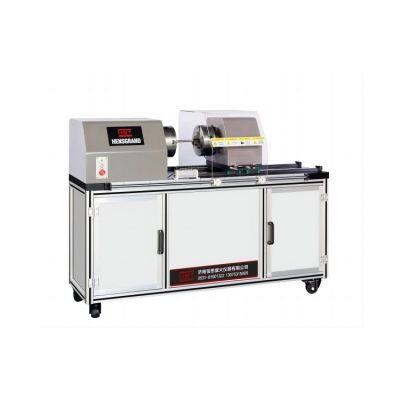

500Nm Computer-Controlled Torsion Testing Machine for Metal and Non-Metal Materials With 1 Year Warranty
US$ 39188.24
1 - 2 Set
US$ 37228.83
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.5%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High-Performance 200Nm Torsion Testing Equipment Computer-Controlled With Real-Time Data Processing 1 Year WarrantyUS$ 35129.46 - 35409.38MOQ: 1 Set -
ISO 7800/9649 EZ-3/10/20 0.1-20.0 mm Electric Wire Torsion Testing MachineUS$ 24492.65 - 27291.81MOQ: 1 Set
-
HST EZ-10 ISO 7800 10mm Metal Materials WIRE Torsion Testing MachineUS$ 2500 - 3500MOQ: 1 Set
-
HST Multifunctional Astm A938 Metallic Wire Material Torsion Testing Machine Torque TesterUS$ 59482.15 - 62281.31MOQ: 1 Set
-
NDW-2000 Electronic Cable Torsion Strength Testing Machine 2000N.M Wire Twist TesterUS$ 69979.00MOQ: 1 Set
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
250KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Computer Control Torsion Testing Machine
Model
NDW-500
Measuring range (Nm)
500
Torque Resolution (Nm)
0.05
Clearance between
500
Torque resolution
1/500000
Relative error of torque
±0.5%
Torque effective test
0.4%~100%FS
Products Description
Application
Torque test machines measure the torsional strength, stiffness and stress-strain properties of materials and products which are the ideal solution for biomedical,automotive, and aerospace applications. Torsional testing machines are used to simulate real life service conditions and to check product quality for products such as drill tool bit tips and medical devices, screws and other fasteners, wire, and much more. Get started by deciding if you need a static system or a dynamic fatigue system.
Model | NDW-200 | NDW-500 | NDW-1000 | NDW- 2000 | NDW-3000 | NDW-5000 | |||||
Measuring range (Nm) | 200 | 500 | 1000 | 2000 | 3000 | 5000 | |||||
Torque Resolution (Nm) | 0.02 | 0.05 | 0.1 | 0.2 | 0.5 | 0.5 | |||||
Clearance between grips(mm) | 500 | ||||||||||
Torque resolution | 1/500000 | ||||||||||
Relative error of torque | ±0.5% | ||||||||||
Torque effective test range(F·S) | 0.4%~100%F·S | ||||||||||
Resolution of torsion angle | 0.002° | ||||||||||
Test accuracy of torsion angle | ≤±0.5% | ||||||||||
Torsion speed | 0.01～1500°/min, Can be customized | ||||||||||
Relative error of torsion angle | ±0.5% | ||||||||||
Protection function | the tester has overload protection function | ||||||||||
Twist appendage | three jaw chuck type, two - way roof tightness | ||||||||||
