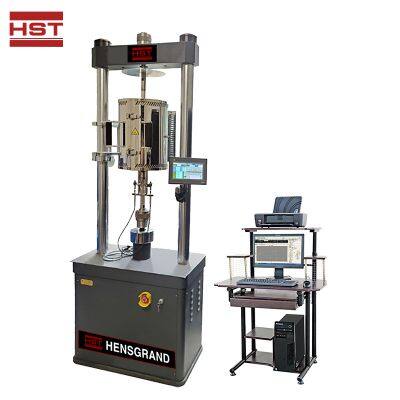

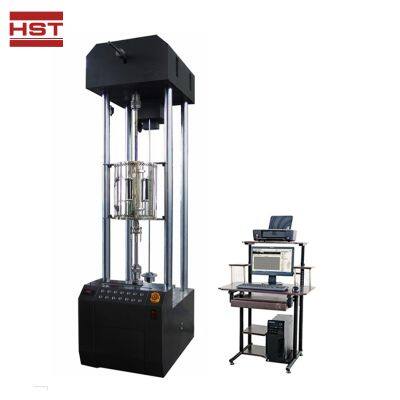

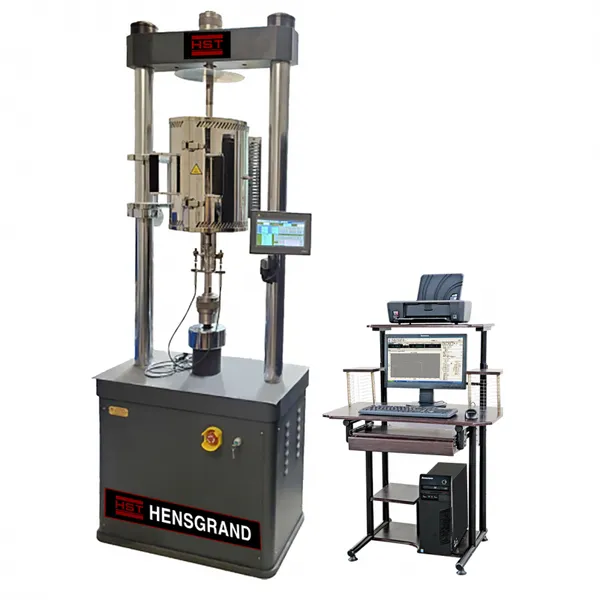

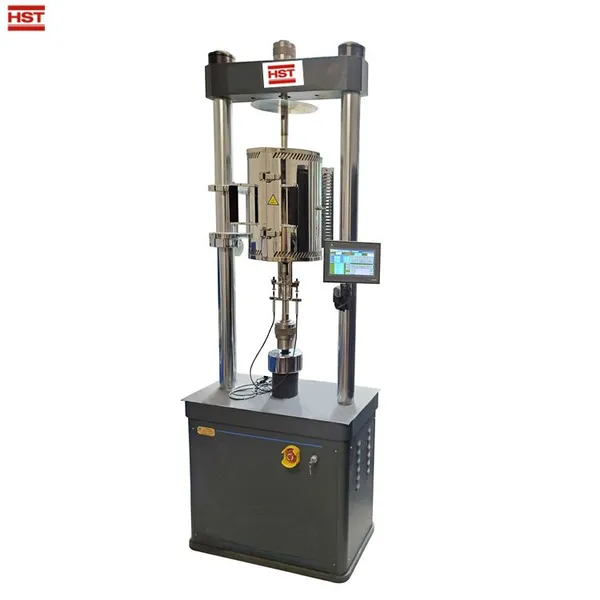

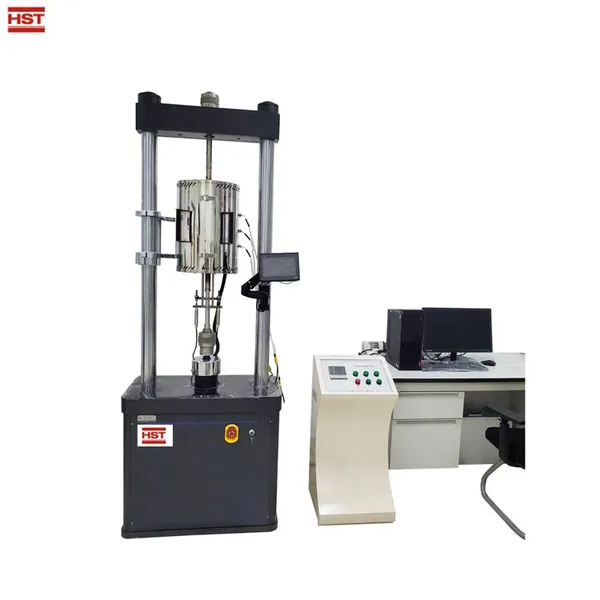

High Precision 30-200kN Electromechanical Creep Relaxation Testing Machine 1 Year Multi-functional Advanced Material Testing
US$ 146256.11
1 - 2 Set
US$ 143456.95
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.5%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Professional Advanced Pulse Control System Electromagnetic Resonance Fatigue Testing Machine With 1 Year WarrantyUS$ 409377.15 - 412176.31MOQ: 1 Set -
High-Precision Electromechanical Creep and Relaxation Testing Equipment Long-Term Material Tester With 1 Year WarrantyUS$ 129461.15 - 132260.31MOQ: 1 Set
-
250kN Upper Actuator Hydraulic Servo Fatigue Testing Machine With 1-Year Warranty for Dynamic TestingUS$ 782365.22 - 783183.98MOQ: 1 Set
-
HST-EFT20A 20KN Electronic Dynamic Fatigue Tester High-Performance Testing EquipmentUS$ 22000 - 29000MOQ: 1 Set
-
Hydraulic Servo Fatigue Testing Machine 250kN Upper Actuator for Dynamic Testing 1-Year WarrantyUS$ 782365.22 - 783183.98MOQ: 1 Set
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
250KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Creep Relaxation Testing Machine
Model
HST RDJ-200E
Load capacity (kN)
200
Calibration accuracy
Class 0.5
Load range
0.4%-100%FS
Load accuracy
≤±0.5% of indicating
Load fluctuation
±0.5%
Deformation measurement error
±0.001mm
Ttemperature range
200℃-1200℃
Products Description
Application
This series electronic creep stress rupture testing machine is mainly used for testing the mechanical properties of superalloys, titanium alloys, other ferrous metals and non-ferrous metals, and measuring the steady-state creep rate, creep limit, creep elongation, Permanent fracture time, permanent strength limit, permanent elongation after fracture, section shrinkage, permanent notch sensitivity coefficient. In addition to conventional creep and durability tests, stress relaxation tests, high-temperature short-time tensile tests, cyclic loading tests (load spectrum tests), and low-cycle cycles can also be performed.
Standard:
● ISO 204:1997, ASTM E 139-06
● Definition of individual step less sequences of temperature
● Ambient or elevated temperature
● For long term tests (reaching more than 10.000hrs)
● ISO 204:1997, ASTM E 139-06
● Definition of individual step less sequences of temperature
● Ambient or elevated temperature
● For long term tests (reaching more than 10.000hrs)
* Machine test and laborator
* ASTM D 6992 Creep Test of Geosynthetic Materials
● ASTM E1457 Creep-Crack Growth Test
● ASTM E1457 Creep-Crack Growth Test
* JJG276-2009 High-Temperature Creep and Stress-Rupture Testing Machines
* ASTM E139-11 Standard Test methods for Conducting Creep, Creep-Rupture and Stress-Rupture Tests of Metallic Materials
* ASTM E328-2013 Standard Test Methods for Stress Relaxation for Materials and Structures
* HB5151-1996 Test Method for High temperature tensile creep of metals
●HB5150-1996 Test Method for High temperature tensile rupture of metals
● ASTM E2714-2013 Standard Test Method for Creep-Fatigue Testing
* ASTM E139-11 Standard Test methods for Conducting Creep, Creep-Rupture and Stress-Rupture Tests of Metallic Materials
* ASTM E328-2013 Standard Test Methods for Stress Relaxation for Materials and Structures
* HB5151-1996 Test Method for High temperature tensile creep of metals
●HB5150-1996 Test Method for High temperature tensile rupture of metals
● ASTM E2714-2013 Standard Test Method for Creep-Fatigue Testing
MODEL | HST RDJ-30E | HST RDJ-50E | HST RDJ-100E | HST RDJ-200E | |||
Load capacity(kN) | 30 | 50 | 100 | 200 | |||
Calibration accuracy | Class 0.5 | ||||||
Load range | 0.4%-100%FS | ||||||
Load accuracy | ≤±0.5% of indicating | ||||||
Load fluctuation | ±0.5% | ||||||
Absolute resolution | 1/500000 (the whole resolution remains unchanged) | ||||||
Loading Speed(mm/min) | 0.001～100mm/min (stepless speed regulation) | ||||||
Deformation measuring range | 0～10,0～12,0～15,0～25mm(optional) | ||||||
Deformation measurement error | ±0.001mm | ||||||
Deformation measurement resolution | 0.001mm | ||||||
Ttemperature range | 200℃-1200℃ | ||||||
Temperature fluctuation | 200～600:±2 °C; 600～800:±3°C; ≥900:±3 °C | ||||||
Effective soaking zone length | 150mm,180mm, 200mm(optional) | ||||||
