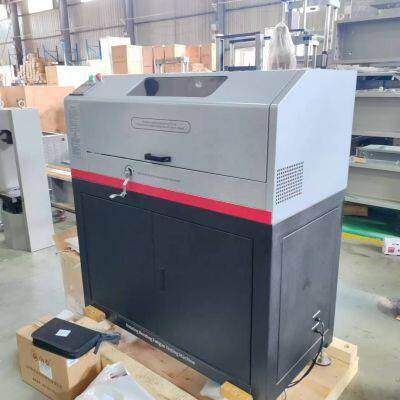

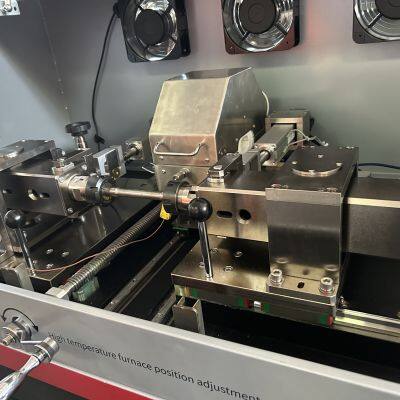

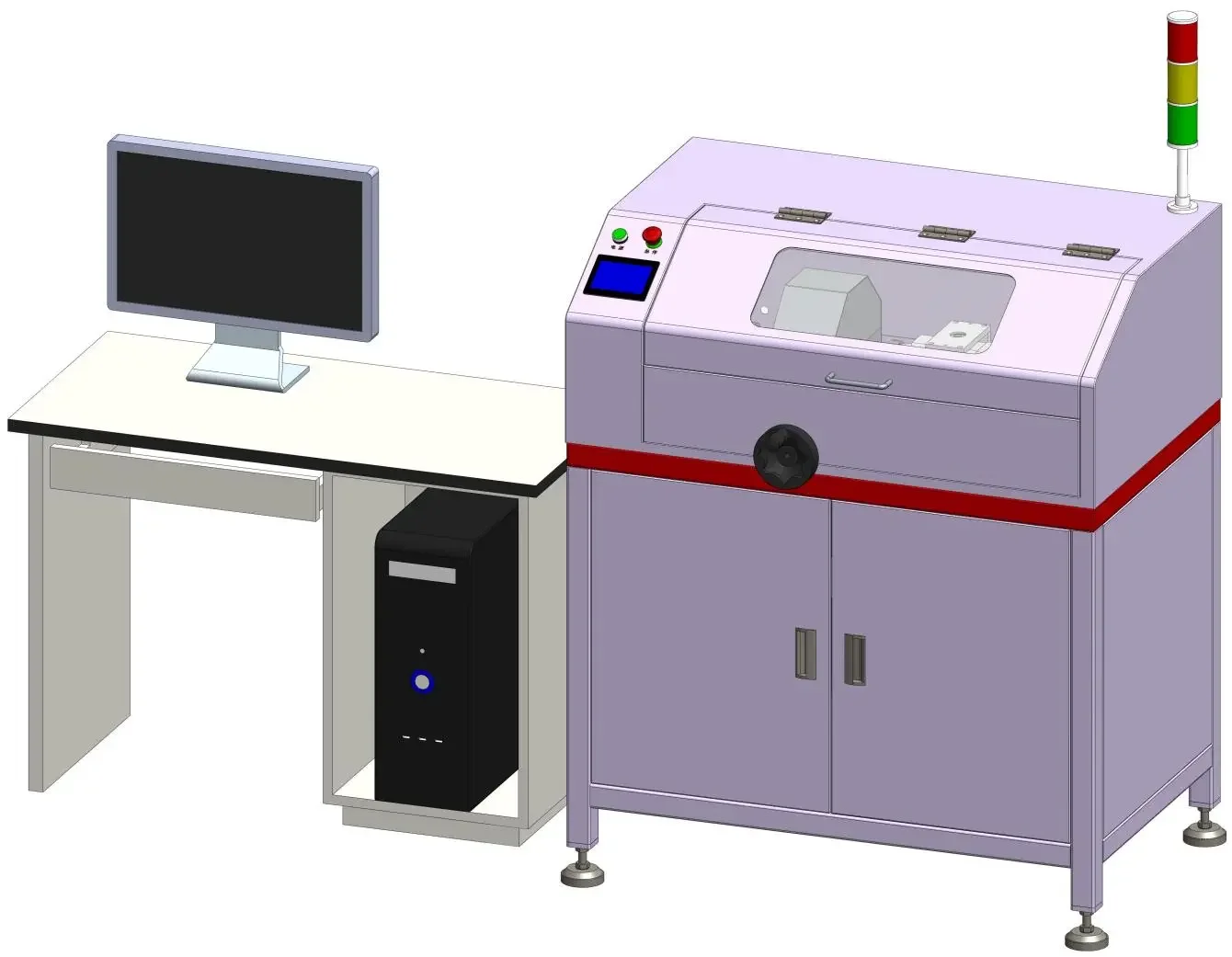

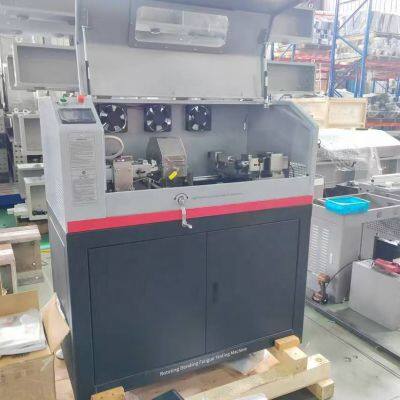

Help CenterHST 200 ~ 800℃ High Temperature Touch Screen Control Rotating Bending Fatigue Testing Machine
Related Products
-
HST HB5152-1996 and HB5153-1996 Touch Screen Control Rotating Bending Fatigue Testing MachineUS$ 335899.20 - 349895.00MOQ: 1 Set -
HST-EFT20A 20KN Electronic Dynamic Fatigue TesterUS$ 10000 - 15000MOQ: 1 Set
-
HST K1C ASTM E399 1000kN Laboratory Computer Control Electro-Hydraulic Universal Fatigue Testing MachineUS$ 1294611.50 - 1301609.40MOQ: 1 Set
-
HST 100kn ASTM E606 Low Cycle Fatigue Test Computerized Dynamic and Static Load Hydraulic Servo Tensile Fatigue MachineUS$ 349895.00 - 384884.50MOQ: 1 Set
-
HST-HFT50B 50KN Dynamic ASTM E647 Fatigue Crack Growth Rates Fatigue TesterUS$ 50000 - 60000MOQ: 1 Set

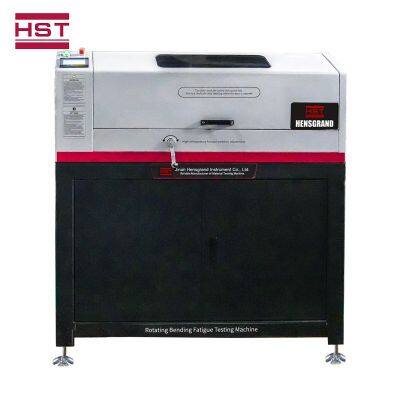

HSTBF-102H PLC Touch Screen Control Rotating Bending Fatigue Testing Machine
1. Function
Rotary bending fatigue testing machine, with the following functions:
l Meet the requirements of four-point tensile test of cylindrical specimen of GB/T 4337-2015, and carry out the test;
l Can be tested at high temperature or normal temperature;
l Servo motor drive, speed stepless adjustment;
l Counting function, accurately record the number of sample rotation;
l Servo motor loading, force sensor to measure the loading force (moment);
l The test speed can be changed during operation;
l The loading force (bending moment) can be changed during operation;
l Automatically shut down after sample failure and save data;
l Calculate and process data, generate and print test reports.
2. Applicable standards:
(1)GB/T 4337-2015 "Rotating Bending Method for Fatigue test of Metal Materials"
(2)GB/T 2611-2007 "General Technical Requirements for Testing Machines"
(3) HB5152-1996 "Metal Room Temperature Rotational Bending Fatigue Test Method"
(4) HB5153-1996 "Metal High Temperature Rotational Bending Fatigue Test Method"
3. Main technical parameter
|
MODEL |
HSTBF-102H |
|
Maximum speed |
6000r/min |
|
Loading torque |
100Nm |
|
Loading lever |
125mm |
|
Loading force |
80N ~ 800N |
|
Loading force resolution |
0.05N |
|
Relative error of loading force |
≤±0.5% |
|
Force value variation during operation |
≤±2% |
|
Continuous operating Temperature range |
200 ~ 800℃ |
|
Average temperate zone length |
30mm |
|
Temperature gradient |
≤15℃ |
|
Power: Main rotary motor |
850W |
|
Loading motor |
100W×2 |
|
Heating furnace |
1kW |
|
Voltage and frequency |
220VAC,60Hz,Single Phase |
|
Main machine dimensions (width × depth × height) |
1100×700×1310mm |
|
Model |
HWS-50 |
HWS-100 |
HWS-200 |
HWS-250/HWS-500 |
|
|
Load Capacity(kN) |
Static |
50 |
100 |
200 |
250/500 |
|
Dynamic |
±40 |
±80 |
±160 |
±160 |
|
|
Measurement Accuracy |
Load |
±1.0% of Reading |
|||
|
Displacement |
±1.0% FS of Each File |
||||
|
Deformation |
±1.0% of Reading |
||||
|
Function Generator Range Of Frequency |
0.001~50 Hz |
||||
|
Stroke of Piston(mm) |
±50 |
±50 |
±75 |
±75 |
|
|
Distance Between Columns |
500mm |
565mm |
700mm |
700mm |
|
|
Distance Between Grips |
50~600mm |
||||
