Professional Advanced Pulse Control System Electromagnetic Resonance Fatigue Testing Machine With 1 Year Warranty
US$ 412176.31
1 - 2 Set
US$ 409377.15
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.5%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High-Precision Electromechanical Creep and Relaxation Testing Equipment Long-Term Material Tester With 1 Year WarrantyUS$ 129461.15 - 132260.31MOQ: 1 Set -
250kN Upper Actuator Hydraulic Servo Fatigue Testing Machine With 1-Year Warranty for Dynamic TestingUS$ 782365.22 - 783183.98MOQ: 1 Set
-
HST-EFT20A 20KN Electronic Dynamic Fatigue Tester High-Performance Testing EquipmentUS$ 22000 - 29000MOQ: 1 Set
-
Hydraulic Servo Fatigue Testing Machine 250kN Upper Actuator for Dynamic Testing 1-Year WarrantyUS$ 782365.22 - 783183.98MOQ: 1 Set
-
HST-HFT100A 100kN High-Dynamic Hydraulic Servo Fatigue Testing Machine 1-Year Warranty for Material & Component TestingUS$ 692792.10 - 699790.00MOQ: 1 Set
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
250KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Electromagnetic Resonance Fatigue Testing Machine
Model
PLG-200C
Load capacity (kN)
200
Load capacity for dynamic (kN)
±100
Load measuring range
1%-100%FS
Frequency
50~250hz
Relative error of static load
≤±1%
Max. distance between grips(mm)
700
Max. distance between columns
600
Products Description
Application

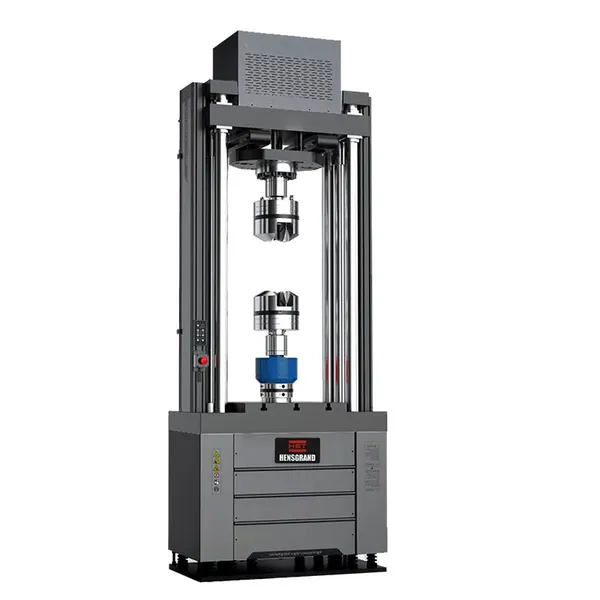

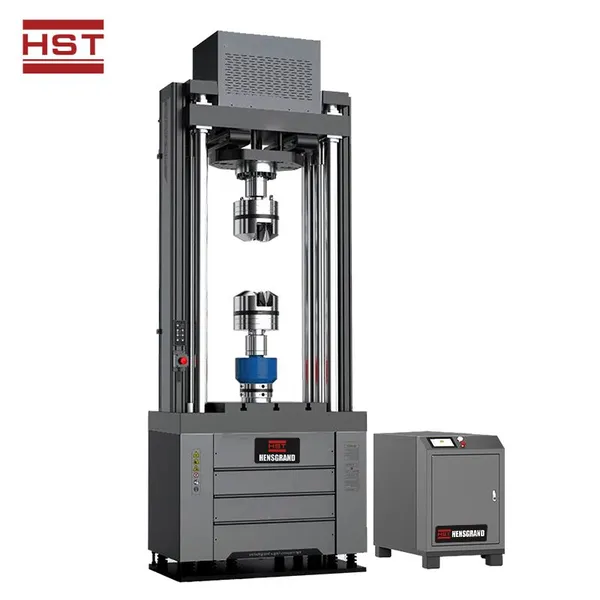

PLG Series Electromagnetic Resonance Fatigue Testing Machine is used for fatigue tests on metallic materials and components under tension, compression or reversal load.
Equipped with relevant grips, three-point bending test, four-point bending test, tension and compression of sheet sample test,tension and compression of circle test, gear wheel, bolt, connecting rod, roller chain, crackle expanding tests can be done on this machine. The series of testing machines undergo optimization design, the structure is rational. The automatic controlled system adopts the advanced pulse wide control system and new-type power amplifier to improve the reliability of the electric system .
It has high efficiency, easy to shake, no-stop shake, low energy consummation, high controlling accuracy, small fluctuation. The machine is complied with DIN50100.
Equipped with relevant grips, three-point bending test, four-point bending test, tension and compression of sheet sample test,tension and compression of circle test, gear wheel, bolt, connecting rod, roller chain, crackle expanding tests can be done on this machine. The series of testing machines undergo optimization design, the structure is rational. The automatic controlled system adopts the advanced pulse wide control system and new-type power amplifier to improve the reliability of the electric system .
It has high efficiency, easy to shake, no-stop shake, low energy consummation, high controlling accuracy, small fluctuation. The machine is complied with DIN50100.
Model |
PLG-20C |
PLG-50C |
PLG-100C |
PLG-200C |
PLG-300C |
PLG-500C |
|||||
Load capacity (kN) |
20 |
50 |
100 |
200 |
300 |
500 |
|||||
Load capacity for dynamic (peak value)(kN) |
±10 |
±25 |
±50 |
±100 |
±150 |
±250 |
|||||
Load measuring range |
1%-100%FS |
||||||||||
Testing machine accuracy |
Static indication accuracy: ±0.5% Dynamic loading accuracy: ±1% |
||||||||||
Frequency |
50~250hz |
||||||||||
Relative error of static load |
≤±1% |
||||||||||
Load fluctuation |
1%F-S |
||||||||||
Max. distance between grips(mm) |
500 |
500 |
500 |
700 |
700 |
600 |
|||||
Max. distance between columns |
450 |
500 |
500 |
600 |
600 |
600 |
|||||
Power Supply |
AC220V±10%, 50HZ |
||||||||||
