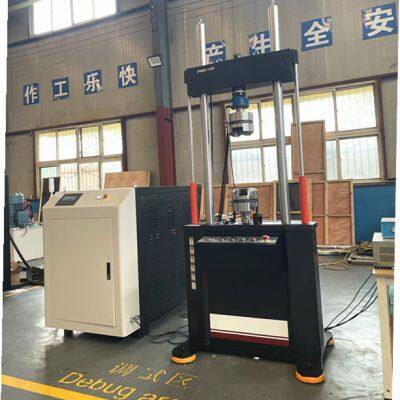

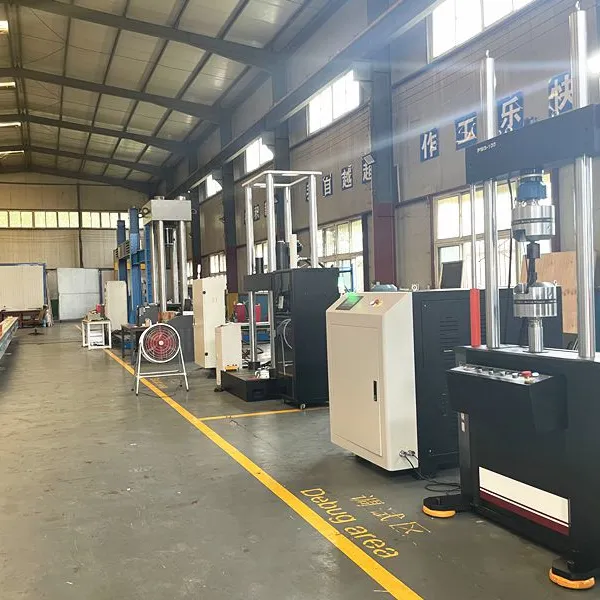

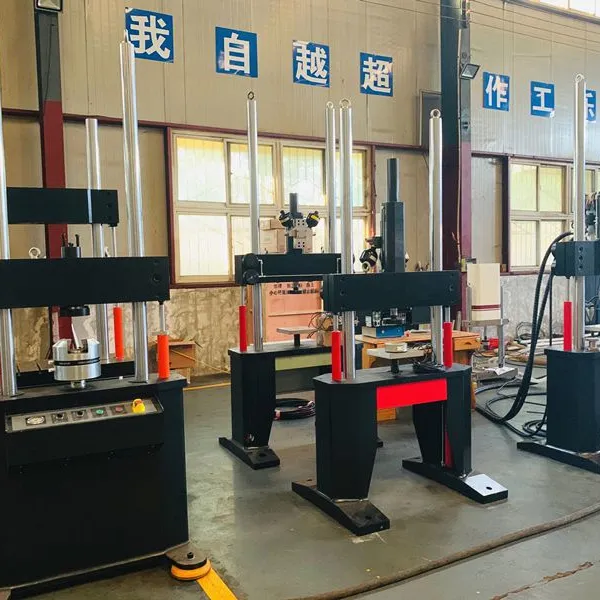

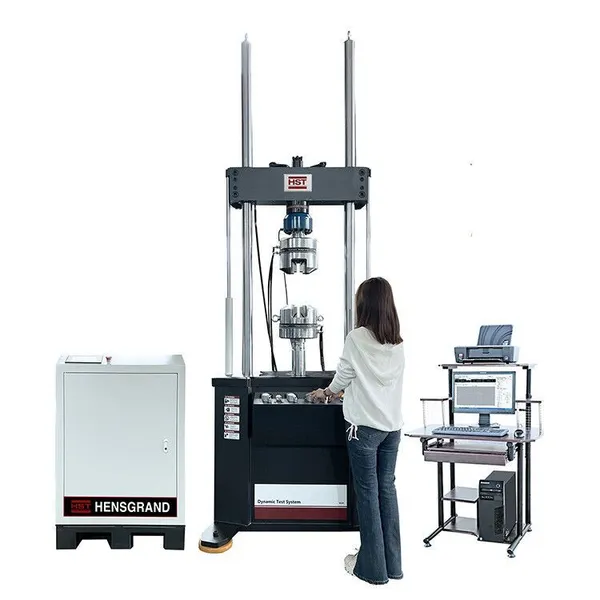

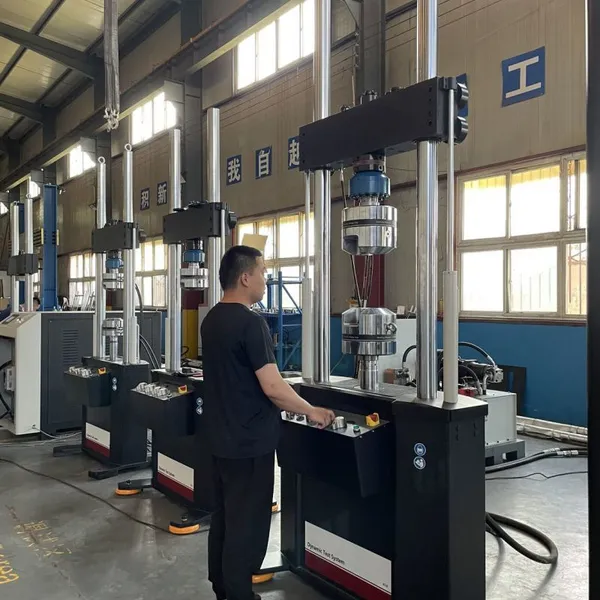

HST K1C ASTM E399 1000kN Laboratory Computer Control Electro-Hydraulic Universal Fatigue Testing Machine
US$ 1301609.40
1 Set
US$ 1294611.50
≥2 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Warranty:
12months
Accuracy:
1
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST 100kn ASTM E606 Low Cycle Fatigue Test Computerized Dynamic and Static Load Hydraulic Servo Tensile Fatigue MachineUS$ 349895.00 - 384884.50MOQ: 1 Set -
HST-HFT50B 50KN Dynamic ASTM E647 Fatigue Crack Growth Rates Fatigue TesterUS$ 50000 - 60000MOQ: 1 Set
-
100KN ASTM E466 Dynamic Static Durability Test High Speed High Cycle Fatigue Testing SystemUS$ 50000 - 80000MOQ: 1 Set
-
HST Servo Hydraulic Universal Fatigue Testing Machine Dynamic and Static Fatigue Tester With 1 Year WarrantyUS$ 342827.13 - 349825.03MOQ: 1 Set
-
High-Temperature Rotary Bending Fatigue Testing Machine With Four-Point Loading System - HSTBF-102HUS$ 349895.00 - 370888.70MOQ: 1 Set
Warranty
12months
Accuracy
1
brand name
HST
place of origin
Shandong, China
customized support
OEM
power
1
Protection Class
IP55
Voltage
380 V
warranty
1YEAR
Product name
Dynamic static universal test machine
Application
Testing material under dynamic and static condition
Power supply
380V, 50HZ, 3P
Standard
ASTM , ISO, EN, GB, etc
Certificate
CE, ISO
Clamping method
Hydraulic clamp
Frequency
0.001~50 Hz
Displacement
0.8-40mm
Distance Between Grips
50~600mm
Products Description
Application
Mainly used to do the dynamic and static mechanical fatigue test for materials and parts . The machinecouldalsocomplete the fatigue test of other structural parts with different fixture. The machine also can be usedfor materialsor structural parts, auto parts and other static mechanical performance test. It is a popular machinefortheuniversity, research institutes, enterprises and other experimental equipment to test.
Standards
GB / T 2611-2007 "General Technical Requirements for Testing Machines" GB / T16825.1-2008 "Inspection of Static Uniaxial Testing
Machine Part 1: Inspection and Calibrationof Tensionand / or Pressure Testing Machine Force Measuring System" JB9397-2002
"Technical Conditions for Tension and Compression Fatigue Testing Machine" GB / T 3075-2008 "Metal Axial Fatigue Test Method"
Machine Part 1: Inspection and Calibrationof Tensionand / or Pressure Testing Machine Force Measuring System" JB9397-2002
"Technical Conditions for Tension and Compression Fatigue Testing Machine" GB / T 3075-2008 "Metal Axial Fatigue Test Method"
GB / T15248-2008 "Metal material axial constant amplitude low cycle fatigue test method" HG / T 2067-1991 "Technical Conditions of
Rubber Fatigue Testing Machine" ASTM F1717-2010 Standard Test Methods for Spinal Implant Constructs in a Vertebrectomy Model
Rubber Fatigue Testing Machine" ASTM F1717-2010 Standard Test Methods for Spinal Implant Constructs in a Vertebrectomy Model
Model | HST-DP2 | HST-DP5 | HST-DP10 | HST-DP20/50 | |||
Max testing force | ±2000N | ±5000N | ±10000N | ±20000N/±50000N | |||
Load frame | Two-column platform type, cross beam electric adjustment | ||||||
Effective column width | 500 | 500 | 500 | 475 | |||
Test space | 500 | 500 | 500 | 500 | |||
Test force measuring range | Dynamic 2%～100%FS | ||||||
Force accuracy and fluctuation | 1% better than indicated value; amplitude fluctuation is not greater than ± 1% F.S | ||||||
Load display resolution | 1/50000 | ||||||
Test force indication accuracy | Dynamic ± 1%; static 0.5% | ||||||
Displacement measurement range | 150mm(±75mm) | ||||||
Displacement resolution | 0.001mmm | ||||||
Displacement indication accuracy | Indication accuracy from 1%, within ± 0.5% FS | ||||||
Deformation | Indication accuracy: 2%~ ± 0.5% | ||||||
Frequency rang | standard machine 0.1-10HZ,can Optional20HZ,30HZ,50HZ | ||||||
Accessories | Standard :Compression, bend(option), shear etc.(option) | ||||||
Test waveform: | sine wave, square wave, triangle wave, ramp wave, etc. | ||||||
