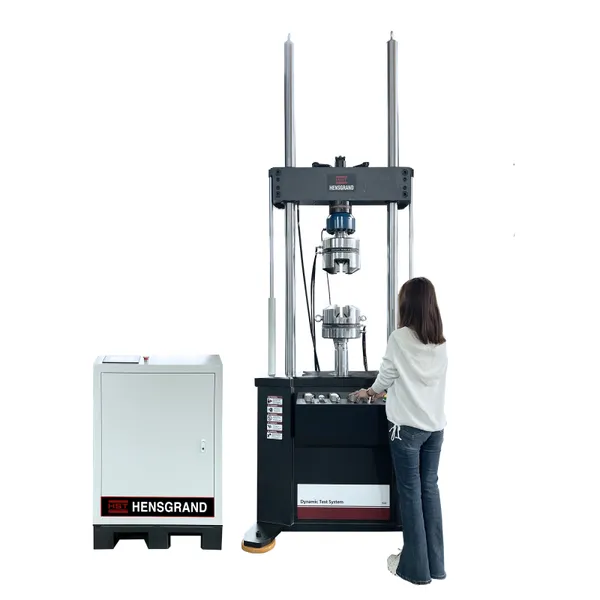

HST 100kn ASTM E606 Low Cycle Fatigue Test Computerized Dynamic and Static Load Hydraulic Servo Tensile Fatigue Machine
US$ 384884.50
1 - 4 Set
US$ 349895.00
≥5 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Warranty:
12months
Accuracy:
1
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-HFT50B 50KN Dynamic ASTM E647 Fatigue Crack Growth Rates Fatigue TesterUS$ 50000 - 60000MOQ: 1 Set -
100KN ASTM E466 Dynamic Static Durability Test High Speed High Cycle Fatigue Testing SystemUS$ 50000 - 80000MOQ: 1 Set
-
HST Servo Hydraulic Universal Fatigue Testing Machine Dynamic and Static Fatigue Tester With 1 Year WarrantyUS$ 342827.13 - 349825.03MOQ: 1 Set
-
High-Temperature Rotary Bending Fatigue Testing Machine With Four-Point Loading System - HSTBF-102HUS$ 349895.00 - 370888.70MOQ: 1 Set
-
HST 1000kn 100ton HST-FTA Steel Strand Anchor Connector Fatigue Testing MachineUS$ 1245626.20 - 1259622.00MOQ: 1 Set
Warranty
12months
Accuracy
1
brand name
HST
place of origin
Shandong, China
customized support
OEM
power
3kw
Protection Class
IP55
Voltage
380 V
warranty
1YEAR
Product name
Dynamic static universal test machine
Application
Testing material under dynamic and static condition
Power supply
380V, 50HZ, 3P
Standard
ASTM , ISO, EN, GB, etc
Certificate
CE, ISO
Clamping method
Hydraulic clamp
Frequency
0.001~50 Hz
Displacement
0.8-40mm
Distance Between Grips
50~600mm
Products Description
Application
This series computer Control Electro-hydraulic Servo Fatigue Testing Machine is ainly used to detect a variety of metals, non-metallic materials and small movable member, the static mechanical properties test. It can do tensile, compression, bending, low cycle and high cycle fatigue, crack growth, fracture mechanics test under sine, triangle, square wave, trapezoidal wave, random wave, combination waveform.
This Test machine is flexible, moving beam down, locking the sample holder by button operations, the use of advanced
hydraulic servo drive technology loaded, high precision and high resolution dynamic load sensor magnetostrictive displacement sensor specimens force values and displacement.
Fully digital measurement and control system implementation force, displacement, deformation closed loop control,
test software under WINDOWS Chinese working environment, powerful data processing capabilities, test conditions and test results are automatically saved, displayed and printed. Fully integrated into the computer-controlled test procedure, the test machine is a research institutes, metallurgy building, defense industry, universities, machinery manufacturing, transportation and other industries ideal cost-effective test systems.
Standards
GB / T2611-2007 《Tester General technical requirements》 GB / T16826-2008 《Hydraulic servo universal testing machine》 GB 3075
《Axial fatigue testing metal》 JB / T9379-2002 《Tension and compression fatigue test machine technical conditions》GB / T228-2010
《Metallic materials at room temperature tensile test method 》 HB5287 Axial Loading Fatigue Test Method for Metal Materials EN10002
Tensile Test of Metallic Materials JJG 556-2011 Axial Force Fatigue Testing Machine HG／T 2067-1991 Technical specifications for
rubber fatigue testing machine ASTM E399－09 Metallic materials Kic standard test for linear elastic plane strain fracture
toughness ASTM E1820 2001 measure of fracture toughnes
《Axial fatigue testing metal》 JB / T9379-2002 《Tension and compression fatigue test machine technical conditions》GB / T228-2010
《Metallic materials at room temperature tensile test method 》 HB5287 Axial Loading Fatigue Test Method for Metal Materials EN10002
Tensile Test of Metallic Materials JJG 556-2011 Axial Force Fatigue Testing Machine HG／T 2067-1991 Technical specifications for
rubber fatigue testing machine ASTM E399－09 Metallic materials Kic standard test for linear elastic plane strain fracture
toughness ASTM E1820 2001 measure of fracture toughnes
Model |
HST-P50 |
HST-P100 |
HST-P250 |
HST-P500 |
||||
Force capacity |
N |
50 |
100 |
250 |
500 |
|||
Relative error of test force indication |
% |
±0.5 |
||||||
Testing machine accuracy |
% |
Static indication accuracy: ±0.5 |
||||||
Load range |
% |
1%- 100% |
||||||
Actuator dynamic stroke |
mm |
150(±75) |
||||||
Actuator maximum amplitude |
% |
±0.5%FS |
||||||
Displacement measurement accuracy |
mm |
0.001mm |
||||||
Deformation indication relative error |
% |
±0.5% |
||||||
Frequency Range |
HZ |
0.01-20 (30,50 optioanl) |
||||||
