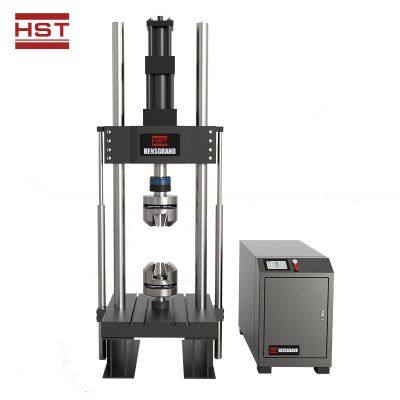

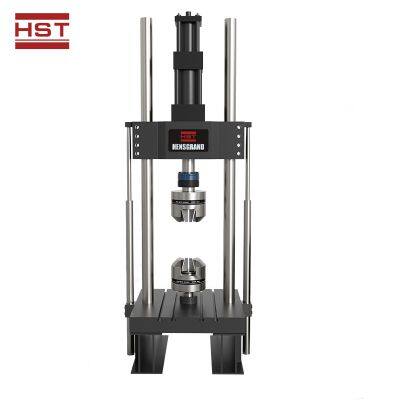

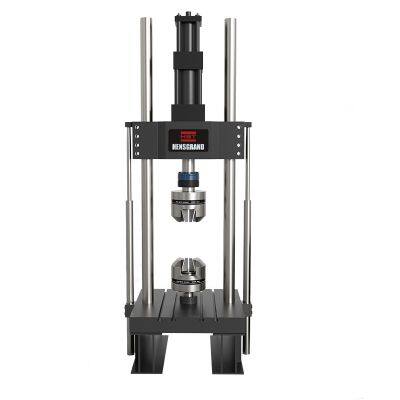

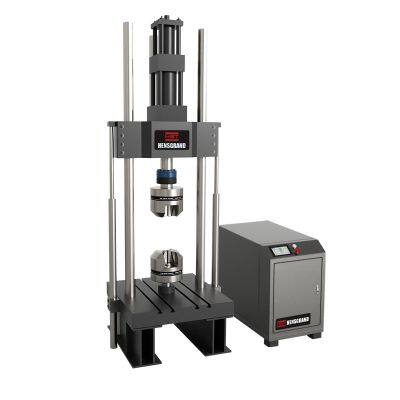

Hydraulic Servo Fatigue Testing Machine 250kN Upper Actuator for Dynamic Testing 1-Year Warranty
US$ 783183.98
1 - 2 Set
US$ 782365.22
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.5%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-HFT100A 100kN High-Dynamic Hydraulic Servo Fatigue Testing Machine 1-Year Warranty for Material & Component TestingUS$ 692792.10 - 699790.00MOQ: 1 Set -
HST-EFT Series High-Precision Electronic Servo Dynamic Fatigue Testing Machine for Material & Component Testing 1 Year WarrantyUS$ 156053.17 - 164450.65MOQ: 1 Set
-
HST-HFT25TA ASTM E399 25kn Compression Tensile Dynamic Fatigue Testing MachineUS$ 69279.21MOQ: 1 Set
-
HST-HFT25TA ASTM E1820 25kn Hydraulic Compression Tensile Dynamic Fatigue Test SystemUS$ 69279.21MOQ: 1 Set
-
COTD K1C ASTM E647 ISO 12108 50-500kN Dynamic Tensile Test Dynamic Testing MachineUS$ 48000 - 50000MOQ: 1 Set
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing, static and dynamic mechanical properties test
customized support
OEM, ODM
power
250KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
hydraulic fatigue testing machine
Model
HST- HFT250A
Maximum static force (kN)
250
Maximum dynamic force (kN)
±250
Actuator dynamic stroke(mm)
150
Displacement measuring range (mm)
0~150(±75)
Displacement measurement resolution(mm)
0.001
Deformation indication relative error
±0.5%
Power supply
AC 380V± 10%, 50Hz
Products Description
Application
It is mainly used to detect the static and dynamic mechanical properties of metal and non-metal materials. It can realize mechanical tests such as tension, compression, tension-tension, compression-compression and tension-compression, as well as high-cycle fatigue, low-cycle fatigue, crack growth,fracture toughness and other tests, and realize various waveform outputs such as sine wave, triangle wave, square wave, etc.
MODEL |
HST- HFT504A |
HST- HFT100A |
HST- HFT250A |
HST- HFT500A |
|||
Maximum dynamic force (kN) |
±50 |
±100 |
±250 |
±500 |
|||
Maximum static force (kN) |
50 |
100 |
250 |
500 |
|||
Load range |
2%-100%FS |
||||||
Testing machine accuracy |
Static indication accuracy: ±0.5% Dynamic loading accuracy: ±1% |
||||||
Actuator dynamic stroke(mm) |
150 |
||||||
Displacement measuring range (mm) |
0～150(±75) |
||||||
Displacement measurement resolution(mm) |
0.001 |
||||||
Deformation indication relative error |
±0.5% |
||||||
Sine wave test Frequency (Hz) |
Standard: 0.01～30; Optional: 0.01～50; 0.01～100(Static pressure support cylinder) |
||||||
Vertical test space(mm） |
1000 |
1000 |
750 |
750 |
|||
Effective distance between columns(mm) |
533 |
533 |
760 |
760 |
|||
Main frame stiffness |
3×108 |
||||||
Machine frame sizes(mm) |
990X1000X2555 |
864X1000X3574 |
|||||
Machine frame weight(KG) |
1200 |
1200 |
|||||
Coaxiality of hydraulic fixture |
5% |
||||||
Power supply |
AC 380V± 10%, 50Hz |
||||||
