HST-HFT25TA ASTM E399 25kn Compression Tensile Dynamic Fatigue Testing Machine
US$ 69279.21
≥1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
0.5CLASS, ±0.5%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-HFT25TA ASTM E1820 25kn Hydraulic Compression Tensile Dynamic Fatigue Test SystemUS$ 69279.21MOQ: 1 Set -
COTD K1C ASTM E647 ISO 12108 50-500kN Dynamic Tensile Test Dynamic Testing MachineUS$ 48000 - 50000MOQ: 1 Set
-
HST 200 ~ 800℃ High Temperature Touch Screen Control Rotating Bending Fatigue Testing MachineUS$ 335899.20 - 349895.00MOQ: 1 Set
-
HST HB5152-1996 and HB5153-1996 Touch Screen Control Rotating Bending Fatigue Testing MachineUS$ 335899.20 - 349895.00MOQ: 1 Set
-
HST-EFT20A 20KN Electronic Dynamic Fatigue TesterUS$ 10000 - 15000MOQ: 1 Set
Accuracy
0.5CLASS, ±0.5%
brand name
HST
place of origin
Shandong, China
customized support
OEM, ODM, OBM
power
3kw, Electronic
Protection Class
IP55
Voltage
380 V, 220 V
warranty
1 Year
resolution
0.001mm
Test range
0.2-100%FN
amplitude
±75
Distance Between Columns(mm)
550
Power
220V three phase
Size
1500*550*1700
column
double
Product name
2.5T compression tensile torsion dynamic fatigue testing machine
Products Description

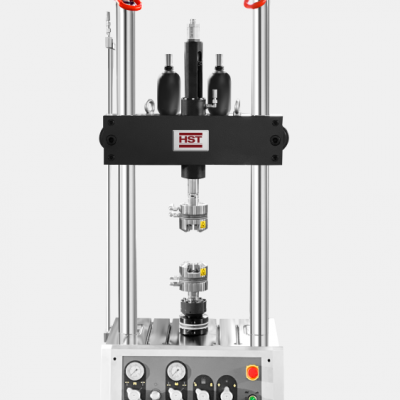

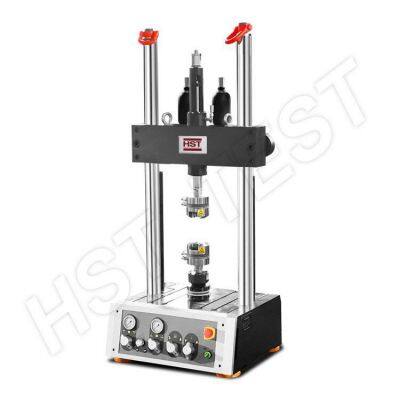

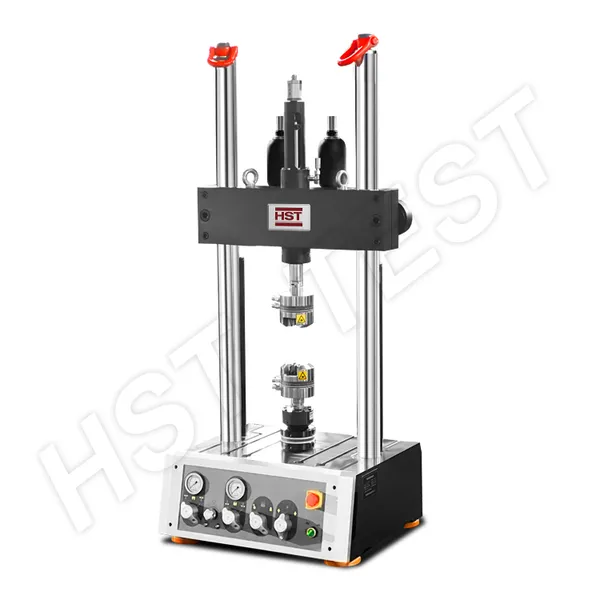

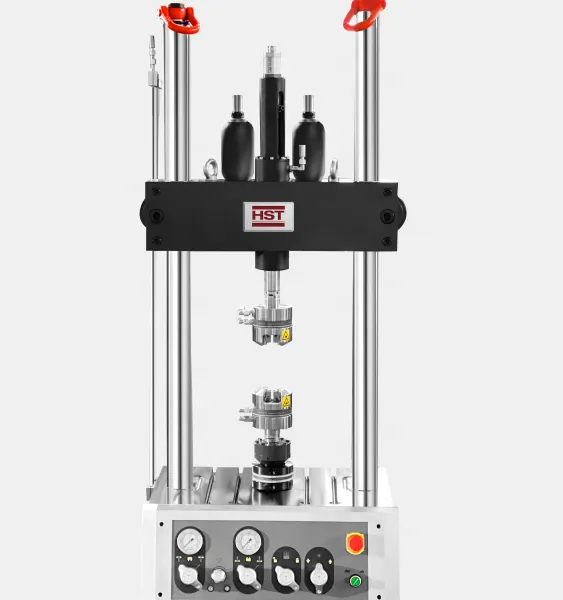

HST-HFT25TA compression tensile torsion fatigue testing machine
Application
Mainly used to do the dynamic and static mechanical fatigue test for materials and parts . The machine could also complete the fatigue test of other structural parts with different fixture. The machine also can be used for materials or structural parts, auto parts and other static performance test. It is a popular machine for the university, research institutes, enterprises and other experimental equipment to test.
Axial
The axial configuration of the tabletop test system can be used to perform accurate and repeatable fatigue life and fracture growth studies, as well as tension, bending and compression tests of biomaterials. It runs tests up to ±25 kN (5.5 kip) with standard displacements of ±50 mm (± 2 in.), and can easily be configured for monotonic or fatigue testing.
Specifications
MODEL | UNITS | HST-HFT25TA |
Max. Load(kN) | kN | 15, 25 |
Available actuator₁ | kN | 15, 25 |
Actuator dynamic stroke₁ | mm | 100, 150 |
Minimum vertical test space – standard height₂ | mm | 144 |
Maximum vertical test space – standard height₃ | mm | 827 |
Minimum vertical test space – extended height₂ | mm | 398 |
Maximum vertical test space – extended height₃ | mm | 1335 |
Working height₄ | mm | 2308 |
Column spacing (test space width) | mm | 460 |
Column diameter | mm | 76.2 |
Base width | mm | 622 |
Base depth | mm | 577 |
Diagonal clearance – standard height₅ | mm | 17508 |
Diagonal clearance – extended height₅ | mm | 22508 |
Overall height – standard height₆ | mm | 19898 |
Overall height – extended height₆ | mm | 26248 |
