Home > Instruments & Meters > Test Instrument > Test Machine > 250kN Upper Actuator Hydraulic Servo Fatigue Testing Machine With 1-Year Warranty for Dynamic Testing

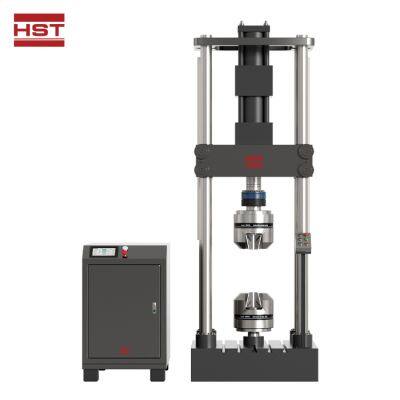

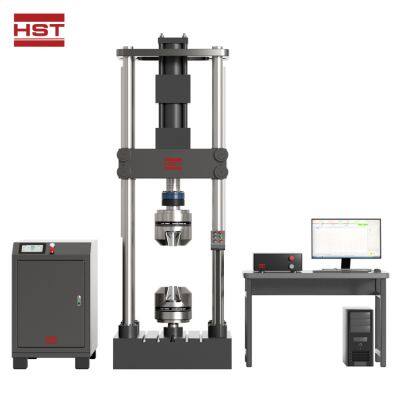

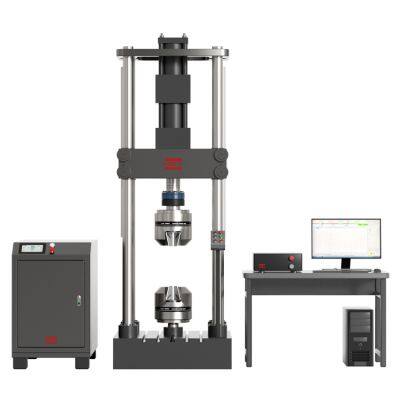

250kN Upper Actuator Hydraulic Servo Fatigue Testing Machine With 1-Year Warranty for Dynamic Testing
US$ 783183.98
1 - 2 Set
US$ 782365.22
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.5%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-EFT20A 20KN Electronic Dynamic Fatigue Tester High-Performance Testing EquipmentUS$ 22000 - 29000MOQ: 1 Set -
Hydraulic Servo Fatigue Testing Machine 250kN Upper Actuator for Dynamic Testing 1-Year WarrantyUS$ 782365.22 - 783183.98MOQ: 1 Set
-
HST-HFT100A 100kN High-Dynamic Hydraulic Servo Fatigue Testing Machine 1-Year Warranty for Material & Component TestingUS$ 692792.10 - 699790.00MOQ: 1 Set
-
HST-EFT Series High-Precision Electronic Servo Dynamic Fatigue Testing Machine for Material & Component Testing 1 Year WarrantyUS$ 156053.17 - 164450.65MOQ: 1 Set
-
HST-HFT25TA ASTM E399 25kn Compression Tensile Dynamic Fatigue Testing MachineUS$ 69279.21MOQ: 1 Set
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
250KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
hydraulic fatigue testing machine
Model
HST-HFT250A
Maximum static force (kN)
250
Maximum dynamic force (kN)
±250
Actuator dynamic stroke(mm)
150
Displacement measuring range (mm)
0~150(±75)
Displacement measurement resolution(mm)
0.001
Deformation indication relative error
±0.5%
Power supply
AC 380V± 10%, 50Hz
Products Description
Application
It is mainly used to test the dynamic and static mechanical properties of various materials, parts, elastomers, shock absorbers and components. It can perform tensile,compression, bending, low and high cycle fatigue, crack propagation, and fracture mechanics tests under sine wave, triangle wave, square wave, trapezoidal wave, and combined waveforms. It can also be equipped with environmental testing devices to complete environmental simulation tests at different temperatures.
Model |
HST-HFT50A |
HST-HFT100A |
HST-HFT250A |
HST-HFT500A |
HST-HFT1000A |
HST-HFT2000A |
|||||
Maximum dynamic force (kN) |
±50 |
±100 |
±250 |
±500 |
±1000 |
±2000 |
|||||
Maximum static force (kN) |
50 |
100 |
250 |
500 |
1000 |
2000 |
|||||
Load range |
2%-100%FS |
||||||||||
Testing machine accuracy |
Static indication accuracy: ±0.5% Dynamic loading accuracy: ±1% |
||||||||||
Actuator dynamic stroke(mm) |
150 |
||||||||||
Displacement measuring range (mm) |
0～150(±75) |
||||||||||
Displacement measurement resolution(mm) |
0.001 |
||||||||||
Deformation indication relative error |
±0.5% |
||||||||||
Sine wave test Frequency (Hz) |
Standard: 0.01～30; Optional: 0.01～50; 0.01～100(Static pressure support cylinder) |
||||||||||
Test space (mm) |
1500 |
||||||||||
Test width（mm） |
720mm |
||||||||||
Main frame stiffness |
3×108 |
||||||||||
Coaxiality of hydraulic fixture |
5% |
||||||||||
Power supply |
AC 380V± 10%, 50Hz |
||||||||||
