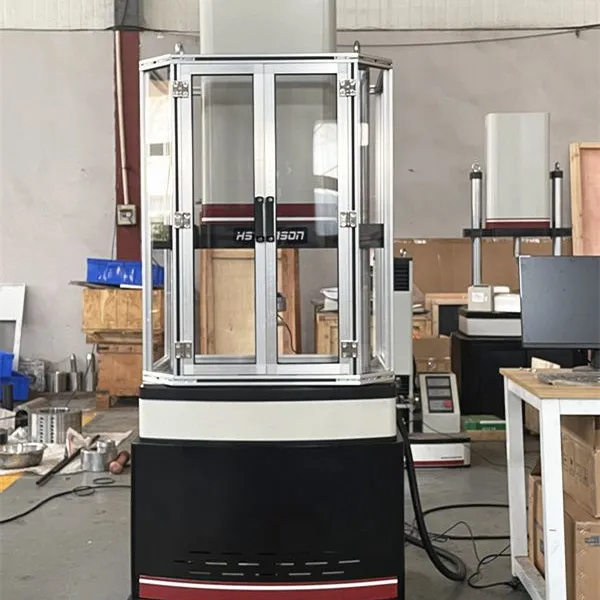

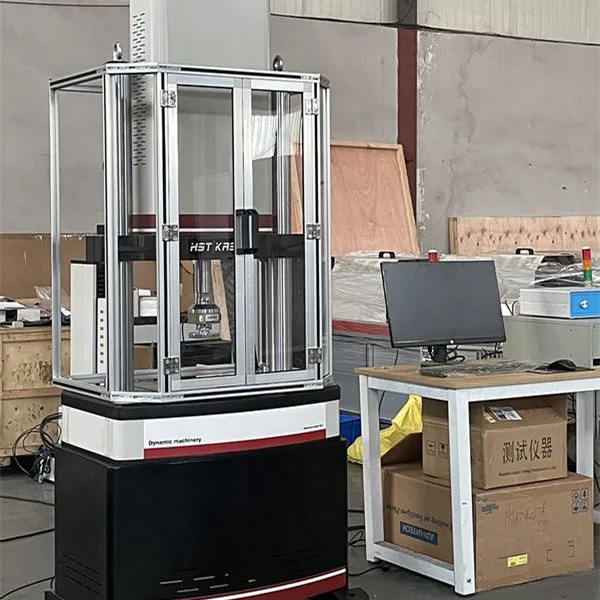

HST Electronic Servo High-End Universal Testing Machine 50kN-600kN Fatigue Dynamic Static Testing Equipment High Precision
US$ 356892.90
1 - 2 Set
US$ 349895.00
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Warranty:
12months
Accuracy:
≤± 0.5%
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST Professional Computerized Universal Materials Testing Machine 25kN 220V Tensile Repetitive Compression Fatigue 1 YearUS$ 599 - 6999MOQ: 1 Set -
220V Computer-Controlled Universal Dynamic/Fatigue Testing Machine With 1 Year WarrantyUS$ 599 - 6999MOQ: 1 Set
-
Dynamic Fatigue Testing Machine Cycling Test Machine Bicycle Crank Fatigue Testing MachineUS$ 22000 - 29000MOQ: 1 Set
-
Fatigue Testing Machine Fatigue Tester Device Analyzer Instrument Equipment for Strength Compression EnduranceUS$ 22000 - 29000MOQ: 1 Set
-
HST-EFT1A 5kn Electronic Dynamic and Static Universal Testing MachineUS$ 22000 - 29000MOQ: 1 Set
Warranty
12months
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing, static and dynamic mechanical properties test of tiny material samples
customized support
OEM, ODM
power
2.5KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Electronic servo dynamic fatigue testing machine
Model
HST- HFT500B
Power supply
AC 380V± 10%, 50Hz
Actuator dynamic stroke(mm)
150
Displacement measuring range (mm)
0~150(±75)
Load range
2%-100%FS
Displacement measurement resolution(mm)
0.001
Products Description
Application
Electro Hydraulic Servo Dynamic Static FatigueTesting Machine is mainly used to detect the static and dynamic mechanical properties of metal and non-metal materials. It can realize mechanical tests such as tension, compression,
tension-tension, compression-compression and tension-compression, as well as high-cycle fatigue, low-cycle fatigue, crack growth,fracture toughness and other tests, and realize various waveform outputs such as sine wave, triangle wave, square wave, etc.
Features
1.The crossbeam is placed on top and the actuator is placed on the bottom to form a closed frame structure. The frame has high rigidity, no reverse clearance and good stability.
2.The actuator adopts a double-acting cylinder design, with reasonable space design and easy operation.
3.The lifting, locking and sample clamping of the mobile crossbeam are all operated by buttons, which is flexible and convenient.
2.The actuator adopts a double-acting cylinder design, with reasonable space design and easy operation.
3.The lifting, locking and sample clamping of the mobile crossbeam are all operated by buttons, which is flexible and convenient.
MODEL |
HST- HFT25B |
HST- HFT50B |
HST- HFT100B |
HST- HFT250B |
HST- HFT500B |
||||||
Force capacity |
Dynamic(kN) |
±25 |
±50 |
±100 |
±250 |
±500 |
|||||
Static(kN) |
25 |
50 |
100 |
250 |
500 |
||||||
Load range |
2%-100%FS |
||||||||||
Testing machine accuracy |
Static indication accuracy: ±0.5% Dynamic loading accuracy: ±1% |
||||||||||
Actuator dynamic stroke(mm) |
150 |
||||||||||
Displacement measuring range (mm) |
0～150(±75) |
||||||||||
Displacement measurement resolution(mm) |
0.001 |
||||||||||
Deformation indication relative error |
±0.5% |
||||||||||
Sine wave test Frequency (Hz) |
Standard: 0.01～30; Optional: 0.01～50HZ; 0.01～100HZ(Static pressure support cylinder) |
||||||||||
Vertical test space(mm） |
800 |
800 |
800 |
1000 |
1000 |
||||||
Working table height (mm) |
825 |
825 |
825 |
825 |
825 |
||||||
Effective distance between columns(mm) |
545 |
545 |
545 |
635 |
635 |
||||||
Column diameter(mm) |
80 |
76.2 |
|||||||||
Main frame stiffness |
3×108 |
||||||||||
Machine frame sizes(mm) |
1010X720X2900 |
1148X795X3252 |
|||||||||
Machine frame weight(KG) |
1200 |
1200 |
|||||||||
Coaxiality of hydraulic fixture |
5% |
||||||||||
Power supply |
AC 380V± 10%, 50Hz |
||||||||||
