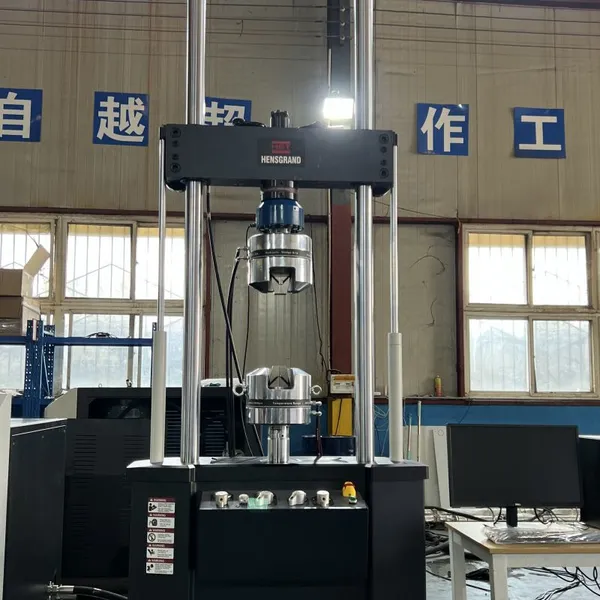

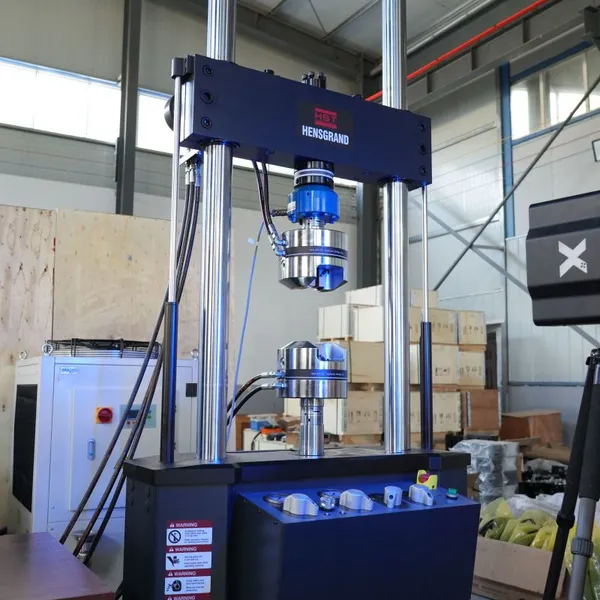

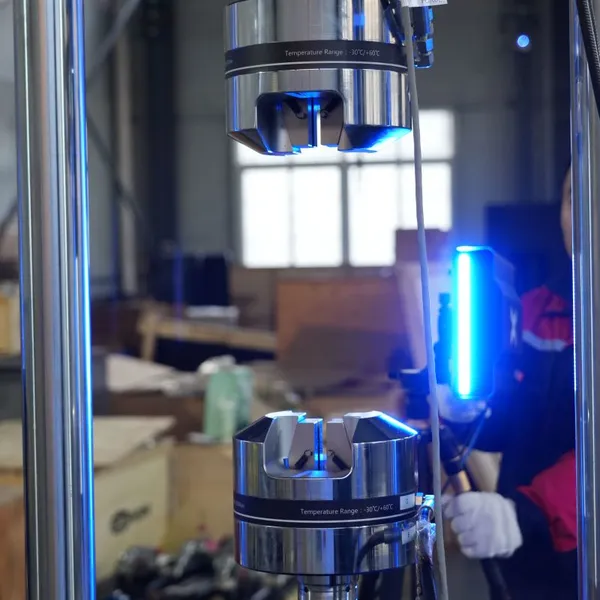

Help CenterCrack Growth Fatigue Test and Crack-Tip Opening Displacement Test Dynamic Testing System
Related Products
-
HST PLG-100C 10T 100KN Computer Control High Frequency Fatigue Testing Machine 100KN High Frequency Fatigue Testing MachineUS$ 41000 - 45600MOQ: 1 Set -
HST-P20,100hz 20kN Electro-hydraulic Servo Dynamic Static Fatigue Testing System 20kn 25kN 50kn Fatigue Testing MachineUS$ 69880 - 77650MOQ: 1 Set
-
HST-HFT2500A 2500kN Hydraulic Servo Fatigue Testing Machine High-Dynamic Material & Component Testing Atigue Testing MachineUS$ 1399580.00 - 1469559.00MOQ: 1 Set
-
HST-HFT100C 100kN Electro-hydraulic Servo Dynamic Static Fatigue Testing System 100kN Fatigue Testing MachineUS$ 423372.95 - 470258.88MOQ: 1 Set
-
HST-HFT100B 100kN Electro-hydraulic Servo Dynamic Static Fatigue Testing System 100kN Fatigue Testing MachineUS$ 362491.22 - 403079.04MOQ: 1 Set
static hydraulic universal testing machine
Application:
It is mainly used to detect the static and dynamic mechanical properties of metal and non-metal materials. It can realize mechanical tests such as tension, compression, tension-tension, compression-compression and tension-compression, as well as high-cycle fatigue, low-cycle fatigue, crack growth, fracture toughness and other tests, and realize various waveform outputs such as sine wave, triangle wave, square wave, etc.
Features:

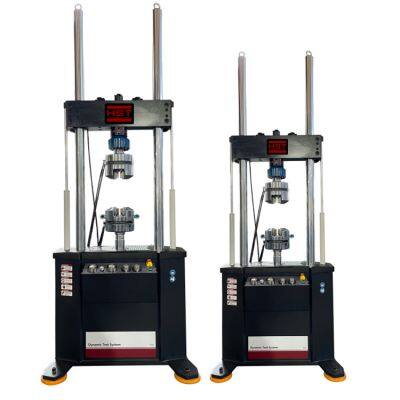

1.The crossbeam is placed on top and the actuator is placed on the bottom to form a closed frame structure. The frame has high rigidity, no reverse clearance and good stability.

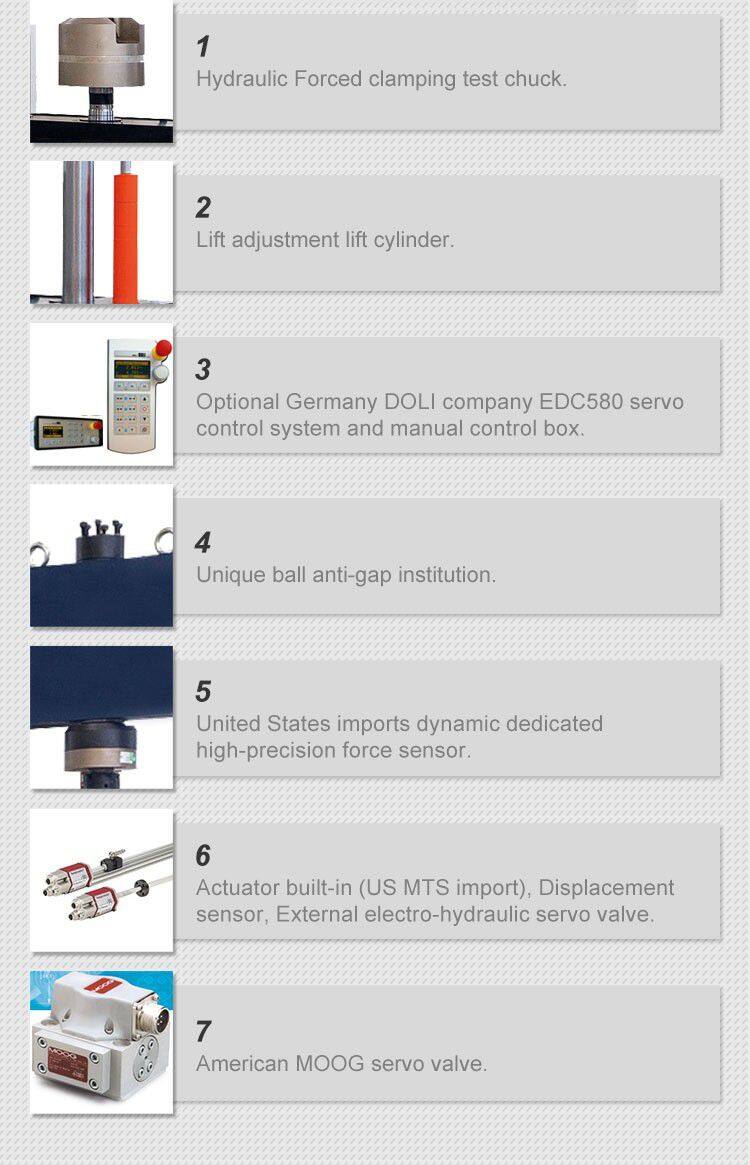

2.The actuator adopts a double-acting cylinder design, with reasonable space design and easy operation.
3.The lifting, locking and sample clamping of the mobile crossbeam are all operated by buttons, which is flexible and convenient.
Specification:
|
HST- HFT25B |
HST- HFT50B |
HST- HFT100B |
HST- HFT250B |
HST- HFT500B |
||
|
Force capacity |
±25 |
±50 |
±100 |
±250 |
±500 |
|
|
Static(kN) |
25 |
50 |
100 |
250 |
500 |
|
|
Load range |
2%-100%FS |
|||||
|
Testing machine accuracy |
Static indication accuracy: ±0.5% Dynamic loading accuracy: ±1% |
|||||
|
Actuator dynamic stroke(mm) |
150 |
|||||
|
Displacement measuring range (mm) |
0~150(±75) |
|||||
|
Displacement measurement resolution(mm) |
0.001 |
|||||
|
Deformation indication relative error |
±0.5% |
|||||
|
Sine wave test Frequency (Hz) |
Standard: 0.01~30; Optional: 0.01~50HZ; 0.01~100HZ(Static pressure support cylinder) |
|||||
|
Vertical test space(mm) |
800 |
800 |
1000 |
1000 |
||
|
Working table height (mm) |
825 |
825 |
825 |
825 |
||
|
Effective distance between columns(mm) |
545 |
545 |
545 |
635 |
635 |
|
|
Column diameter(mm) |
80 |
76.2 |
||||
|
Main frame stiffness |
3×108 |
|||||
|
Machine frame sizes(mm) |
1010X720X2900 |
1148X795X3252 |
||||
|
Machine frame weight(KG) |
1200 |
1200 |
||||
|
Coaxiality of hydraulic fixture |
5% |
|||||
|
Power supply |
AC 380V± 10%, 50Hz |
|||||
|
|
|
|
