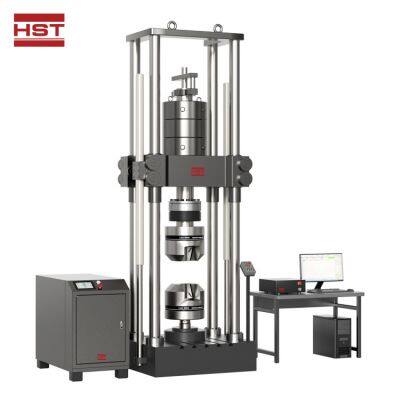

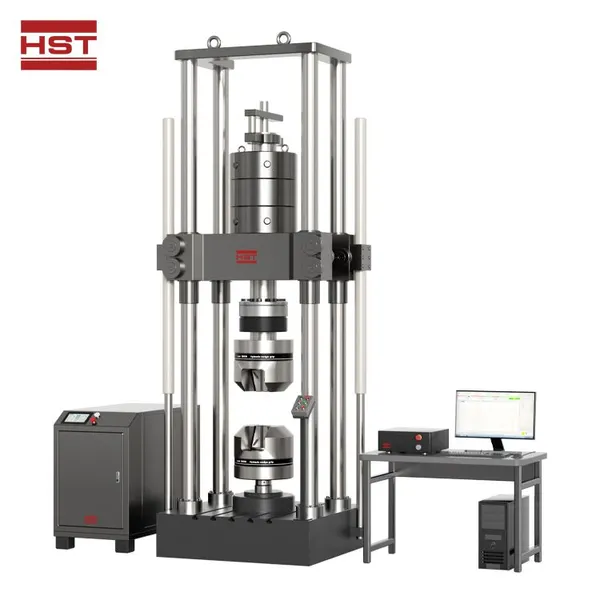

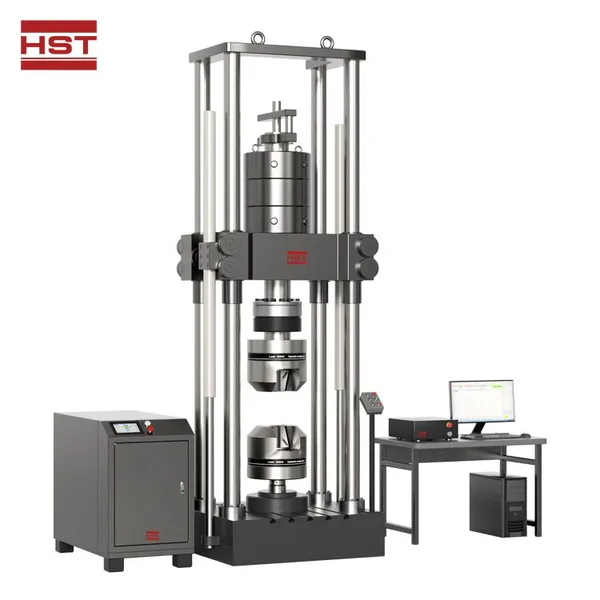

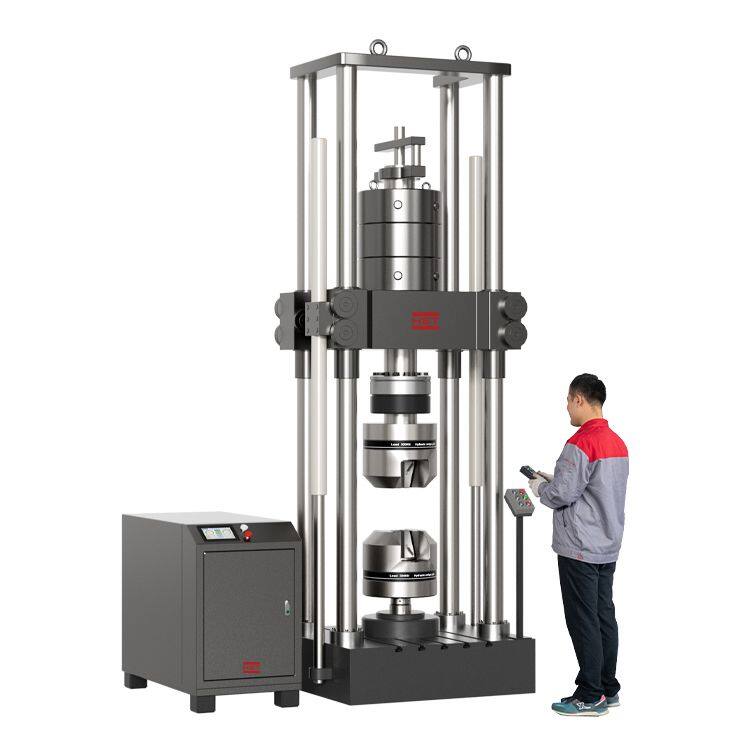

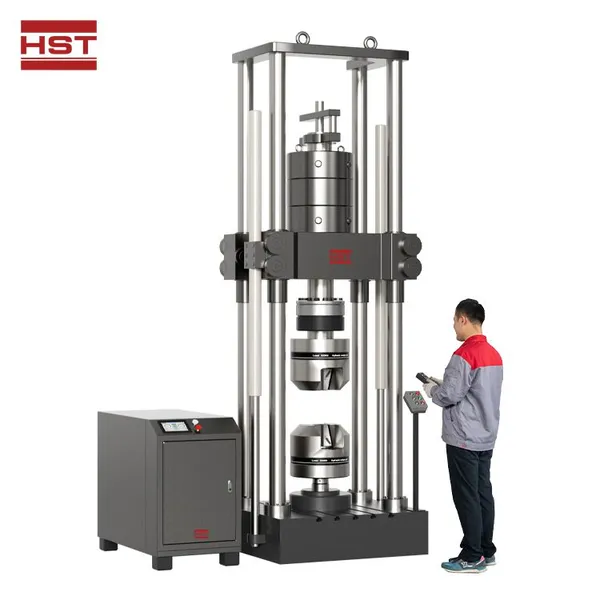

HST-HFT2500A 2500kN Hydraulic Servo Fatigue Testing Machine High-Dynamic Material & Component Testing Atigue Testing Machine
US$ 1469559.00
1 - 2 Set
US$ 1399580.00
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.5%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-HFT100C 100kN Electro-hydraulic Servo Dynamic Static Fatigue Testing System 100kN Fatigue Testing MachineUS$ 423372.95 - 470258.88MOQ: 1 Set -
HST-HFT100B 100kN Electro-hydraulic Servo Dynamic Static Fatigue Testing System 100kN Fatigue Testing MachineUS$ 362491.22 - 403079.04MOQ: 1 Set
-
HST-HFT50B 50kN Electro-hydraulic Servo Dynamic Static Fatigue Testing System 50kN Fatigue Testing MachineUS$ 342897.10 - 394681.56MOQ: 1 Set
-
HST-EFT50A 50KN,Electronic Servo Dynamic Fatigue Testing Machine 50000N Fatigue Testing MachineUS$ 188943.30 - 209937.00MOQ: 1 Set
-
HST-EFT30A 30KN,Electronic Servo Dynamic Fatigue Testing Machine 30KN Fatigue Testing MachineUS$ 196501.04 - 218334.48MOQ: 1 Set
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing, static and dynamic mechanical properties test
customized support
OEM, ODM
power
/KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Electro-hydraulic Servo Fatigue Testing Machine
Model
HST-HFT2500A
Maximum static force (kN)
2500
Maximum dynamic force (kN)
±2500
Actuator dynamic stroke(mm)
150
Displacement measuring range (mm)
0~150(±75)
Displacement measurement resolution(mm)
0.001
Deformation indication relative error
±0.5%
Power supply
AC 380V± 10%, 50Hz
HST-HFT2500A Electro-hydraulic
Servo Dynamic static fatigue testing system
Servo Dynamic static fatigue testing system
If you want to know more models, price please contact Lisa:
Email: lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application :
This series computer Control Electro-hydraulic Servo Fatigue Testing Machine is mainly used to detect a variety of metals,
non-metallic materials and small movable member, the static mechanical properties test. It can do tensile, compression, bending,low cycle and high cycle fatigue, crack growth, fracture mechanics test under sine, triangle, square wave, trapezoidal wave,random wave, combination waveform.
This Test machine is flexible, moving beam down, locking the sample holder by button operations, the use of advanced hydraulic servo drive technology loaded, high precision and high resolution dynamic load sensor magnetostrictive displacement sensor specimens force values and displacement.
Fully digital measurement and control system implementation force, displacement, deformation closed loop control, Software powerful data processing capabilities, test conditions and test results are automatically saved, displayed and printed. Fully integrated into the computer-controlled test procedure, the test machine is a research institutes, metallurgy building, defense industry, universities, machinery manufacturing, transportation and other industries ideal cost-effective test systems.
non-metallic materials and small movable member, the static mechanical properties test. It can do tensile, compression, bending,low cycle and high cycle fatigue, crack growth, fracture mechanics test under sine, triangle, square wave, trapezoidal wave,random wave, combination waveform.
This Test machine is flexible, moving beam down, locking the sample holder by button operations, the use of advanced hydraulic servo drive technology loaded, high precision and high resolution dynamic load sensor magnetostrictive displacement sensor specimens force values and displacement.
Fully digital measurement and control system implementation force, displacement, deformation closed loop control, Software powerful data processing capabilities, test conditions and test results are automatically saved, displayed and printed. Fully integrated into the computer-controlled test procedure, the test machine is a research institutes, metallurgy building, defense industry, universities, machinery manufacturing, transportation and other industries ideal cost-effective test systems.
Standards:
GB / T16826-2008 《Hydraulic servo universal testing machine》
GB 3075 《Axial fatigue testing metal》
JB / T9379-2002 《Tension and compression fatigue test machine technical conditions》
GB / T228-2010 《Metallic materials at room temperature tensile test method 》
HB5287 Axial Loading Fatigue Test Method for Metal Materials
EN10002 Tensile Test of Metallic Materials
JJG 556-2011 Axial Force Fatigue Testing Machine
HG／T 2067-1991 Technical specifications for rubber fatigue testing machine
ASTM E399－09 Metallic materials Kic standard test for linear elastic plane strain fracture toughness
ASTM E1820 2001 test standard for measuring fracture toughness
Specifications:
Model | HST-HFT2500A |
Static Force | 2500KN |
Dynamic Force | 2500KN |
Load range | 2%-100%FS |
Testing machine accuracy | Static indication accuracy: ±0.5% Dynamic loading accuracy: ±1% |
Actuator dynamic stroke | 150mm |
Displacement measuring range | 0～150mm(±75mm) |
Displacement measurement resolution | 0.001mm |
Deformation indication relative error | ±0.5% |
Force coaxiality | ≤5% |
Frequency Range | 0.01-20HZ (50Hz optional) |
Effective distance between columns | 720*420mm |
Maximum test space | 254-1500mm(exclude hydraulic clamps) |
Column diameter | φ135mm |
Frame stiffness | 1.6×109 |
Main test waveforms | Sine wave, square wave, triangle wave, ramp wave, random waveform and external input waveform; can realize multiple sine wave forms with different frequency or amplitude combinations; random wave forms with user-defined parameters; user-imported custom wave forms |
Test control method | Load, displacement, deformation control method |
Servo pump station specifications | Flow 120L/min, 21Mpa |
Power supply | AC 380V± 10%, 50Hz |

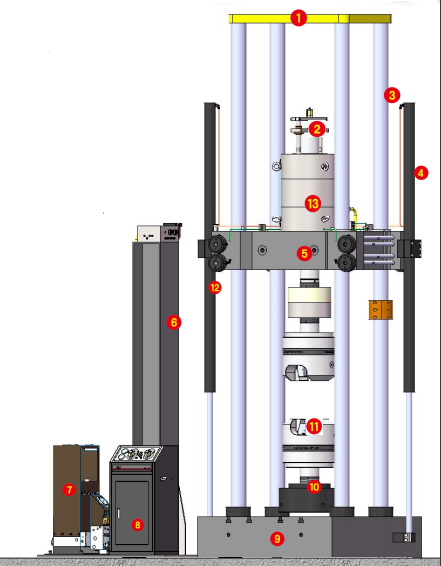

Machine details:
Title goes here.
1. Tie Bar
2. High-Accuracy displacement sensor
3. Precision-machined, ultra-stiff columns
4. Hydraulic Crosshead Positioning Cylinders
5. High-Stiffness Crosshead
- Integrated Actuator
- Integrated Hydraulic Manifold
- Close-coupled Accumulators
6. Optional Hose Stand
7. OptionaHydraulic Service Manifold (HSM)
8. Servo power pump station
9. Load Frame Base
- Standard T-Slot (shown)
- Integrated Strong Floor
10. Precision Force Transducer
- Actuator-mounted
11. Optional High-Force Accessories
- Compression Platens
- Hydraulic Wedge Grips (shown)
- Bend Fixtures
- Custom Fixtures
12. Crosshead Clamping Mechanism
13. High-PerformanceActuator
- Crosshead-mounted
- High-Stiffness
- Doubled-ended
- Dynamically rated
2. High-Accuracy displacement sensor
3. Precision-machined, ultra-stiff columns
4. Hydraulic Crosshead Positioning Cylinders
5. High-Stiffness Crosshead
- Integrated Actuator
- Integrated Hydraulic Manifold
- Close-coupled Accumulators
6. Optional Hose Stand
7. OptionaHydraulic Service Manifold (HSM)
8. Servo power pump station
9. Load Frame Base
- Standard T-Slot (shown)
- Integrated Strong Floor
10. Precision Force Transducer
- Actuator-mounted
11. Optional High-Force Accessories
- Compression Platens
- Hydraulic Wedge Grips (shown)
- Bend Fixtures
- Custom Fixtures
12. Crosshead Clamping Mechanism
13. High-PerformanceActuator
- Crosshead-mounted
- High-Stiffness
- Doubled-ended
- Dynamically rated
Test machine host:
* Four column frame structure, servo actuator upper
* Upper beam: hydraulic lifting, hydraulic locking
* Column: Hard chrome plated and polished
* Frame stiffness：1.6 ×109N/m
Servo actuator:
* Maximum test force: ±2500KN
* Maximum stroke: ±75mm (total stroke 150mm);
* Special dynamic servo actuator for dynamic and static test;

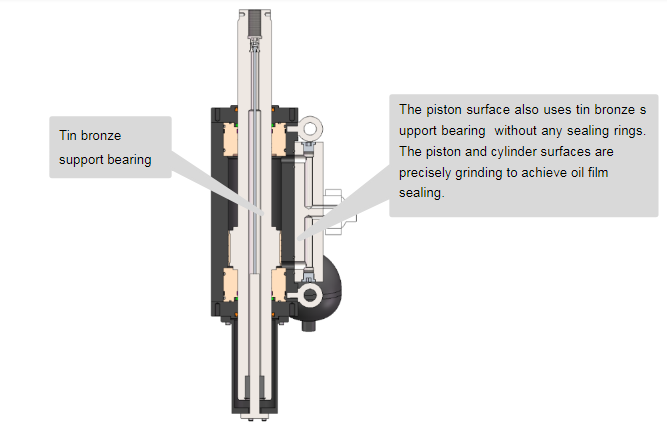

* Double-out rod, the surface of the piston rod is treated with special technology, and special technology is adopted for
high-quality finish treatment, which is suitable for long-term dynamic test;
* The high-speed sealing element (German Trelleborg Servo Glyd ring, Sterling) is used to seal between the piston and the
cylinder body, the piston rod and the end cover. And choose high-speed wear-resistant support ring (German Trelleborg) support,which makes the actuator rigid,
* Strong anti-direction finding ability;
* The actuator has built-in displacement sensor, external electro-hydraulic servo valve and force sensor, with two closed-loop control loops of force and displacement;
* The force sensor is placed on the head of the piston rod, and the prestressing ring is installed and configured, which can
fully ensure the safety and reliability of the connection during the dynamic test;
* Maximum stroke: ±75mm (total stroke 150mm);
* Special dynamic servo actuator for dynamic and static test;
* Double-out rod, the surface of the piston rod is treated with special technology, and special technology is adopted for
high-quality finish treatment, which is suitable for long-term dynamic test;
* The high-speed sealing element (German Trelleborg Servo Glyd ring, Sterling) is used to seal between the piston and the
cylinder body, the piston rod and the end cover. And choose high-speed wear-resistant support ring (German Trelleborg) support,which makes the actuator rigid,
* Strong anti-direction finding ability;
* The actuator has built-in displacement sensor, external electro-hydraulic servo valve and force sensor, with two closed-loop control loops of force and displacement;
* The force sensor is placed on the head of the piston rod, and the prestressing ring is installed and configured, which can
fully ensure the safety and reliability of the connection during the dynamic test;

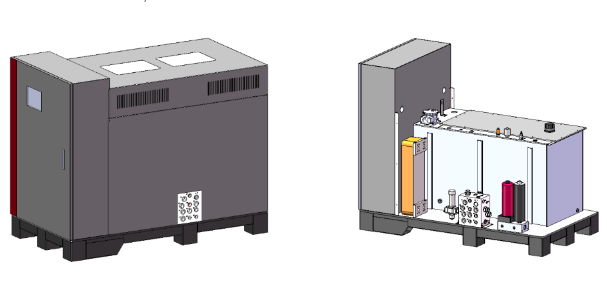

Hydraulic servo pump station and electrical control system:
* Sheet metal closed frame structure with sound insulation design;
* Total flow 120L/min, pressure 21Mpa.
* The pump station uses a silent variable piston pump from Germany Rexroth Company , which is immersed in the hydraulic medium together with a special liquid-immersed motor imported from Italy. It can automatically adjust the hydraulic flow according to the system flow demand, while reducing noise and avoiding vacuuming at low temperatures. Protect and extend equipment life. When the hydraulic power source is working at full load, the audible noise at a distance of 1 meter does not exceed 65 decibels, which meets the on-site requirements of the laboratory and does not require a separate sound insulation device or oil source room.
* hydraulic power source can be on and off manually. Meanwhile, the controller can independently control the start and stop of the hydraulic oil source and the high and low oil pressure working conditions. It is equipped with a heat exchanger with a temperature regulating valve. When the hydraulic source encounters abnormal conditions such as too high oil temperature, too low oil level, or motor overcurrent, the hydraulic system has a self-protection function.
* Total power45kW, AC 380V, three-phase
* Filtration system adopts three-stage filtration: oil pump suction port, 100μ; Oil source outlet, filtration accuracy 3μ; Relay
voltage regulator module, filtering accuracy 3μ.
* High and low pressure switching valve group is used to start and stop the hydraulic system.
* Has overheat protection, overcurrent protection, high and low pressure protection, overtemperature protection, flow protection, liquid level protection and other functions.
* The pump station is about 35% more energyefficient than the conventional pump station (quantitative gear pump)
* Fully enclosed standard servo fuel tank. With Siemens PLC for temperature measurement and alarm; air filter device, oil level display and alarm, self-diagnosis and abnormal shutdown and other functions;
* Total flow 120L/min, pressure 21Mpa.
* The pump station uses a silent variable piston pump from Germany Rexroth Company , which is immersed in the hydraulic medium together with a special liquid-immersed motor imported from Italy. It can automatically adjust the hydraulic flow according to the system flow demand, while reducing noise and avoiding vacuuming at low temperatures. Protect and extend equipment life. When the hydraulic power source is working at full load, the audible noise at a distance of 1 meter does not exceed 65 decibels, which meets the on-site requirements of the laboratory and does not require a separate sound insulation device or oil source room.
* hydraulic power source can be on and off manually. Meanwhile, the controller can independently control the start and stop of the hydraulic oil source and the high and low oil pressure working conditions. It is equipped with a heat exchanger with a temperature regulating valve. When the hydraulic source encounters abnormal conditions such as too high oil temperature, too low oil level, or motor overcurrent, the hydraulic system has a self-protection function.
* Total power45kW, AC 380V, three-phase
* Filtration system adopts three-stage filtration: oil pump suction port, 100μ; Oil source outlet, filtration accuracy 3μ; Relay
voltage regulator module, filtering accuracy 3μ.
* High and low pressure switching valve group is used to start and stop the hydraulic system.
* Has overheat protection, overcurrent protection, high and low pressure protection, overtemperature protection, flow protection, liquid level protection and other functions.
* The pump station is about 35% more energyefficient than the conventional pump station (quantitative gear pump)
* Fully enclosed standard servo fuel tank. With Siemens PLC for temperature measurement and alarm; air filter device, oil level display and alarm, self-diagnosis and abnormal shutdown and other functions;
