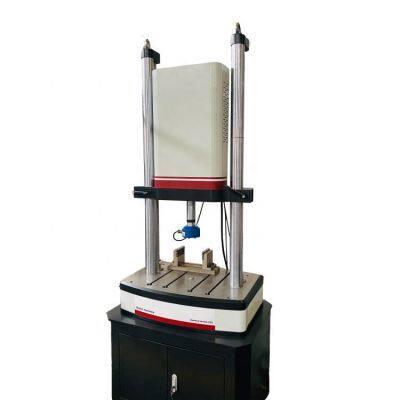

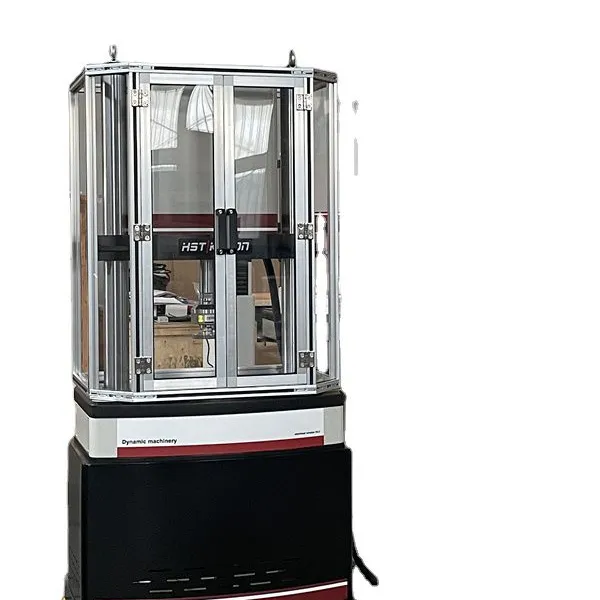

220V Computer-Controlled Universal Dynamic/Fatigue Testing Machine With 1 Year Warranty

Hst Group Co.,ltd. Gold Verified Supplier

1Yr

US$ 599 - 6999 MOQ: 1 Set

Key Specifications

Type:

Testing Machine

Accuracy:

+-0.01

brand name:

HST

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Accuracy +-0.01

brand name HST

place of origin Shandong, China

Application Tensile Testing, Strength Testing, Compression Testing

customized support OEM, ODM, OBM

power 220V

Protection Class IP55

Voltage 220 V, 380 V, 240 V, 110 V, 415 V

warranty 1 Year

Logo/graphic design Hot Stamping

Load Capacity(kN) 25

Load ±1.0% of Reading

Displacement ±1.0% FS of Each File

Deformation ±1.0% of Reading

Range Of Frequency 0.1~15Hz/ 20Hz/50Hz

Stroke of Piston(mm) ±50 or As customer requirement

Distance Between Columns(mm) 500 or As customer requirement

Distance Between Grips(mm) 50-600 or As customer requirement

Power 380V three phase or As customer requirement

Certificate CE

Shock absorber fatigue testing machine

Model		HWS-50	HWS-100	HWS-200	HWS-250
Load Capacity(kN)	Static	50	100	200	250
1.1	Dynamic	±40	±80	±160	±160
Measurement Accuracy	Load	±1.0% of Reading
1.2	Displacement	±1.0% FS of Each File
1.3	Deformation	±1.0% of Reading
Range Of Frequency		0.1~15Hz / 20Hz / 50Hz
Stroke of Piston(mm)		±50	±50	±75	±75
Distance Between Columns(mm)		500	565	700	700
Distance Between Grips(mm)		50~600
Specification of constant voltage servo pump station		flow≥37L/min, 21Mpa, 380V three phase
