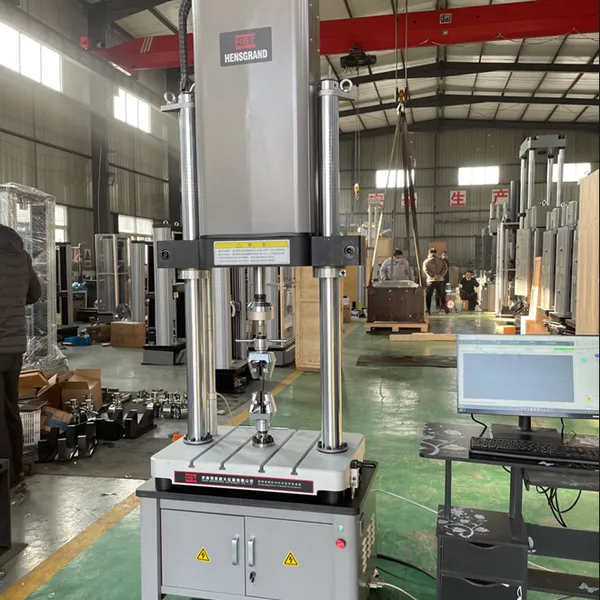

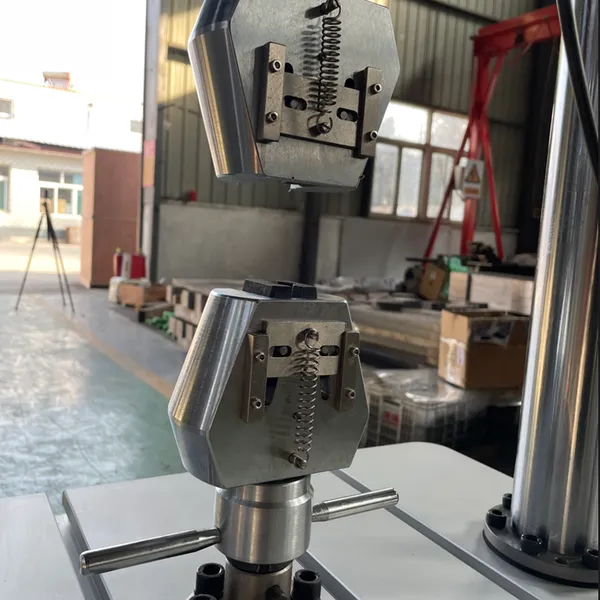

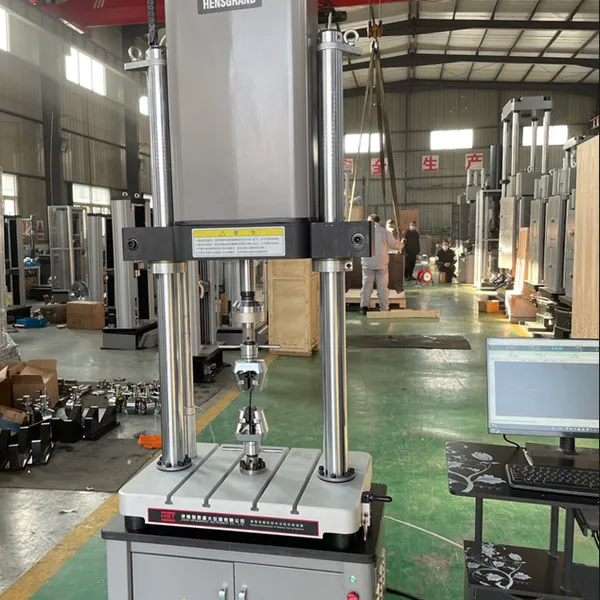

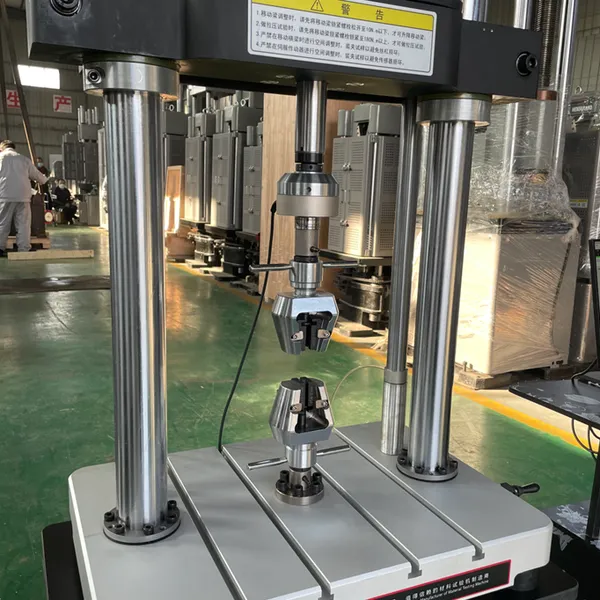

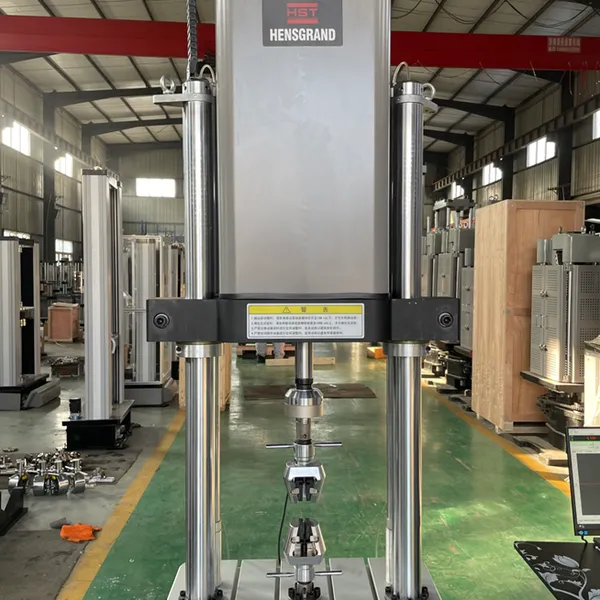

Fatigue Testing Machine Fatigue Tester Device Analyzer Instrument Equipment for Strength Compression Endurance
US$ 22000 - 29000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
0.5class, ±0.5%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-EFT1A 5kn Electronic Dynamic and Static Universal Testing MachineUS$ 22000 - 29000MOQ: 1 Set -
HST-EFT5A 5kn Electronic Dynamic Static Fatigue Durability TesterUS$ 22000 - 29000MOQ: 1 Set
-
HST-EFT20A Electronic Dynamic Static Fatigue Testing Equipment High Quality Machine for Evaluating Material's EnduranceUS$ 22000 - 29000MOQ: 1 Set
-
500KN PLG-500C 500kn Electromagnetic Resonance High Frequency Fatigue TesterUS$ 45000 - 50000MOQ: 1 Set
-
High Frequency Electromagnetic Dynamic Fatigue Testing Machine/High Frequency Electromagnetic Testing MachineUS$ 69979.00MOQ: 1 Set
Accuracy
0.5class, ±0.5%
brand name
HST
place of origin
Shandong, China
Application
fatigue test
customized support
OEM, ODM, OBM
power
1.5kw, Electronic
Protection Class
IP55
Voltage
220 V
warranty
1 Year
Logo/graphic design
Hot Stamping
resolution
0.001mm
Test range
0.2-100%FN
amplitude
±75
Distance Between Columns(mm)
550
Power
220V three phase
Size
1500*550*1700mm
column
double
Product name
5KN electronic Dynamic fatigue tester
1KN electronic Dynamic fatigue tester
|
Model |
HWS-50 |
HWS-100 |
HWS-200 |
HWS-250 |
|
|
Load Capacity(kN)
|
Static
|
50 |
100 |
200 |
250 |
|
1.1 |
Dynamic |
±40 |
±80 |
±160 |
±160 |
|
Measurement
Accuracy
|
Load
|
±1.0% of Reading |
|||
|
1.2 |
Displacement |
±1.0% FS of Each File |
|||
|
1.3 |
Deformation |
±1.0% of Reading |
|||
|
Range Of Frequency
|
0.1~15Hz / 20Hz / 50Hz |
||||
|
Stroke of Piston(mm) |
±50 |
±50 |
±75 |
±75 |
|
|
Distance Between Columns(mm)
|
500 |
565 |
700 |
700 |
|
|
Distance Between Grips(mm)
|
50~600 |
||||
|
Specification of constant voltage servo pump station |
flow≥37L/min, 21Mpa, 380V three phase |
||||
|
|
|
|
|
