HST PLG-100C 10T 100KN Computer Control High Frequency Fatigue Testing Machine 100KN High Frequency Fatigue Testing Machine
US$ 41000 - 45600
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 1%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-P20,100hz 20kN Electro-hydraulic Servo Dynamic Static Fatigue Testing System 20kn 25kN 50kn Fatigue Testing MachineUS$ 69880 - 77650MOQ: 1 Set -
HST-HFT2500A 2500kN Hydraulic Servo Fatigue Testing Machine High-Dynamic Material & Component Testing Atigue Testing MachineUS$ 1399580.00 - 1469559.00MOQ: 1 Set
-
HST-HFT100C 100kN Electro-hydraulic Servo Dynamic Static Fatigue Testing System 100kN Fatigue Testing MachineUS$ 423372.95 - 470258.88MOQ: 1 Set
-
HST-HFT100B 100kN Electro-hydraulic Servo Dynamic Static Fatigue Testing System 100kN Fatigue Testing MachineUS$ 362491.22 - 403079.04MOQ: 1 Set
-
HST-HFT50B 50kN Electro-hydraulic Servo Dynamic Static Fatigue Testing System 50kN Fatigue Testing MachineUS$ 342897.10 - 394681.56MOQ: 1 Set
Accuracy
≤± 1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/KW
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Product name
Computer Control High Frequency Fatigue Testing Machine
Model
HST PLG-100C
Max. test load
100kN
Max single-track pulsation test load
100kN
Max. Dynamic test load
±50KN
Load measuring range
1%-100%FS
Static indication accuracy
±1%
Dynamic loading accuracy
±1%
Frequency
50~250hz
Power Supply
AC220V±10%, 50HZ

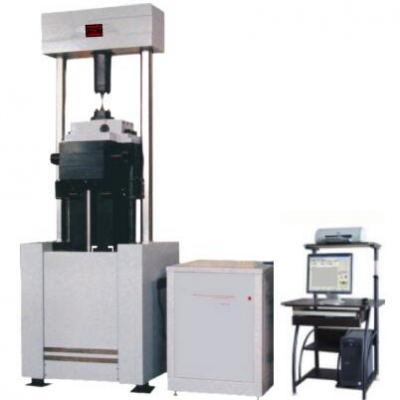

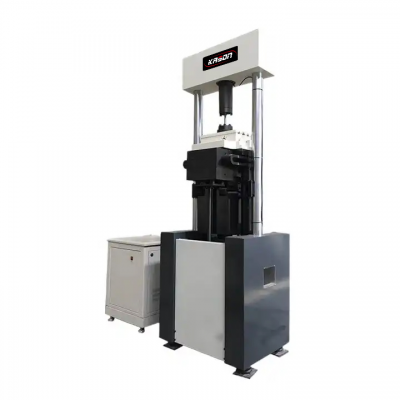

HST PLG-100C 100kN Computer Control
Electromagnetic Resonance
High Frequency Fatigue Testing Machine
High Frequency Fatigue Testing Machine
If you want to know more models, price please contact Lisa:
Email: lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application:
PLG Series Electromagnetic Resonance Fatigue Testing Machine is used for fatigue tests on metallic materials and components under tension, compression or reversal load. Equipped with relevant grips, three-point bending test, four-point bending test, tension and compression of sheet sample test, tension and compression of circle test, gear wheel, bolt, connecting rod, roller chain, crackle expanding tests can be done on this machine. The series of testing machines undergo optimization design, the structure is rational. The automatic controlled system adopts the advanced pulse wide control system and new-type power amplifier to improve the reliability of the electric system .
It has high efficiency, easy to shake, no-stop shake, low energy consummation, high controlling accuracy, small fluctuation. The machine is complied with DIN50100.
PLG Series Electromagnetic Resonance Fatigue Testing Machine is used for fatigue tests on metallic materials and components under tension, compression or reversal load. Equipped with relevant grips, three-point bending test, four-point bending test, tension and compression of sheet sample test, tension and compression of circle test, gear wheel, bolt, connecting rod, roller chain, crackle expanding tests can be done on this machine. The series of testing machines undergo optimization design, the structure is rational. The automatic controlled system adopts the advanced pulse wide control system and new-type power amplifier to improve the reliability of the electric system .
It has high efficiency, easy to shake, no-stop shake, low energy consummation, high controlling accuracy, small fluctuation. The machine is complied with DIN50100.
Specifications:
Model | HST PLG-100C | |
Max. test load | 100KN | |
Max single-track pulsation test load | 100kN | |
Max. Dynamic test load | ±50KN | |
Load measuring range | 1%-100%FS | |
Static indication accuracy | ±1% | |
Dynamic loading accuracy | ±1% | |
Frequency | 50~250hz | |
Max. distance between grips | 500mm | |
Max. distance between columns | 500mm | |
Load frame dimension | 780*630*2250mm | |
Control dimension | 550*550*750mm | |
Weight | 2500KG | |
Work Environmental temperature | 5℃-40℃ | |
Power Supply | AC220V±10%, 50HZ | |
Optional: high temperature furnace and high temperature extensometer, fatigue crack rate test; | ||
Other tensile grip (optional)
Tensile grips for round specimen & flat specimen /Compression platen / 3 points flexure fixture
Main features:
1 The load drive is based on electric magnetic resonance, the loss of energy is very small, the test load is no wear, and the
equipment is simple maintenance;
2 High frequency, short test period, greatly saving the test time
No need to adjust the resonant magnetic gap
3 Automatic calibration of the accuracy ; Automatic zero;
4 Static test is run by servo motor, reducer and precision ball screw, The dynamic test by electromagnetic exciter, which is
supported by two sets of systems and can be loaded independently without interference
Company Profile
Recommend Products
50N-5KN Single Column Universal Testing Machine | Electronic Universal Testing Machine with 10kN Pneumatic Grips | Electronic Universal Testing Machine with Hydraulic grips |
Electronic Universal Testing Machine with Temperature Chamber | 50kN -1000kN Hydraulic Dynamic Static Fatigue Testing Machine | 100kN -2000kN Servo Hydraulic Universal Testing Machine |

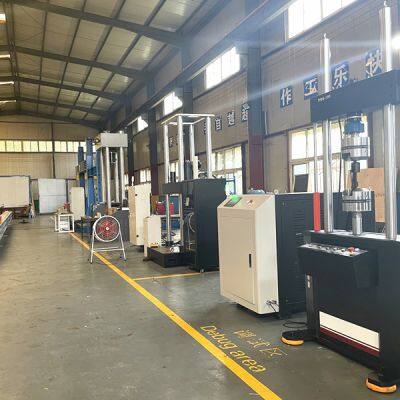

Customer Photos
