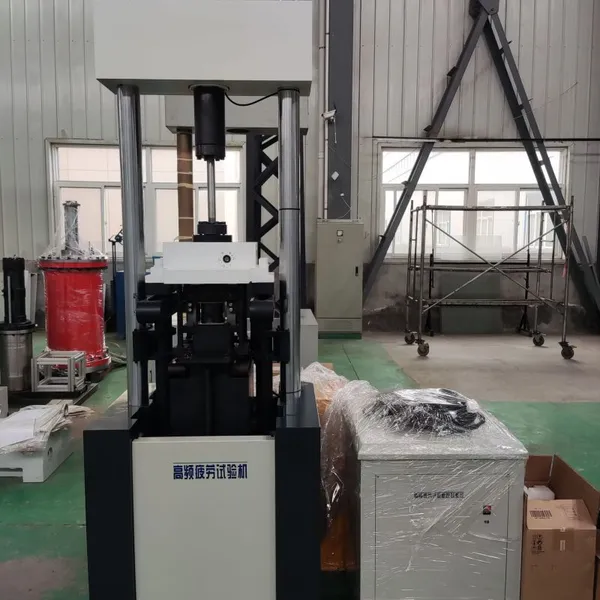

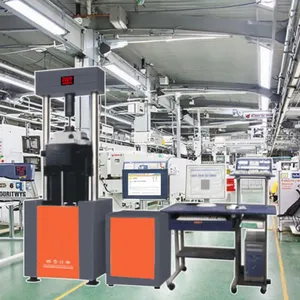

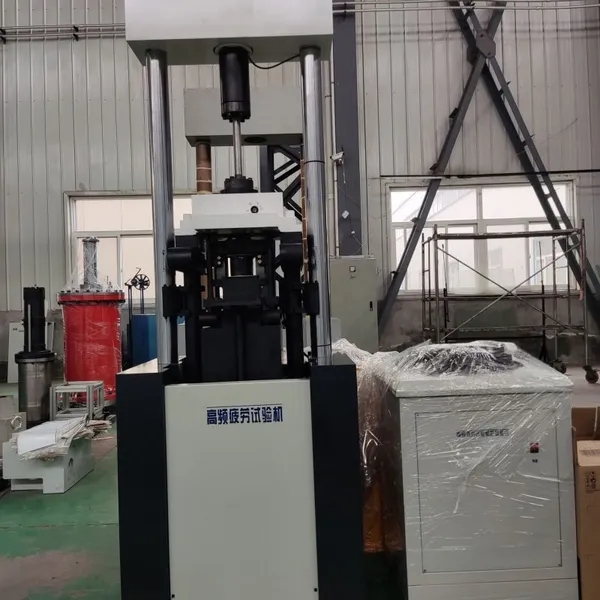

High Frequency Electromagnetic Dynamic Fatigue Testing Machine/High Frequency Electromagnetic Testing Machine
US$ 69979.00
≥1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
0.5
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST 30N.m 60N.m 120N.m 200N.m High Temperature Rotational Bending Fatigue Dynamic Static Testing MachineUS$ 55983.20 - 69979.00MOQ: 1 Set -
3000nm Electro-Hydraulic Servo Torsion Fatigue Testing MachineUS$ 33939.82 - 34289.71MOQ: 1 Set
-
Crack Growth Fatigue Test and Crack-Tip Opening Displacement Test Dynamic Testing SystemUS$ 48000 - 50000MOQ: 1 Set
-
HST PLG-100C 10T 100KN Computer Control High Frequency Fatigue Testing Machine 100KN High Frequency Fatigue Testing MachineUS$ 41000 - 45600MOQ: 1 Set
-
HST-P20,100hz 20kN Electro-hydraulic Servo Dynamic Static Fatigue Testing System 20kn 25kN 50kn Fatigue Testing MachineUS$ 69880 - 77650MOQ: 1 Set
Accuracy
0.5
brand name
HST
place of origin
Shandong, China
Application
Tensile Testing, Compression Testing
customized support
OEM, ODM, OBM
power
/
Protection Class
/
Voltage
415 V, 110 V, 240 V, 380 V, 220 V
warranty
1 YEAR
Logo/graphic design
Hot Stamping, Transfer Sticker, Laser Engraving
Load Capacity(kN)
20
Load
±1.0% of Reading
Displacement
±1.0% FS of Each File
Deformation
±1.0% of Reading
Range Of Frequency
0.1~15Hz / 20Hz / 50Hz
Stroke of Piston(mm)
±50
Distance Between Columns(mm)
500
Distance Between Grips(mm)
50-600
Power
380V three phase
Certificate
CE
High frequency electromagnetic dynamic fatigue testing machine/High frequency electromagnetic testing machine
|
Model |
HWS-50 |
HWS-100 |
HWS-200 |
HWS-250 |
|
|
Load Capacity(kN)
|
Static
|
50 |
100 |
200 |
250 |
|
1.1 |
Dynamic |
±40 |
±80 |
±160 |
±160 |
|
Measurement
Accuracy
|
Load
|
±1.0% of Reading |
|||
|
1.2 |
Displacement |
±1.0% FS of Each File |
|||
|
1.3 |
Deformation |
±1.0% of Reading |
|||
|
Range Of Frequency
|
0.1~15Hz / 20Hz / 50Hz |
||||
|
Stroke of Piston(mm) |
±50 |
±50 |
±75 |
±75 |
|
|
Distance Between Columns(mm)
|
500 |
565 |
700 |
700 |
|
|
Distance Between Grips(mm)
|
50~600 |
||||
|
Specification of constant voltage servo pump station |
flow≥37L/min, 21Mpa, 380V three phase |
||||
|
|
|
|
|
