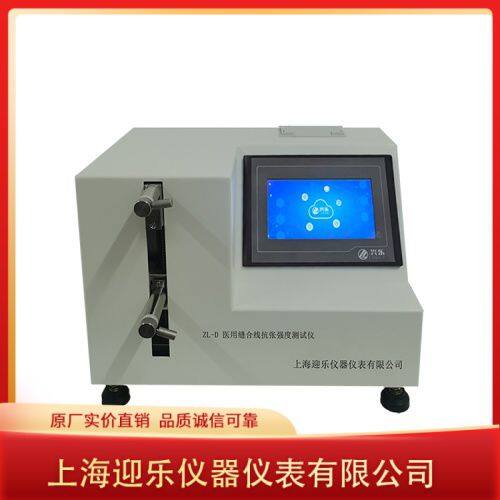

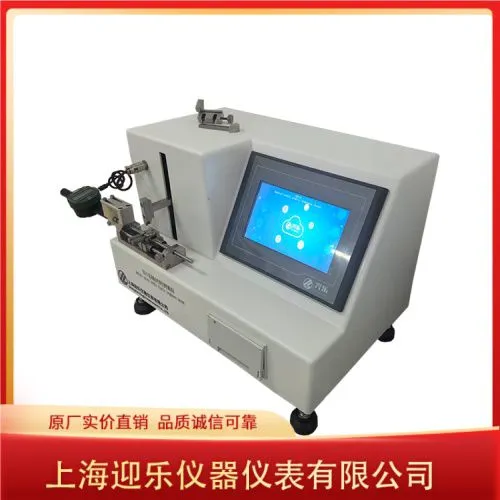

Medical Suture Tensile Strength Tester
Technical indicators:
Operation interface: Simplified Chinese/English
Testing standard: YY1116-020 "Absorbable Surgical Sutures"
YY0166-2020 "Sutured Needles with Thread"
Display 7-inch K600 core/matrix 65-color 800*480 resolution touch screen display, dynamic display of load values by P control system; Operation interface options: Chinese/English/Chinese and English switch; Digital closed-loop control, AD acquisition speed of 500KHz, internal code 00,000; High-precision clock chip, power-off storage; Overload alarm shutdown protection; Touch operation: Nominal specifications, suture classification, set, print, test, up, down, time, calibration. Automatic loading tension, real-time display of curves, automatic collection of maximum tensile strength data.
Program controller: PLC ARM,
Sensor: High-precision force sensor with software and hardware protection functions
Nominal specifications: 12-0..10 All kinds of medical sutures
Tension test range: Customized 0.1N～250N, error within ±1%, resolution0.01N;
Test time: Customized 1～999S set arbitrarily, error within ±0.5S;
Tension loading: Customized 300mm/min. Error within ±5mm/min
Printing method: Built-in micro-needle printer
Test data Built-in automatic collection of tensile strength test data and automatic calculation of data average and deviation values
Power supply: AC90V-240V/5Hz
Net weight: 12kg
Dimensions: 400×240×240 (mm
Manufacturer introduction: Shanghai Yingle Instrument Co., Ltd. (formerly Shanghai Xingle) is located in Shanghai, the manufacturing capital. The company was founded in 1993. It is a manufacturer of physical performance testing equipment for medical consumables integrating design, research and development, and sales. The company's products mainly serve third-party testing institutions, medical consumables production unit quality laboratories and R&D centers, etc.; the company has more than 30 years of industry experience, and is the first domestic disposable medical device physical performance testing instrument manufacturer. It is also the first company to obtain CMC certification. The company mainly produces medical stainless steel needle tube testing equipment, medical syringe testing equipment, medical infusion set testing equipment, medical suture needles, thread testing equipment, 6% Luer connector testing equipment, etc. Technical indicators are updated at any time with the industry standards for medical pharmaceutical packaging materials to ensure that the company's products serve customers with the latest standards.
