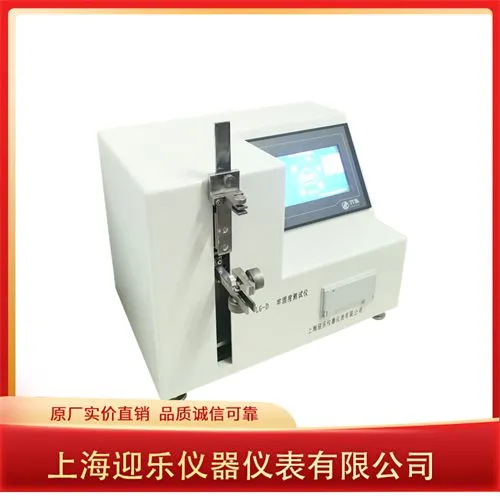

Medical Injection Needle Tip Tensile Tester and Connection Firmness Tester
Technical indicators:
Operation interface: Simplified Chinese/English
Test standard:
GB15811-2016 "Disposable Sterile Injection Needle"
YY0321 fracture force test
display: 7-inch K600+ core/dot matrix 65-color 800*480 resolution touch screen display, PLC control system dynamically displays the loading force value; digital closed-loop control, AD acquisition speed is 500KHz, internal code 500,000; high-precision clock chip, power-off storage; overload alarm shutdown protection; touch operation: nominal specifications, test, uplink, downlink, time, calibration. Real-time display of pulling force.
Test items: used to test the breaking force of medical catheters, the connection firmness of catheters and catheter connectors, the connection firmness of medical needle hubs and needle tubes, lining cores and lining core seats, etc. Tensile tests.
Programmable controller: PLC+ARM,
breaking force test range: customized 0~80N, error not greater than ±1%, resolution 0.01N.
Time setting: customized 1-999S, the error is not greater than ±0.5S.
Speed setting: customized 50mm/min~500mm/min, the error is not greater than ±5%. ;
Sensor: high-precision force sensor (software and hardware protection function)
Printing method: airborne micro dot matrix printer Test data: airborne automatic collection of firmness test data, maximum firmness value, average value, deviation value, etc.
Machine power: 200W
Power supply: AC90V-240V/50Hz
Net weight: 20kg
Dimensions: 400×240×240 (mm)
Connection Force between Hypodermic Needle and Needle Hub/cap
Manufacturer introduction: Shanghai Yingle Instrument Co., Ltd. (formerly Shanghai Xingle) is located in Shanghai, the manufacturing capital. The company was founded in 1993. It is a manufacturer of physical performance testing equipment for medical consumables integrating design, research and development, and sales. The company's products mainly serve third-party testing institutions, medical consumables production unit quality laboratories and R&D centers, etc.; the company has more than 30 years of industry experience, and is the first domestic disposable medical device physical performance testing instrument manufacturer. It is also the first company to obtain CMC certification. The company mainly produces medical stainless steel needle tube testing equipment, medical syringe testing equipment, medical infusion set testing equipment, medical suture needles, thread testing equipment, 6% Luer connector testing equipment, etc. Technical indicators are updated at any time with the industry standards for medical pharmaceutical packaging materials to ensure that the company's products serve customers with the latest standards.
FAQ
Are you a manufacturer or trading company?
We are a Chinese manufacturer based in Shanghai, China, focusing on medical testing equipment for more than 30 years. We mainly produce medical needle testers, medical syringe testers, infusion set testers, suture needle testers, suture testers, Luer syringe connector comprehensive testers, and medical device flow testers.
How about the installation?
The user's manual specifies the installation requirements with details. We will advise the relative information in advance, such as power supply, space, required temperature, humidity, etc.
Do you have after-sales service?
We will carry out the equipment inspection before delivery. If the machine does not work properly, we can make a remote control service to help dealing with the failure. We promise to reply within 24 hours and provide solutions within 2 working days.
How about the warranty?
Our warranty is 12 months, lifelong free of charge! User just bear the materials cost and express charge out-of-warranty period.
How long does the delivery time?
For the regular machine, 5-7 working days. For the customized one, 30 days or so.
