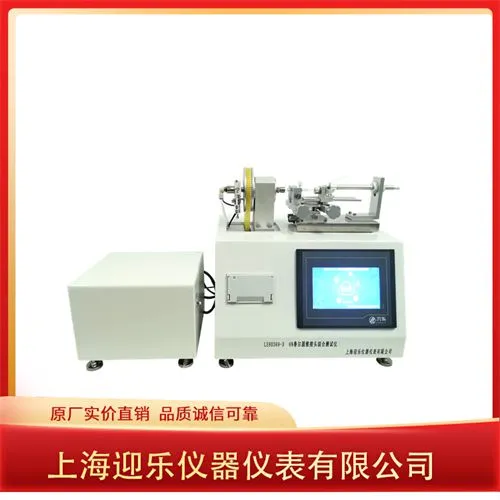

Medical suture wire diameter tester Syringe Needle Cone Joint Performance Comprehensive Test Instrument
Technical indicators:
Operation interface: Simplified Chinese/English
Test standards: YY/T0916.20-2019 "Small bore connectors for medical liquids and gases Part 20: General test methods",
ISO 80369.20-2015 "Small bore connectors for liquids and gases in health care applications Part 20: General test methods",
ISO 594.1 "Syringes, needles and other medical devices with 6% (Luer) tapered connectors Part 1: General requirements",
ISO 594.2 "Syringes, needles and other medical devices with 6% (Luer) tapered connectors Part 2: Locking connectors",
GB/T 1962.1 "Syringes, needles and other medical devices with 6% (Luer) tapered connectors Part 1: General requirements",
GB/T 1962. 2 "Syringes, needles and other medical devices 6% (Luer) conical connectors Part 2: Locking connectors"

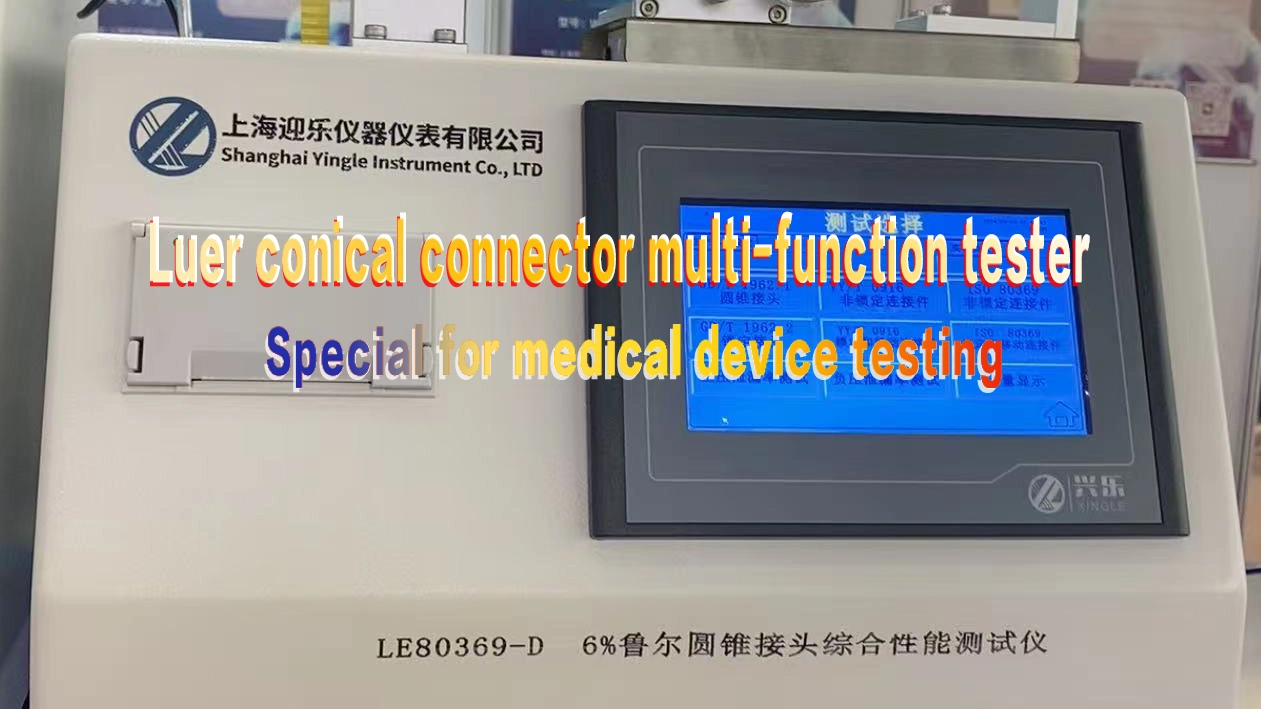

Display: 7-inch K600+ core/dot matrix 65-color 800*480 resolution touch screen display, PLC control system dynamically displays the loading force value; optional operating interface: Chinese/English/Chinese-English switching; digital closed-loop control, AD The acquisition speed is 500KHz, the internal code is 500,000; high-precision clock chip, power-off storage; overload alarm shutdown protection; and during the test process, the axial force, torque, holding time, internal water pressure, separation force, positive and negative pressure leakage rate, etc.
exerted by the assembly are displayed. GB/T 1962 test items: liquid leakage, air leakage, separation force, unscrewing torque, ease of assembly, stress cracking, and overload resistance. ISO80369/YY/T0916 test items: pressure attenuation leakage, positive pressure droplet leakage, negative pressure air leakage rate, stress cracking, resistance to axial load separation, resistance to unscrewing torque separation, and resistance to overload (sliding wire) performance.
Programmable controller: PLC+ARM
Sensor: High-precision force sensor with software and hardware protection function
Axial force: 0N～80N, error not greater than ±2%;
Internal water pressure: 0kPa～400kPa can be set arbitrarily, error not greater than ±0.5%;
Separation force: 10N～70N error not greater than ±2%;
Holding time: 1～60s, error not greater than ±0.5s arbitrarily set;
Torque: 0.010Nm～0.500Nm
Negative pressure: -10Kpa～-94Kpa (adjustable) error not greater than ±1%
Negative pressure leakage rate resolution: -0.0001Pa.m3/s
Positive pressure leakage rate resolution: 0.0001Pa.m3/s
Printing method: Airborne micro dot matrix printer
Power supply: AC90V-240V/50Hz
A set of fixtures (can be customized) Comes with positive and negative pressure air sources.
Machine power: 1500W.
Net weight: 20Kg.
Overall dimensions: 440×350×384 (mm)
Shanghai Yingle manufacturer introduction：Shanghai Yingle Instrument Co., Ltd., located in Shanghai, is a professional instrument supplier integrating R&D, production, sales and service. With more than 30 years of technical experience, it is the first company to obtain CMC and is committed to providing high-precision, reliable testing instruments and R&D customized solutions to global customers. Our products include medical injection needle testers, syringe testers, infusion needle testers, infusion set testers, suture needle testers, suture line testers, 6% Luer conical connector comprehensive testers, indwelling needle testers, blood collection needle testers, acupuncture needle testers, needle tube rigid Testers, toughness testers, firmness testers, tightness positive and negative pressure testers, seal leakage testers, and other instruments. With a strong R&D team and advanced production technology, Yingle Instruments continues to launch new products that meet market demand and meet the diverse needs of customers. At the same time, we attach great importance to after-sales service and provide customers with timely and professional technical and after-sales support to ensure that customers have a worry-free experience during use.
FAQ
Are you a manufacturer or trading company?
We are a Chinese manufacturer based in Shanghai, China, focusing on medical testing equipment for more than 30 years. We mainly produce medical needle testers, medical syringe testers, infusion set testers, suture needle testers, suture testers, Luer syringe connector comprehensive testers, and medical device flow testers.
How about the installation?
The user's manual specifies the installation requirements with details. We will advise the relative information in advance, such as power supply, space, required temperature, humidity, etc.
Do you have after-sales service?
We will carry out the equipment inspection before delivery. If the machine does not work properly, we can make a remote control service to help dealing with the failure. We promise to reply within 24 hours and provide solutions within 2 working days.
How about the warranty?
Our warranty is 12 months, lifelong free of charge! User just bear the materials cost and express charge out-of-warranty period.
How long does the delivery time?
For the regular machine, 5-7 working days. For the customized one, 30 days or so.
