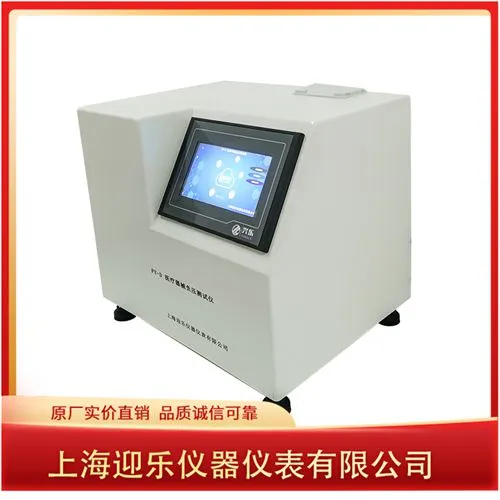

Medical equipment negative pressure tester
Technical indicators:
Operation interface: Simplified Chinese/English
Testing standard: GB15810-201 "Disposable Sterile Syringe"
ISO7886-1-2017 "Disposable Sterile Syringe"
GB8368-218 "Disposable Gravity Infusion Set"
Display: 7-inch K600 core/matrix 65-color 800*80 resolution touch screen display, PLC control system dynamically displays load value; Operation interface options: Chinese/English/Chinese and English switch; Digital closed-loop control, AD speed of 500KHz, internal code 500,000; High-precision clock chip, power-off storage; Overload alarm shutdown protection
Programmable controller: PLC ARM,
Sensor: High-precision load sensor with software and hardware protection functions
Negative pressure detection: Custom -93Kpa within ±1%
Negative pressure output: Custom -93Kpa ±1%;
Test time: Custom 1S ~ 10min set arbitrarily, ( measuring system maintains a negative pressure of within 1 minute without drift ±0.5kpa)
Printing method: Built-in micro-needle printer
Overall power 800W
Power supply: AC90V-240V/50Hz
Net weight: 10kg
Dimensions: 40×290×240 (mm)
Yingle Instrument & Instrument (Shanghai) Co., Ltd. was established in 1993, originally known Shanghai Xingle, and is the first domestic manufacturer of physical performance testing instruments for disposable medical devices, with more than 30 years of technical research and development and production experience The company specializes in the research, development, and sales of instrument and instrument products. It is the first company to obtain CMC certification. The company's headquarters is located Shanghai, China, and it has a modern production base and research and development center. As a technology-based enterprise, Shanghai Yingle Instrument & Instrument Co.,. is committed to providing customers with high-quality, reliable, and stable instrument and instrument products. The company has a professional R&D team that continuously innovates and improves products meet the changing needs of customers. The company adheres to the business philosophy of "innovating through technology and creating value for customers", and continuously improves product quality and technical. We will continue to work hard to become a leading enterprise in the domestic and foreign instrument and instrument industry, providing customers with better products and services.
FAQ
Are you a manufacturer or trading company?
We are a Chinese manufacturer based in Shanghai, China, focusing on medical testing equipment for more than 30 years. We mainly produce medical needle testers, medical syringe testers, infusion set testers, suture needle testers, suture testers, Luer syringe connector comprehensive testers, and medical device flow testers.
How about the installation?
The user's manual specifies the installation requirements with details. We will advise the relative information in advance, such as power supply, space, required temperature, humidity, etc.
Do you have after-sales service?
We will carry out the equipment inspection before delivery. If the machine does not work properly, we can make a remote control service to help dealing with the failure. We promise to reply within 24 hours and provide solutions within 2 working days.
How about the warranty?
Our warranty is 12 months, lifelong free of charge! User just bear the materials cost and express charge out-of-warranty period.
How long does the delivery time?
For the regular machine, 5-7 working days. For the customized one, 30 days or so.
