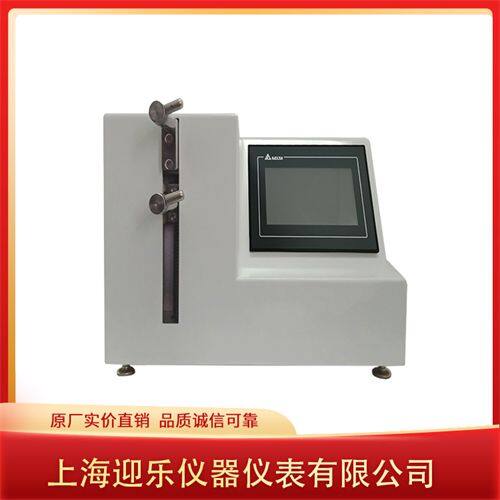

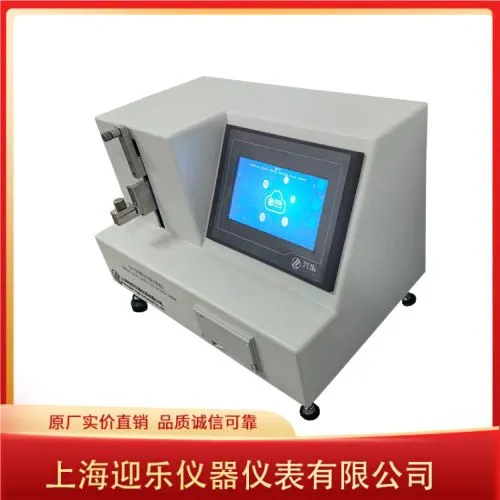

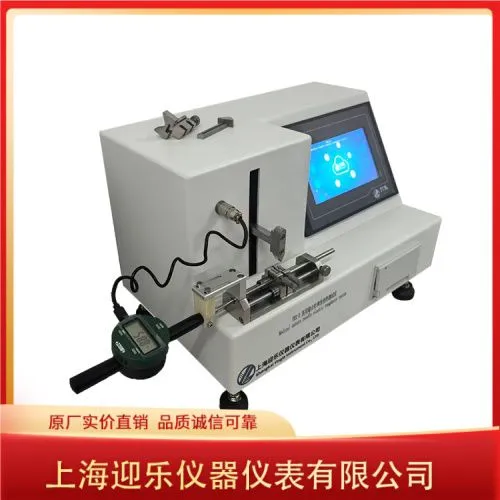

Medical suture tensile strength tester
Technical Specifications:
Operation Interface: Simplified Chinese/English
Test Standards: YY1116-2020 "Absorbable Surgical Sutures"
YY0166-2020 "Suture needles with thread"
Display: 7-inch K600+ core/65-color matrix 800*480 resolution touchscreen display, PLC control system dynamically displays the loading force value; Optional operation interface: Chinese/English/Bilingual switch; Digital closed-loop control, AD collection speed of 500KHz, internal code of 500,000; High-precision clock chip, power-off storage; Overload alarm and shutdown protection; Touch operation: nominal specifications, suture classification, set load, print, test, up, down, time, calibration. Automatically load tension, display real-time curves, automatically collect maximum tensile strength data.
Programmable Logic Controller: PLC+ARM
Sensors: High-precision force sensors with both hardware and software protection functions
Nominal Specifications: 12-0……10, all types of medical suture threads
Tensile Test Range: Customizable 0.1N～250N, error not greater than ±1%, resolution 0.01N;
Test Time: Customizable from 1 to 999S, error not greater than ±0.5S;
Tensile Loading Speed: Customizable 300mm/min. Error not greater than ±5mm/min
Printing Method: Onboard mini needle printer
Test Data: Onboard automatic collection of tensile strength test data and automatic calculation of average value and deviation value
Power Supply: AC90V-240V/50Hz
Net Weight: 12kg
Dimensions (W×D×H): 400×240×240 (mm)
Manufacturer introduction: Shanghai Yingle Instrument Co., Ltd. (formerly Shanghai Xingle Telecommunication Equipment Co., Ltd., established in 1993) is the earliest domestic manufacturer specializing in the production of disposable syringes and injection needle professional testing instruments. It is also the first (shou) company to obtain CMC certification. After nearly 30 years of market expansion, the company has become an industry-recognized professional supplier of all-round solutions integrating R&D, design, production, sales and service with its standardized management processes, advanced and cutting-edge production technology, innovative business philosophy, and high-quality and complete service system.
