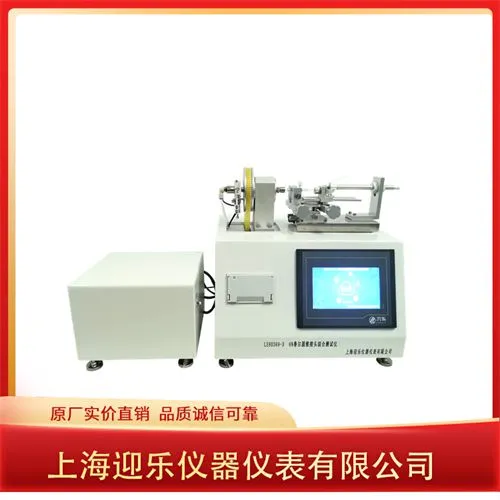

Help CenterLuer Connector Liquid Leak Tester
Related Products
-
6% Luer Conical Connector Comprehensive TesterUS$ 7000MOQ: 1 Piece -
Medical Injection Needle Tip Puncture Force Testing InstrumentNegotiableMOQ: 1 Piece
-
Medical Syringe (needle) Rigidity TesterUS$ 30000 - 48000MOQ: 1 Combo
-
Medical Injection Needle Tip Tensile Tester and Connection Firmness TesterUS$ 3000MOQ: 1 Combo
-
Medical Syringe (needle) Toughness TesterNegotiableMOQ: 1 Piece
Test indicators:
Operation interface: Simplified Chinese/English
Test standards: YY/T096.20-2019 "Small-diameter connectors for medical liquids and gases Part 20: General test methods",
ISO 8039.20-2015 "Small-bore connectors for liquids and gases in health care applications Part 20: General test methods",
ISO 94.1 "Conical connectors for syringes, needles and other medical devices with a 6% (Luer) taper Part 1: General requirements"
ISO 594.2 "Conical connectors for syringes, needles and other medical devices with a 6% (Luer) taper Part 2:ing connectors",
GB/T 1962.1 "Conical connectors for syringes, injection needles and other medical devices with a 6% (uer) taper Part 1: General requirements",
GB/T 1962.2 "Conical connectors for syringes, injection needles and other devices with a 6% (Luer) taper Part 2: Locking connectors"
Display: 7-inch K600 core/matrix 5-color 800*480 resolution touch screen display, PLC control system dynamically displays load force value; Operation interface options: Chinese/English/Chinese and switch; Digital closed-loop control, AD acquisition speed of 500KHz, internal code 500,000; High-precision clock chip,-off storage; Overload alarm shutdown protection; and display assembly applied axial force, torque, holding time, internal water pressure, separation force, positive and negative pressure leakage rate,. during the test.
GB/T 1962 test items: Leakage of liquid, leakage of gas, separation force, unscrewing torque, ease assembly, stress cracking, overload resistance.
ISO80369/YY/T0916 test items: Pressure decay leakage, positive pressure liquid drop leakage, pressure air leakage rate, stress cracking, resistance to axial load separation, resistance to unscrewing torque separation, overload (slip) performance.
Programmable controller: PLCARM
Sensor: High-precision force value sensor with software and hardware protection function
Axial force: 0N～80N, Error within ±2%;
water pressure: 0kPa～400kPa can be set arbitrarily, error within ±0.5%;
Separation force: 10N～70 Error within ±2%;
Holding time: 1～60s Error within ±0.5s can be set arbitrarily;
Torque: 0010N.m～0.500N.m
Negative pressure: -10Kpa～-94Kpa (adjustable) within ±1%
Negative pressure leakage rate resolution: -0.0001Pa.m3/s
Positive pressure leakage rate resolution: 0.0001Pa.m3/s
Printing method: Built-in miniature needle printer
Power supply: AC90V-240V/50HzFixture set (customizable)
With built-in positive and negative pressure air source
Overall power: 1500W
Net weight: 2Kg
Dimensions: 440×350×384 (mm)
Shanghai Yingle Instrument & Instrument Co., Ltd. (Formerly Shanghai Xingle) is located in the manufacturing - Shanghai. The company was established in 1993 and is a manufacturer of physical performance testing equipment for medical consumables that integrates design, research and development, and sales The company's products mainly serve third-party testing institutions, quality laboratories and research and development centers of medical consumables production units, etc. The company has more than thirty years industry experience and is the first domestic (shou) manufacturer of physical performance testing instruments for disposable medical devices. It is also the first (shou) company to obtain CMC. The company mainly produces medical stainless steel needle tube testing equipment, medical syringe testing equipment, medical infusion tube testing equipment, medical suture needle and thread testing equipment,6% luer connector fitting testing equipment, etc. Technical indicators are updated with the medical packaging industry standards at any time to ensure that the company's products serve customers with the standards.
FAQ
Are you a manufacturer or trading company?
We are a Chinese manufacturer based in Shanghai, China, focusing on medical testing equipment for more than 30 years. We mainly produce medical needle testers, medical syringe testers, infusion set testers, suture needle testers, suture testers, Luer syringe connector comprehensive testers, and medical device flow testers.
How about the installation?
The user's manual specifies the installation requirements with details. We will advise the relative information in advance, such as power supply, space, required temperature, humidity, etc.
Do you have after-sales service?
We will carry out the equipment inspection before delivery. If the machine does not work properly, we can make a remote control service to help dealing with the failure. We promise to reply within 24 hours and provide solutions within 2 working days.
How about the warranty?
Our warranty is 12 months, lifelong free of charge! User just bear the materials cost and express charge out-of-warranty period.
How long does the delivery time?
For the regular machine, 5-7 working days. For the customized one, 30 days or so.
