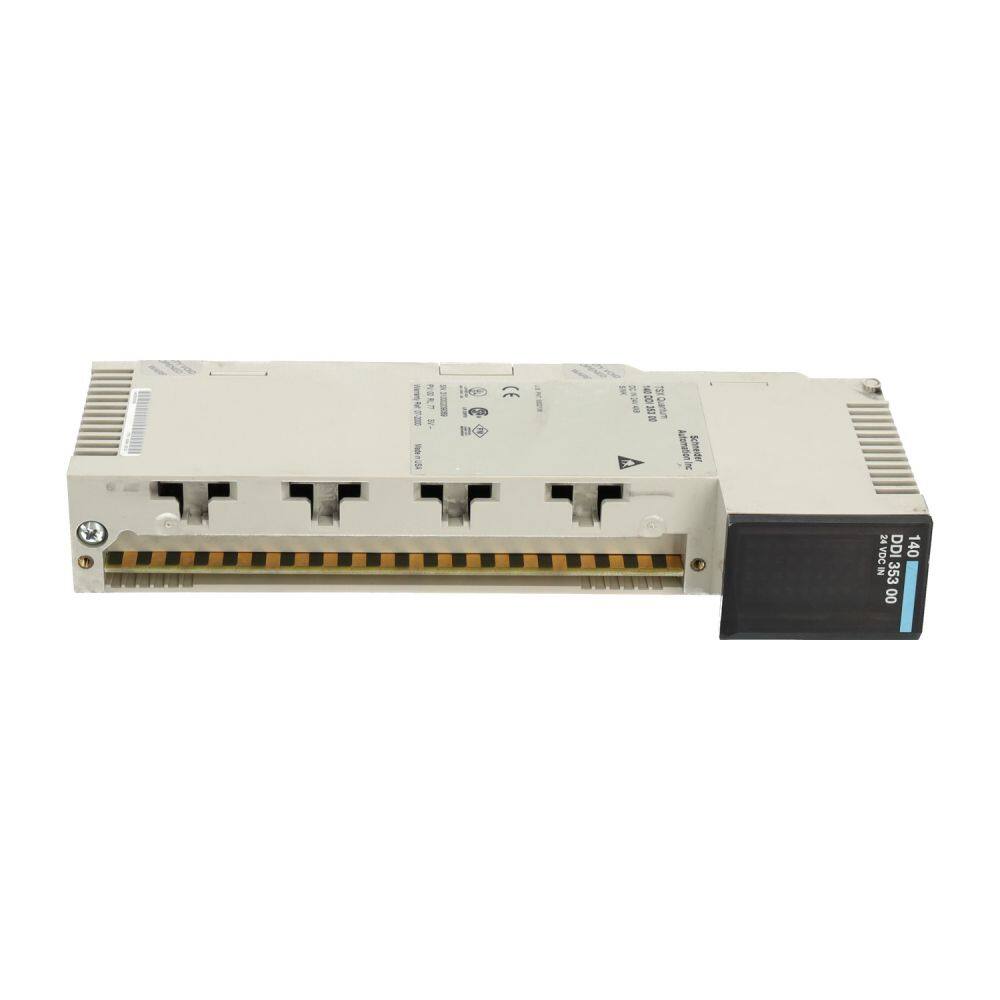

SCHNEIDER 140DDI35300 Discrete Input Module

I. Overview

The SCHNEIDER 140DDI35300 is a high-performance industrial-grade digital input module, and a core I/O component of the Modicon M340 series PLCs. As a signal acquisition unit in industrial control systems, this module is specifically designed to receive digital signals from industrial sites (such as on-off signals from sensors, limit switches, buttons, and other devices) and convert them into digital signals recognizable by PLCs, enabling real-time monitoring of the operating status of on-site equipment. It is widely used in industrial automation fields with strict requirements for signal acquisition reliability and anti-interference performance, including automobile manufacturing, food and beverage processing, chemical and pharmaceutical production, water treatment, and metallurgical smelting.

Adopting a modular design and an industrial-grade enhanced circuit architecture, the product features high channel density, fast input response speed, strong anti-interference capability, and convenient installation and maintenance. As a standard compatible module for the M340 series PLCs, it can be seamlessly integrated into the system. When used with the Unity Pro programming software, it enables rapid configuration and debugging, providing a highly stable and cost-effective solution for the signal acquisition link of industrial control systems.

II. Technical Parameters

III. Functional Features

• High-Density Channels & Flexible Grouping: It integrates 32 digital input channels, adopting a grouping design of 4 groups (8 channels each). Each group of channels can be independently configured with response time, filtering parameters, and diagnostic functions, facilitating differentiated settings based on the type of on-site equipment. The high channel density design allows a single module to replace multiple low-channel modules, significantly reducing the occupation of M340 rack slots and lowering system hardware costs and cabinet space requirements. Channel wiring uses spring terminals or screw terminals (depending on the model), supporting quick wiring and disconnection to improve installation efficiency.
•

• Configurable Response & Precise Acquisition: The input response time supports four configurable levels: 0.1ms, 1ms, 10ms, and 100ms. Users can flexibly adjust it via the Unity Pro software according to the signal type—selecting 0.1ms fast response for signals such as high-speed counting and fast limiting, and 10ms or 100ms response for signals such as ordinary buttons and status indicators to filter out interference. Each group of channels supports the synchronous acquisition function, ensuring that the acquisition time difference of 8 signals in the same group is ≤1μs, meeting the status monitoring needs of collaborative operations of multiple devices.
•

• Multiple Isolation & Strong Anti-Interference: It adopts a dual optical isolation design of "between channel groups + between groups and backplane", with an isolation voltage of 2500V AC, effectively blocking the transmission of interference signals between different channel groups and between the module and the PLC host. The module is equipped with input filtering circuits and surge suppression circuits inside, which can resist ±2kV surge impacts and ±15kV ESD interference, complying with the IEC 61000-4 series EMC standards. It can still stably acquire signals in strong interference environments such as frequency converters and motors, avoiding false triggers or signal loss.
•

• Comprehensive Diagnostics & Fault Early Warning: It has comprehensive diagnostic functions, which can real-time monitor the channel input status, power supply voltage, module communication status, and internal circuit faults. When a channel has an open circuit, short circuit, or overvoltage fault, the module uploads the fault information (including channel number and fault type) to the PLC host via the backplane bus, and lights up the fault indicator of the corresponding channel on the module panel. It supports channel disconnection diagnosis and power fault diagnosis, which can early warn potential faults and reduce downtime for maintenance.
•

• Convenient Integration & Operation & Maintenance: As a standard module of the M340 series, it can be directly inserted into the I/O slot of the M340 rack, and automatically complete power supply and communication via the backplane bus without additional wiring or adapters. Through the Unity Pro software, full-process digital operations such as module parameter configuration, channel mapping, and diagnostic information viewing can be realized. It supports online modification of configurations such as response time and filtering parameters without power-off and restart. The module panel is equipped with channel status indicators (green on indicates signal on, red on indicates fault), allowing maintenance personnel to intuitively troubleshoot problems.
•

• Wide-Temperature Resistance & High Reliability: It uses industrial-grade components and an enhanced PCB layout, with an operating temperature range covering -25℃-70℃, adapting to various environments such as cold workshops in northern regions, high-temperature workshops in southern regions, and outdoor control cabinets. The module has overvoltage and overcurrent protection functions. When the input voltage exceeds 30V DC, it automatically cuts off the input of the channel to avoid damage to internal circuits. The Mean Time Between Failures (MTBF) is ≥200,000 hours, meeting the requirements of long-cycle continuous operation in industrial applications.

IV. Working Principle

1. Signal Input & Preprocessing Stage: On-site industrial digital signals (such as sensor on-off signals and button signals) are connected to the 32 input channels of the module through terminals. Depending on the signal type, either dry contact (requiring an external DC 24V power supply) or wet contact (with an internal detection power supply provided by the module) can be selected. The input signals first pass through an RC filtering circuit to filter out high-frequency interference and spike pulses in the signals, avoiding misidentification caused by interference signals. At the same time, the overvoltage protection circuit monitors the input voltage. When the voltage exceeds 30V DC, current-limiting protection is triggered to prevent module damage.
2.

3. Signal Shaping & Threshold Judgment Stage: The filtered signals enter the signal shaping circuit, which converts irregular input signals into standard square wave signals. Subsequently, the signals enter a voltage comparator and are compared with the preset turn-on threshold (≤15V DC) and turn-off threshold (≥5V DC): when the input voltage is ≤15V DC, it is judged as the "on" state (corresponding to the digital signal "1"); when the input voltage is ≥5V DC, it is judged as the "off" state (corresponding to the digital signal "0"); signals within the threshold range maintain the previous state to avoid frequent state switching caused by signal fluctuations.
4.

5. Isolation & Conversion & Synchronous Acquisition Stage: The digital signals after threshold judgment enter the optical isolation circuit, and electrical isolation between the input signals and the module's internal circuits is achieved through an optocoupler to block the transmission of interference signals. Each of the 4 groups of channels has an independent isolation circuit to ensure no crosstalk between signals of different groups. For groups with the synchronous acquisition function enabled, the internal clock synchronization circuit of the module controls the simultaneous isolation and conversion of 8 signals in the group, ensuring acquisition time consistency with a time difference ≤1μs. The converted digital signals are transmitted to the module's microprocessor.
6.

7. Data Processing & Diagnostics Stage: After receiving the digital signals from each channel, the microprocessor performs delay processing according to the configured response time parameters. For example, if the response time is set to 10ms, the microprocessor judges the signal state detected continuously for 10ms, and only the continuously stable state is recognized as a valid signal to further filter out interference. At the same time, the microprocessor executes diagnostic programs in real time to monitor the input current of each channel, the state of the isolation circuit, and the communication state of the backplane bus. If a channel short circuit (excessive current), open circuit (zero current), or communication interruption is detected, a fault code is generated immediately.
8.

9. Data Transmission & Status Feedback Stage: The microprocessor transmits valid signal data and fault diagnostic information to the PLC host via the M340 backplane bus. The host stores the signal data in the input image area for the logical operation of the user program. Meanwhile, the status indicators on the module panel feed back the working status of each channel in real time: a green indicator on means the channel signal is "1" (on), a green indicator off means the signal is "0" (off), and a red indicator on means there is a fault in the channel. Fault information can also be uploaded to the upper monitoring system via the PLC host to realize remote fault early warning and troubleshooting.

V. Common Faults & Solutions
