140CRP31200 Schneider Remote EIO head module

140CRP31200 Schneider Remote EIO head module

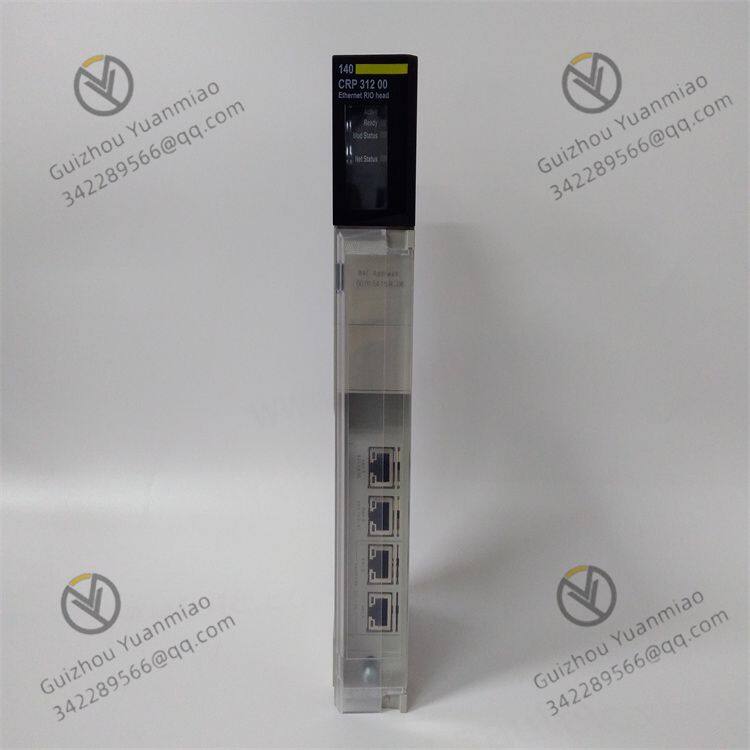

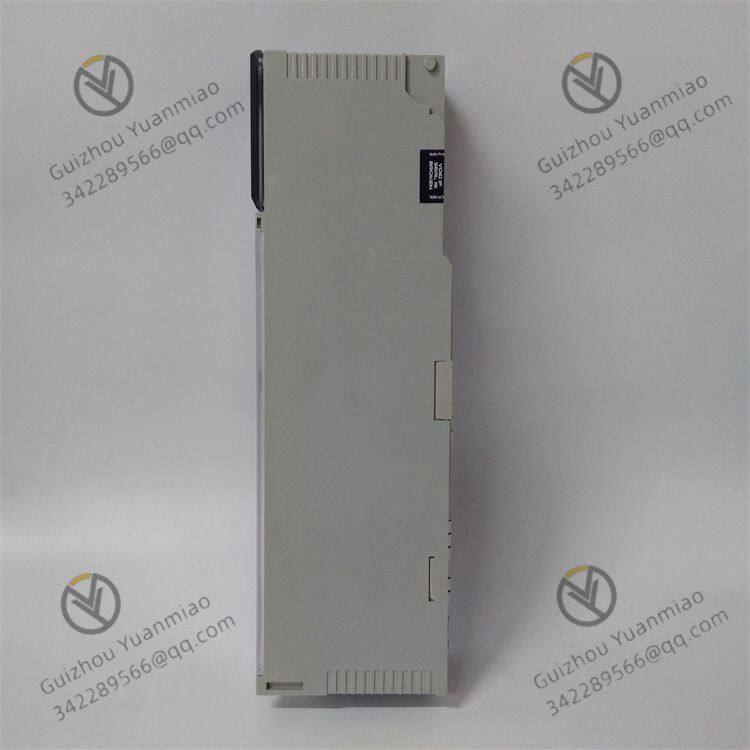

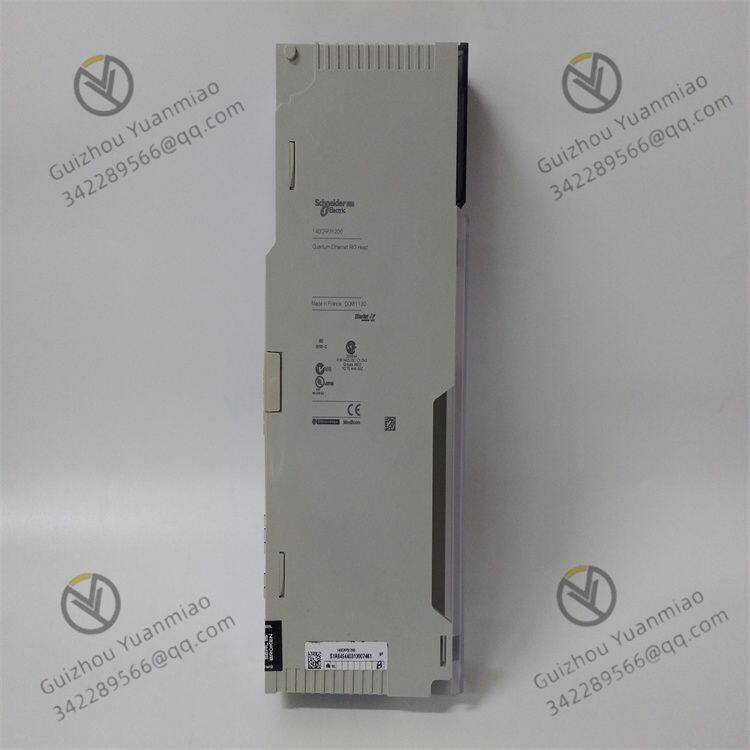

The 140CRP31200 is a Remote EIO Header Module by Schneider Electric, belonging to the Modicon Quantum series. It is primarily used to establish communication connections between Quantum series controllers and Ethernet. The detailed introduction is as follows:

Functional FeaturesProvision of I/O Scanning Services

Support for Ethernet Services

Rapid Communication Interruption Recovery

Support for Hot Standby Function

Multiple Ports Availability

• The Service Port (ETH1) diagnoses Ethernet ports and provides access to external tools and devices (such as Control Expert, Connexium Network Manager, HMI, etc.), supporting modes like access ports and port mirroring.

• The Interconnect Port (ETH2) connects with other EIO modules to provide remote I/O communication and offers cable redundancy through a daisy-chain loop structure.

•


Enablement of Distributed I/O Participation

External InterfacesLED Indicators

Service Port (ETH1)

Interconnect Port (ETH2)

Device Network Ports

Usage Notes

Only one 140CRP31200 can be configured on each local rack due to its interface for communicating with Ethernet remote I/O devices on the network.

Application FieldsManufacturing Industry

In scenarios such as automobile manufacturing, machining, and electronic assembly, this module enables precise control of production equipment. By real-time collecting and analyzing analog signals in the production process, it helps enterprises optimize production flows, improve production efficiency and product quality, and reduce defect rates.

Energy Industry

Applicable to power, petroleum, natural gas, and other fields, it realizes remote monitoring and control of energy equipment. Through precise control of energy equipment operation status, it enhances energy utilization efficiency, reduces operating costs, and assists enterprises in achieving energy conservation and emission reduction goals.

Water Treatment and Environmental Protection

In scenarios like water treatment plants and sewage treatment plants, it enables automated control of processes such as water quality monitoring, water pump control, and valve adjustment, improving water treatment efficiency and ensuring water quality safety. Its stability and reliability ensure long-term stable operation of water treatment systems.

Chemical and Pharmaceutical Industries

Chemical production and pharmaceutical processes have high requirements for precise control of parameters such as temperature, pressure, and flow. This module realizes collection and processing of these analog signals, ensuring production process stability and safety, thereby improving product quality and production efficiency.

Transportation

Applicable to transportation facilities such as subways and tunnels, it realizes automated control and monitoring of related equipment, ensuring the normal operation of transportation systems and improving operational efficiency and safety.

Glass Industry

Applicable to equipment such as flat glass annealing furnaces, glass kiln agitators, edge rollers, and bottle making machines, it helps improve glass production process levels and product quality, realizing automated control and optimization of the production process.

Chemical Fiber Industry
