Home > Electrical & Electronics > Electrical Control System > SCHNEIDER 140CPU11302 Core Processor Module

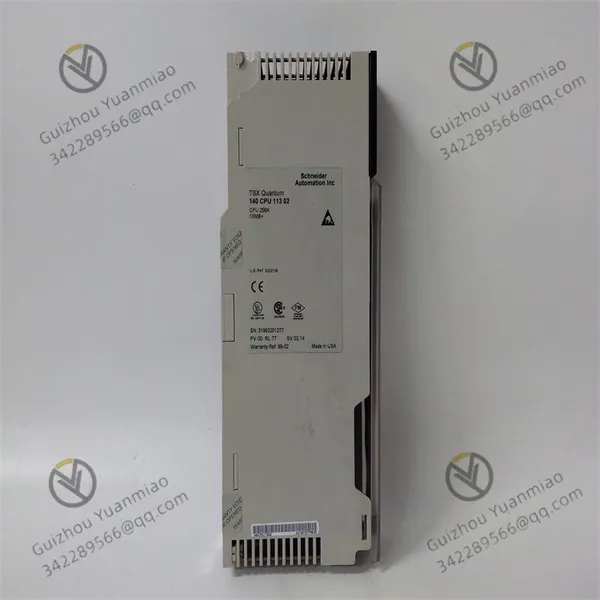

SCHNEIDER 140CPU11302 Core Processor Module

SCHNEIDER 140CPU11302 Core Processor Module thumbnail-2

SCHNEIDER 140CPU11302 Core Processor Module thumbnail-3

SCHNEIDER 140CPU11302 Core Processor Module photo-1

SCHNEIDER 140CPU11302 Core Processor Module photo-2

SCHNEIDER 140CPU11302 Core Processor Module photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other

Certification:

Other

Function:

Other

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other

Certification Other

Function Other

Condition Other

Task Other

Mathematical Model Other

Signal Other

Customized Other

Structure Other

SCHNEIDER 140CPU11302 core processor module

Performance Parameters:

Storage Capacity: Built-in 256K RAM and 8K user logic storage space, capable of storing and executing control programs written by users.
Processing Speed: With a clock frequency of 20MHz and a scan time of 0.3-1.4ms/k, it can quickly perform logical operations, timing control, and arithmetic operations.
Power Requirements: Supports 24V DC or 110/220V AC (requires a compatible power module), and is compatible with three power supply modes: independent, independent accumulative, and redundant.
Bus Current: 780mA.
I/O Points: Maximum local 64I/64O, distributed 30I/32O.

Communication Capability:
Integrated with 1 Modbus Plus port and 1 Modbus RS232 port, supporting 3 distributed networks and 2 remote networks. It can support up to 63 distributed nodes and 31 remote nodes, enabling cross-device data interaction and facilitating connection and data exchange with other devices, sensors, and networks.

Functional Features:

Modular Design: Needs to be inserted into a Quantum local I/O backplane (such as 140XBP01000), supporting distributed I/O expansion and remote network configuration. It allows flexible system expansion and customization according to actual needs, adapting to industrial automation projects of different scales.
Powerful Computing Capability: Built-in 256K RAM and 8K user logic storage space, with a clock frequency of 20MHz and a scan time of 0.3-1.4ms/k. It can quickly perform logical operations, timing control, and arithmetic operations to meet the requirements of industrial automation systems for data processing speed and accuracy.
Flexible Communication Capability: Integrated with 1 Modbus Plus port and 1 Modbus RS232 port, supporting 3 distributed networks and 2 remote networks. It can support up to 63 distributed nodes and 31 remote nodes, facilitating data exchange with other devices, control systems, and upper-level networks for system integration and expansion.
High-Reliability Design: Equipped with a 1.2AH lithium battery to save data during power outages, with a service life of up to 10 years. Supports a watchdog timer to detect system failures in a timely manner and take corresponding measures. Certified by CE, it can operate stably in industrial environments with temperatures ranging from -25°C to 60°C and humidity from 5% to 95%, adapting to harsh industrial environments.
Good Scalability: Adopts a modular architecture, requiring insertion into a Quantum local I/O backplane, and supports distributed I/O expansion and remote network configuration. Users can flexibly add I/O modules or expand memory according to actual needs to customize and configure the system for specific application requirements.
Multiple Power Supply Modes: Compatible with three power supply modes: independent, independent accumulative, and redundant, ensuring stable system operation under different power supply conditions and improving system reliability and scalability.
Support for Multiple Programming Languages: Supports multiple programming languages such as C++ and PLC, facilitating program writing and development for users with different technical backgrounds, reducing programming difficulty, and improving development efficiency.
Strong Analog Signal Processing Capability: Supports 8 channels of analog input and output with high resolution, enabling precise acquisition and control of analog signals. It is suitable for monitoring and controlling analog parameters such as temperature, pressure, and flow, and can be widely applied in process control fields.
Energy Management: Can be integrated into the power distribution system to realize start-stop control and energy consumption monitoring of frequency converters and motors, helping to optimize energy use efficiency in industrial production.

Application Fields:
Suitable for scenarios such as material processing, packaging, textile machinery, and complex industrial process control. It can be used in process control links such as temperature regulation of chemical reactors and data collection and feedback control of pressure sensors.

Product Tags: 140CPU11302
