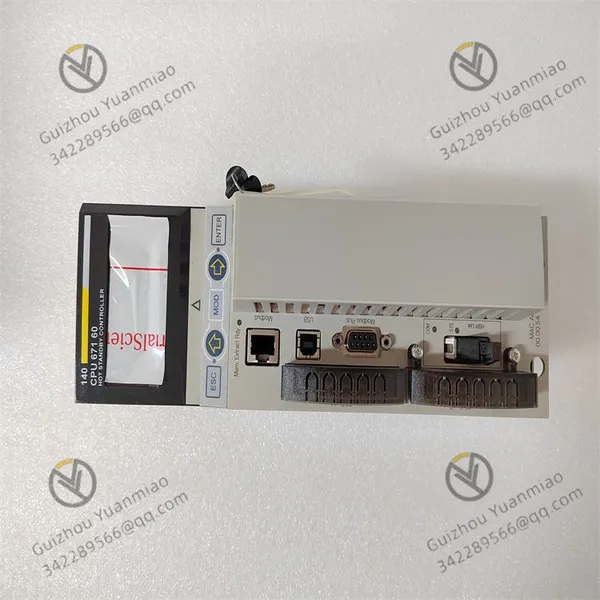

Schneider Electric 140CPU67160 Hot Standby CPU Module photo-2
Schneider Electric 140CPU67160 Hot Standby CPU Module photo-3
Schneider Electric 140CPU67160 Hot Standby CPU Module photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other
Certification:
Other
Function:
Other
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other
Certification Other
Function Other
Condition Other
Task Other
Mathematical Model Other
Signal Other
Customized Other
Structure Other

Schneider Electric  140CPU67160  hot standby CPU module

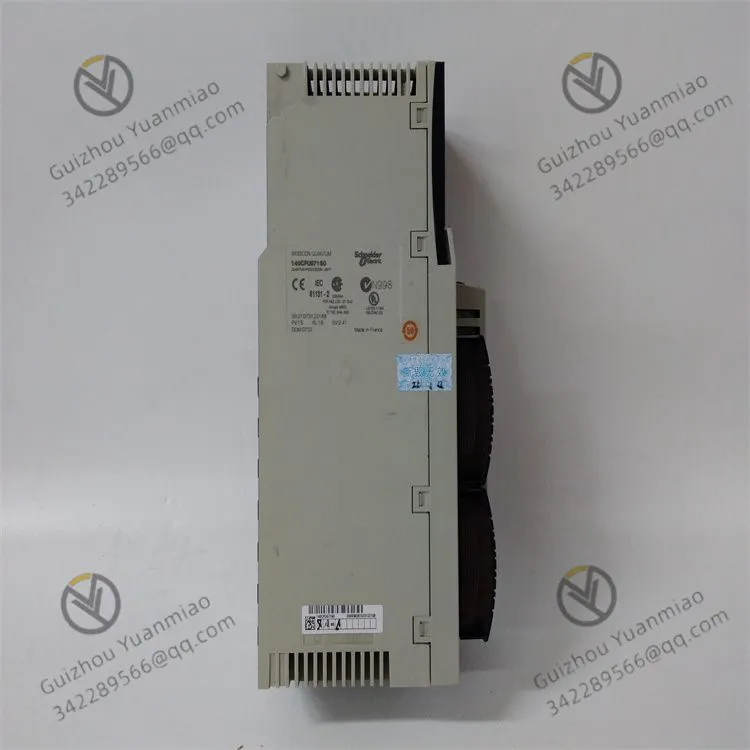

140CPU67160 (1)


The following is a detailed introduction to the functional features of Schneider Electric's 140CPU67160 hot-standby CPU module:


  1. Hot-Standby Redundancy Architecture

Dual-Machine Hot-Standby Mechanism

  • Supports real-time synchronous operation of master/standby CPUs, exchanging data via high-speed redundant links (e.g., Unity Network).

  • When the master CPU fails, the standby CPU automatically takes over control seamlessly within

Application Scenarios

  • Suitable for critical scenarios where downtime is not allowed, such as chemical, power, and rail transit industries.

    • E.g., temperature control of reactor vessels in refineries, switch status monitoring in substations.


2. High-Performance Computing CapabilityProcessor and Memory

  • CPU: PowerPC 603e 266MHz, supporting complex algorithms and multitasking.

  • RAM: 1024KB (including 512KB dedicated data storage), expandable to 8MB file storage and 7MB program storage.

Instruction Execution Speed

  • Basic logic instructions execute in ~0.05μs, suitable for high-speed closed-loop control (e.g., servo motor positioning).


3. Rich Communication InterfacesStandard Ports

  • 1× Modbus RS232/485 (supports ASCII/RTU protocols)

  • 1× USB 2.0 (for programming and debugging)

  • 2× Distributed I/O interfaces (support Unity Network/SyncLink)

  • 4× Remote I/O interfaces (e.g., S908 remote stations)

Expandable Networks

  • Supported via optional modules:

    • 6× Ethernet (TCP/IP, Modbus/TCP)

    • 6× Profibus DP (master/slave mode)

    • 6× Modbus Plus (supports 63 distributed nodes)

Application Value

  • Connects PLCs, HMIs, SCADA systems, and third-party devices (e.g., frequency converters, smart meters) to build complex industrial networks.

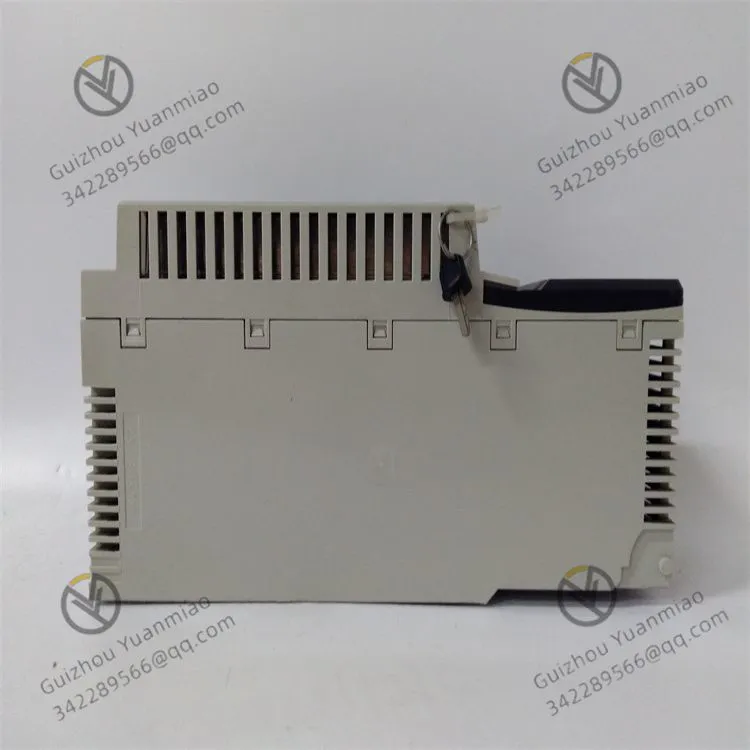

  • 140CPU67160 (2)

4. Integrated Display and Operation InterfaceLCD Display

  • 2-line × 16-character backlit LCD shows:

    • CPU status (Run/Stop/Fault)

    • Real-time clock and date

    • Key I/O point values or alarm messages

Physical Buttons

  • 5 programmable buttons (mapped to specific memory addresses) for on-site emergency operations (e.g., shutdown, mode switching).


5. Safety Certification and Reliability DesignSafety Rating

  • Certified to SIL2 (complies with IEC 61508), supporting safety-related applications (e.g., emergency shutdown systems).

Environmental Adaptability

  • Operating temperature: -25°C to +60°C

  • Humidity: 5%–95% (non-condensing)

  • Vibration resistance: 10–57Hz (1g), 57–200Hz (2g)

Data Protection

  • Built-in lithium battery (12mAh) preserves RAM data for up to 10 years during power outages.


6. Flexible Programming and DiagnosticsProgramming Languages

  • Supports IEC 61131-3 standard languages:

    • Ladder Diagram (LD)

    • Function Block Diagram (FBD)

    • Structured Text (ST)

    • Sequential Function Chart (SFC)

Diagnostic Functions

  • Real-time monitoring of CPU load and memory usage

  • Online detection of I/O module faults (LED indicators + system logs)

  • Remote diagnostics via Ethernet or Modbus

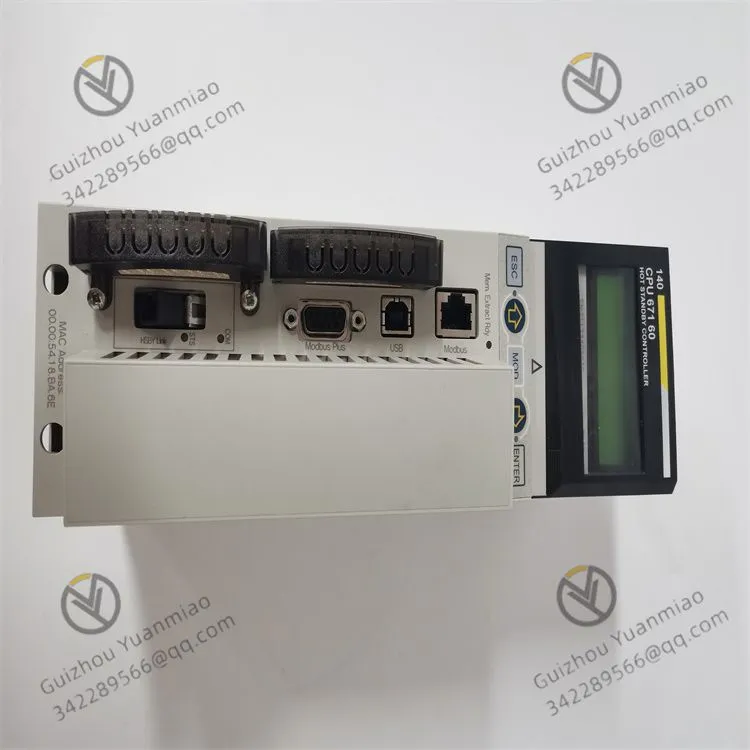

  • 140CPU67160

7. Modular Expansion CapabilityLocal I/O Expansion

  • Supports 27-slot local backplanes, configurable with digital/analog I/O modules, communication modules, etc.

Distributed Architecture

  • Connects up to 63 remote I/O stations via Unity Network or Profibus DP, with maximum I/O points per station:

    • Digital: 8,000 points

    • Analog: 1,984 points

Typical Application Scenarios

  • Power Systems: Substation automation, generator synchronization control

  • Chemical Processes: Reactor temperature/pressure closed-loop control, emergency shutdown systems

  • Rail Transit: Signal system redundancy control, platform screen door monitoring

  • Metallurgy: Rolling line speed synchronization, heating furnace temperature regulation

  • Municipal Engineering: Multi-pump  in sewage treatment plants, remote pump station monitoring


Comparison with Other Models

Model Hot-Standby CPU Type Clock Speed Memory Communication Interfaces
140CPU67160 ✅ PowerPC 266MHz 1024KB Ethernet + Profibus + Modbus
140CPU43412A ❌ PowerPC 200MHz 4096KB Ethernet + Modbus Plus
140CPU31110 ❌ 486 66MHz 548KB Modbus Plus + RS232


Conclusion

The 140CPU67160 becomes the preferred controller for critical industrial systems, leveraging four core advantages: hot-standby redundancy, high-speed processing, multi-protocol communication, and safety certification. Its modular design and broad compatibility enable adaptation to diverse scenarios, from simple single-machine control to complex distributed networks.
