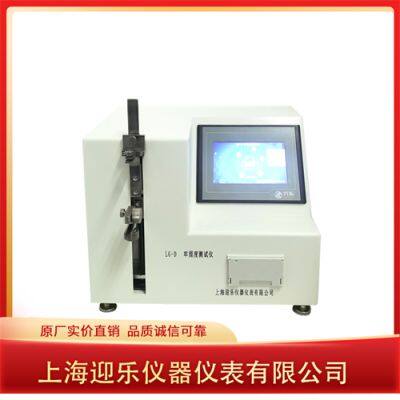

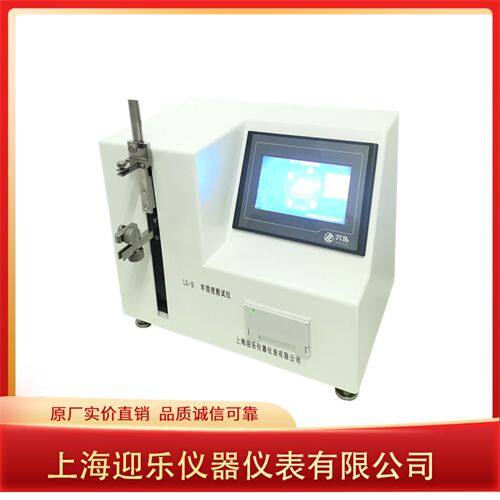

Intravascular Catheter Retention Force and Connection Strength Tester

Technical indicators:

Operating interface: Simplified Chinese/English

Testing standard: YY1282-216 "Disposable Venous Access Catheter"

          YY0321 Breaking force test

Display: 7-inch K600  core/matrix65-color 800*480 resolution touch screen display, PLC control system dynamically displays load value; digital closed-loop control, AD acquisition speed of500KHz, internal code 500,000; high-precision clock chip, power-off storage; overload alarm shutdown protection; touch operation: specifications, tests, up, down, time, calibration. Real-time display of traction force.

Testing items: Used to test the breaking force of medical catheters, firmness of the connection between catheters and catheter connectors, the firmness of the connection between needle seats and needle tubes, and the firmness of the connection between cores core seats, etc. for stretching tests.

Programmable controller: PLC ARM,

Tensile force test range: Custom 0-80N, error ±1%, resolution 0.01N.

Time setting: Custom 1-999S, error within ±0.5S.

Speed setting Custom 50mm/min~500mm/min, error within ±5%.;

Sensor: High-precision force value sensor (software and hardware protection)

Printing method: Built-in miniature dot matrix printer

Testing data: Built-in automatic collection of firmness test data, maximum value and average value and deviation value firmness, etc.

Power supply: AC90V-240V/50Hz

Net weight: 20kg Dimensions: 400240×240 (mm)

Manufacturer introduction: Shanghai Yingle Instrument Co., Ltd. (formerly Shanghai Xingle) is located in Shanghai, the manufacturing capital. The company was founded in 1993. It is a manufacturer of physical performance testing equipment for medical consumables integrating design, research and development, and sales. The company's products mainly serve third-party testing institutions, medical consumables production unit quality laboratories and R&D centers, etc.; the company has more than 30 years of industry experience, and is the first domestic disposable medical device physical performance testing instrument manufacturer. It is also the first company to obtain CMC certification. The company mainly produces medical stainless steel needle tube testing equipment, medical syringe testing equipment, medical infusion set testing equipment, medical suture needles, thread testing equipment, 6% Luer connector testing equipment, etc. Technical indicators are updated at any time with the industry standards for medical pharmaceutical packaging materials to ensure that the company's products serve customers with the latest standards.
