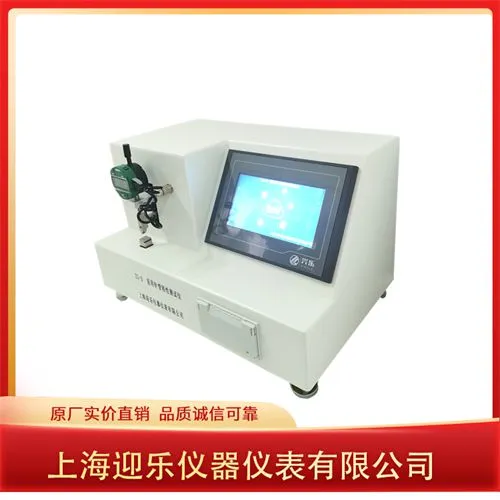

Help CenterMedical Needle Rigidity Tester
Related Products
-
Blood Collection Needle Tip Puncture Force TesterNegotiableMOQ: 1 Piece -
Medical Injection Needle (tube) Rigidity Tester for Disposable SyringeUS$ 30000 - 48000MOQ: 1 Combo
-
Medical Injection Needle Tip Puncture Force Testing InstrumentNegotiableMOQ: 1 Piece
-
Medical Syringe (needle) Rigidity TesterUS$ 30000 - 48000MOQ: 1 Combo
-
Medical Injection Needle Rigidity Tester Shanghai Yingle ManufacturerUS$ 30000 - 48000MOQ: 1 Combo
Technical indicators:
Operation interface: Simplified Chinese/English
Test standard: ISO9626-2016 "Requirements and Test Methods for Stainless Steel Needles for Medical Device Manufacturing"
GB18457-2024 "Stainless Steel Needles for Manufacturing Medical Devices"
Display: Adopt 7-inch K600+ kernel/dot matrix 65-color 800*480 resolution touch screen display, PLC control system dynamically displays the loading force value; digital closed-loop control, AD acquisition speed is 500KHz, internal code 500,000; high-precision clock chip, power-off storage; overload alarm Alarm shutdown protection; touch operation: nominal specification, pipe wall, span, set load, maximum deflection, print setting, test, up, down, time, calibration.
Programmable controller: PLC+ARM,
Sensor: high-precision force value sensor, software and hardware protection function
Pipe wall: normal wall, thin wall, ultra-thin wall, extremely thin wall, four types of optional;
Nominal specification: customized 0.18~3.4mm;
Load range: 0~60N, accuracy: ±0.1%; resolution: 0.01N
Loading rate: 1mm/min~10mm/min;
Span: 5~50mm Accuracy: ±0.1mm (11 specifications);
Deflection range: 0~0.999mm, error not greater than ±1‰; resolution: 0.001mm
Printing method: on-board micro-needle printer
Test data: on-board automatic collection of rigid data, maximum rigid value and calculation of average rigid value and deviation value
Power of the whole machine: 200W
Power supply: AC90V-240V/50Hz
Net weight: 10kg External size: 300×240×240 (mm)
Shanghai Yingle Instrument and Instrument Co., Ltd. has a product experience with an experienced customer manager to negotiate your and develop a custom solution. Ensure that the product design plan is reasonable, the price is appropriate, and the quality is up to standard. The company has more than thirty years of experience and is the first domestic (shou) manufacturer of physical performance testing instruments for disposable medical devices, and is also the first (shou) company to obtain CMC. The company focuses on the production of medical consumable testing equipment, and its products mainly include medical needle testing instruments, medical syringe testing instruments, infusion set testing instruments,uture needle testing instruments, suture line testing instruments, medical device flow testing instruments, etc. With strong technical strength, rich manufacturing experience, high-quality products, and high- and reliable services, it has successfully won the high recognition of the market. At present, the cumulative number of customers has reached thousands, covering all provinces and cities in the country, the products are widely used in scientific research institutes, testing institutions, and major medical enterprises, schools, etc. With the concept of "innovation leading the future, service the brand", Yingle will continue to provide high-quality products, reasonable prices, and satisfactory services for the majority of users, and continue to innovate and strive excellence in the road of testing industry, creating higher brand value.
