High-speed Automatic Bottle Unscrambler Applied in Pharmaceutial, Health Food Industry

High-speed Automatic Bottle Unscrambler Applied in Pharmaceutial, Health Food Industry photo-1
High-speed Automatic Bottle Unscrambler Applied in Pharmaceutial, Health Food Industry photo-2
High-speed Automatic Bottle Unscrambler Applied in Pharmaceutial, Health Food Industry photo-3
High-speed Automatic Bottle Unscrambler Applied in Pharmaceutial, Health Food Industry photo-4
High-speed Automatic Bottle Unscrambler Applied in Pharmaceutial, Health Food Industry photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Chemical Industry, Cosmetic Industry, Food Industry, Food Safety, Pharmaceutical Industry
Packaging Material:
Glass, Plastic
Features:
Sterilization Capability, Other, High speed, Enclosed structure
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo port, China
Delivery Detail:
35 days
Application Chemical Industry, Cosmetic Industry, Food Industry, Food Safety, Pharmaceutical Industry
Packaging Material Glass, Plastic
Features Sterilization Capability, Other, High speed, Enclosed structure
Automation Grade Automatic
Machine Material Stainless Steel
Transport Package Film/Foam wrapping and wooden case
Specification 1000*1200*1260mm
Trademark China Shark Industry
Origin China


BPL-200 Automatic Bottle Unscrambler

Voltage/
Frequency

Total Power

Air Consumption

Air
Pressure

(V/HZ)

(Kw)

(L/min)

(MPa)

220

0.5

2

0.5

Packaging Description
Production capacity(BPM): (depending on bottles) max 200 bpm, speed is adjustable
Bottle volume:15-300ml

Main configuration and parameters:
1. lt's an electromechanical equipment, working stable and reliable, low noise, convenience
in operation and maintenance. The touch screen is in English language, and machine is control by PLC system.It can count, set working parameter,display and can be set freely in the range of parameters.
2. The machine is equipped with quantitative control detection and overload protection device. Noise is less than 70dB.
3. The equipment has no dead corner, and body barrel are made of 304 high quality
stainless steel, which are easy to clean and disinfection and meet GMP requirements.
and meet GMP requirements.

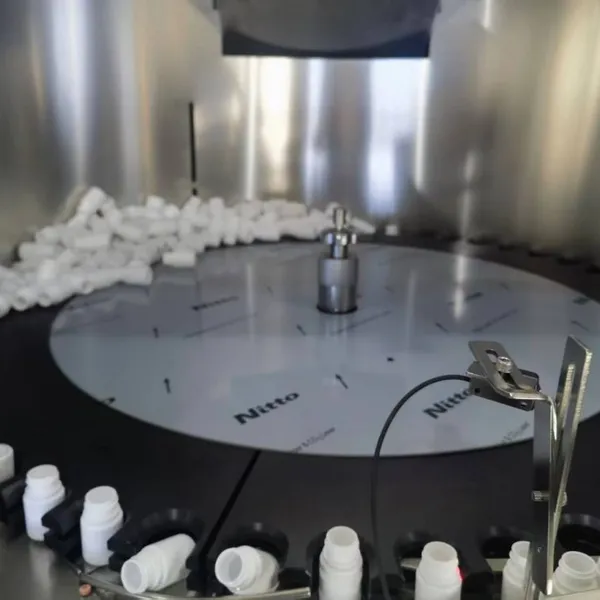

4. lt improves the production efficiency with the bottle turn-over
mechanism and bottle collection device. The equipment has two stepless speed regulating
motor. One is for controlling the rolling speed of bottle unscrambling turntable, the rolling
speed is faster and the bottle out-feed speed is faster as well. There is a photoelectric switch at the exit, detecting bottle blocking on the following conveyor belt, lf there is bottle blocking, the motor will stop working. lf there is lacking bottle, the motor will continue work.

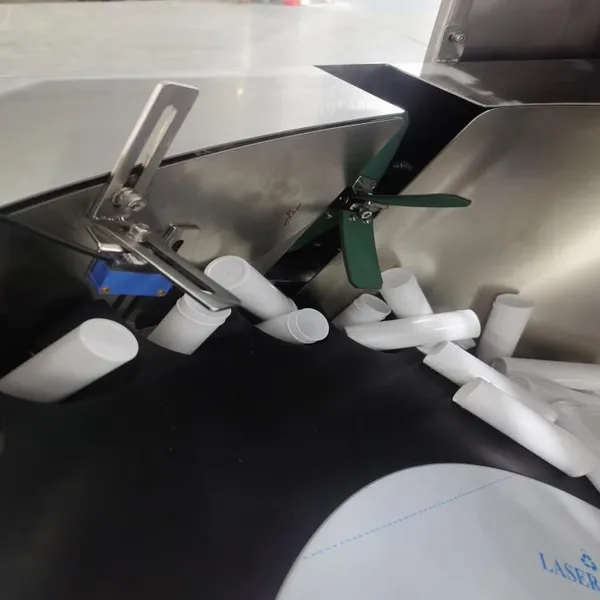

5. A bowing device is installed at the exit. lt blows out inverted bottles back into bottle unscrambling turntable, ensure bottles on the conveyor belt are in right direction and go to next machine smoothly.
6. Dimension (LXWXH)(mm):1000x1510x1200
7. Weight:350 Kg


Product Tags: Automatic bottle unscrambler , Bottle sorting machine , Bottle feeding equipment
