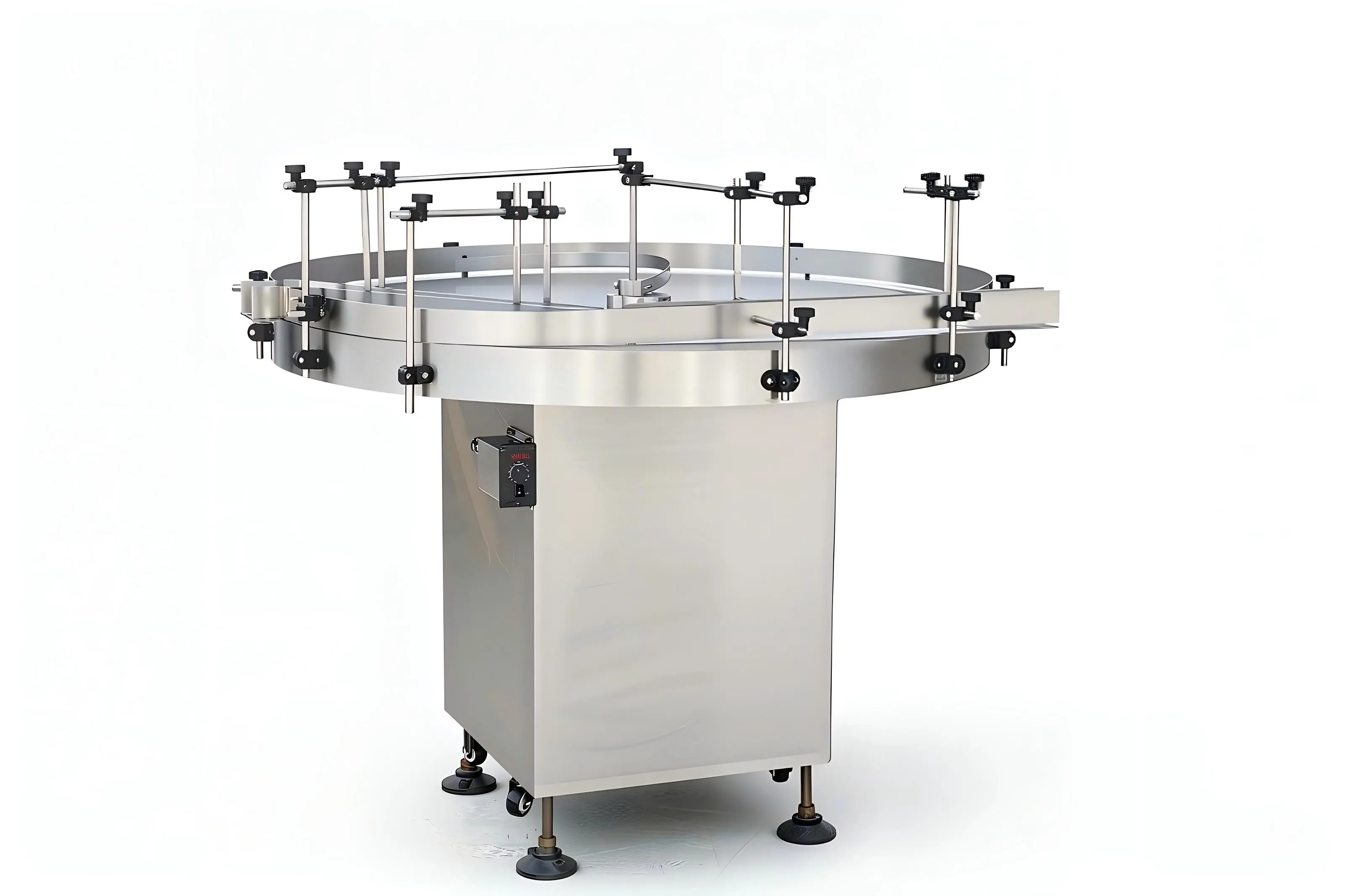

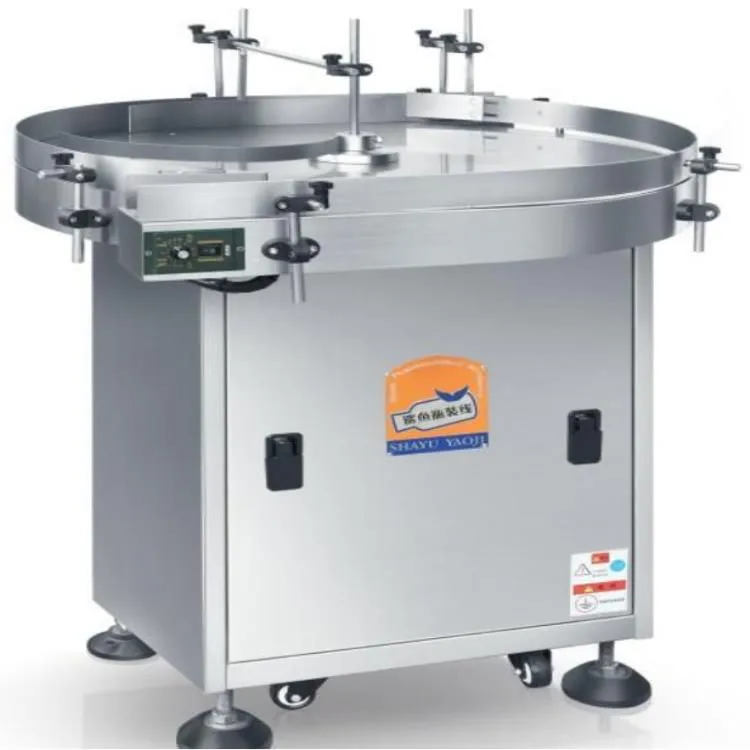

BPL-Z Rotary Type Bottle Sorting Machine
The BPL-Z Rotary Bottle Unscrambler is a high-efficiency automated bottle handling system designed and manufactured in strict compliance with GMP standards. Specifically engineered for pharmaceutical, chemical, light industry, and food production lines, this machine excels in handling multiple bottle specifications with production capacities under 150 bottles per minute. Featuring accumulation, transfer, and unscrambling turntables with polished stainless steel or polyethylene tops, it ensures gentle and reliable bottle handling throughout the packaging process.
BPL-Z Rotary Type Bottle Sorting Machine |
Voltage/ |
Total Power |
Air Consumption |
Air |
(V/HZ) |
(W) |
(L/min) |
(MPa) |
|
220/50 |
80 |
|||
Packaging Description | ||||
Main Configuration and Parameters: | ||||
Key Features & Advantages:
GMP Compliance: Designed according to strict GMP standards for pharmaceutical and food industries Versatile Handling: Suitable for 20-500ml bottles with adjustable speed and reversible rotation Quality Construction: Made from high-grade stainless steel with polished turntable surfaces Flexible Configuration: Available in multiple sizes (800mm to 1500mm diameter) with height-adjustable design Easy Integration: Compatible with counting machines, capping equipment, and labeling systems
Technical Specifications:
Model: BPL-Z Suitable Bottle Size: 20-500ml Production Capacity: 0-150 bottles per minute Power Supply: 220V/50Hz/80W Total Power: 0.08kW Dimensions: 800×1100×1100mm to 1500×1200×1100mm Net Weight: 85-150kg Turntable Material: Polished stainless steel or polyethylene Features: Variable speed drives, reversible rotation, height-adjustable
Applications:
Pharmaceutical packaging lines Chemical product bottling Food and beverage packaging Health supplement production Multi-variety, low-volume production environments
Operation Process:
Manual Bottle Loading → Automatic Bottle Orientation → Automatic Bottle Arrangement → Automatic Bottle Discharge
The basic structure of the machine
The BPL-Z rotary bottle aligning machine is mainly composed of a frame, a motor, a bottle aligning platform, a bottle discharging track, a switch and other components.
