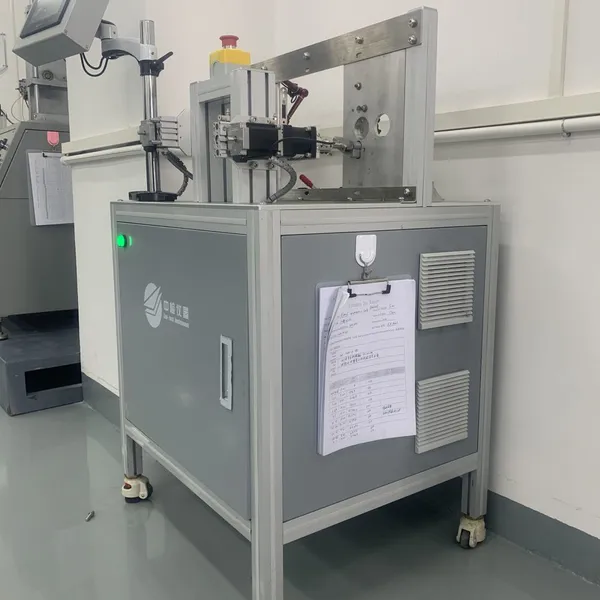

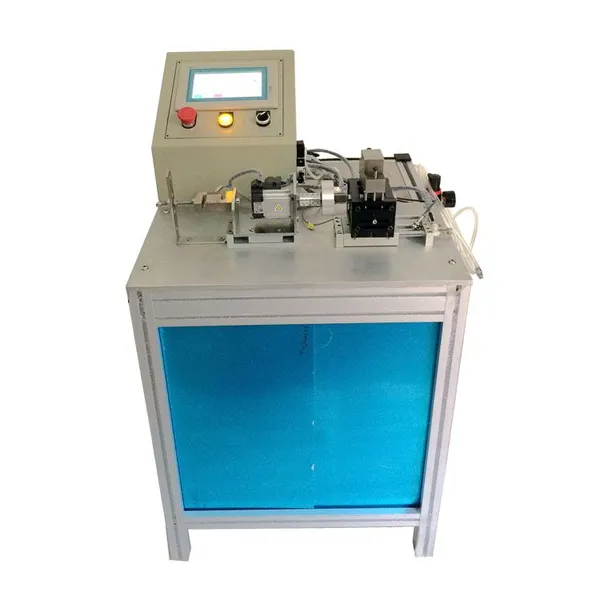

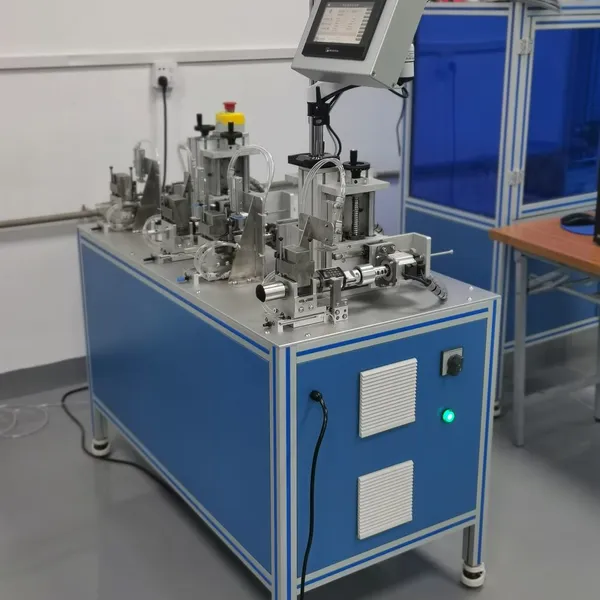

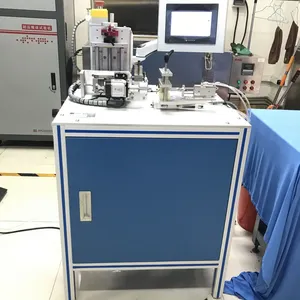

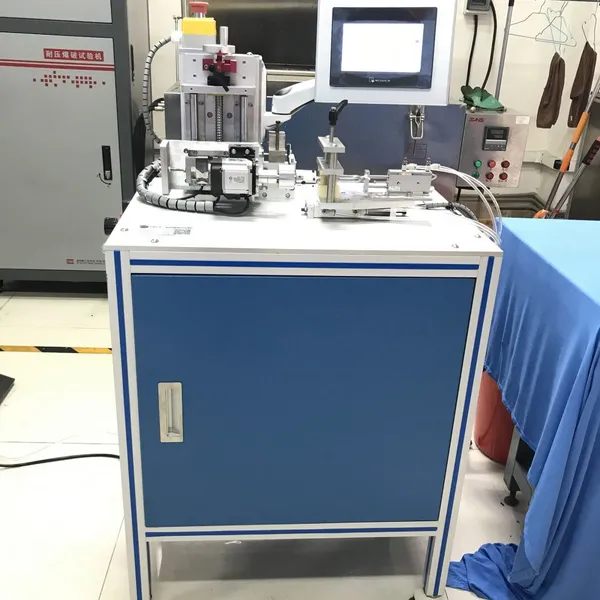

Help CenterLock Cylinder & Padlock Cycles Test Machine
Related Products
Test equipment function：
The equipment is designed to test operational and durability performance of padlock or lock cylinders according to European standards, A special loading and action device was equipped on this automatic machine to load the cylinder driving cam during operating the cylinder with its key. And the cylinder or padlock key is operated by servo motor to operate the key to exact operating angle with torque monitoring. And an additional sensor is for the force monitoring (insert or withdraw). It is super added value facility to identify classification and quality of lock or find out any product defect.
Equipment parameters：
Model： ZNEN1303-1X
Size：L 0.8 m * W 0.6 m * H 1.2 m
Operating Angle：adjustable -720 to 720°
Touch Screen：WEINVIEW
Frame：stand-alone test stand
Test position：one or two test position
PLC：Panasonic ; Pneumatic：Airtac
Test standard：Meet EN 1303,AS 4145.2 and EN 12320
Sensor：four sensors for loading action , insert/withdraw position, operating torque and insert/withdraw force;
