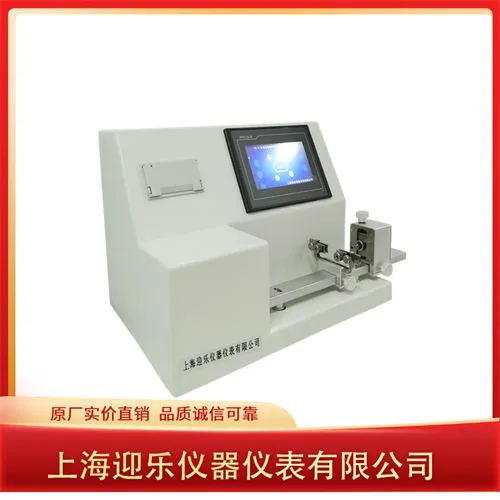

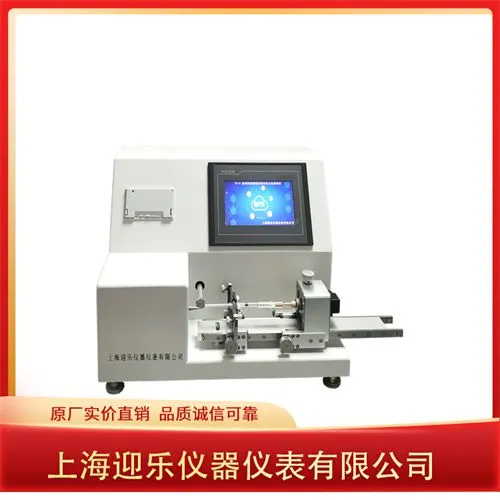

Medical syringe barrel positive pressure tester
Technical indicators:
Operation interface: Simplified Chinese/English
Testing standard: GB15810-209 "Disposable Sterile Syringe"
ISO7886-1-2017 "Disposable Sterile Syringe"
Display: 7-inch600 core/matrix 65-color 800*480 resolution touch screen display, PLC control system dynamically displays load value; Operation interface: Chinese/English/Chinese and English switch; Digital closed-loop control, AD acquisition speed of 500KHz, internal code 500,00; High-precision clock chip, power-off storage; Overload alarm shutdown protection; and is selected by the touch screen display menu, the nominal capacity of the syringe, lateral force used for the leakage test, the axial pressure, and the lateral force, axial pressure during the test, and the time of action on the piston rod, etc.Programmable controller: PLC ARM,
Sensor: High-precision force sensor with software and hardware protection function
Lateral force: 0.25N～3, error within ±1%;
Axial pressure: 100Kpa～400Kpa, error within ±5%;
Nominal capacity: Custom 1ml～60ml, choose at will;
Testing time: Customized 999S±1S, error within ±1S.
Printing: Miniature pin printer
Testing data: In-flight automatic collection of test data, in-flight printing of test results
Overall power: 400W
Power supply AC90V-240V/50Hz
Net weight: 12kg
Dimensions: 485×345×30 (mm)
Shanghai Yingle Instrument & Instrument Co., Ltd. is a technology enterprise with 31 years of professional experience the production and research and development of instruments and meters, covering multiple fields including industrial automation, laboratory instruments, scientific research monitoring, medical detection equipment, etc. The company's product are rich, including injection needle test instrument, syringe test instrument, infusion needle test instrument, infusion set test instrument, suture needle test instrument, suture line test, 6% Luer cone joint comprehensive test instrument, indwelling needle test instrument, blood collection needle test instrument, acupuncture needle test instrument, needle tube rigidity test instrument, toughness test instrument, firmness test instrument, air tightness positive and negative pressure test instrument, sealing leakage test instrument, etc., meeting the needs of different. The company has always paid attention to product quality and customer service, and is the first domestic manufacturer of physical performance test instruments for disposable medical devices, and is also the first (ou) company to obtain CMC certification. We have a strict quality control system to ensure the stability and reliability of products. At the same time, we also provide professional pre- consultation and after-sales service to meet customer needs and solve problems.
