Product Description:
This series features a slotless worktable and a dual-guide rail paper feed system, ensuring high paper feeding speed and precise feeder positioning. The cutting system utilizes a highly wear-resistant turbo dynamo. The friction clutch is electromagnetically controlled, enabling stepless adjustment of the cutting pressure over a wide range.
The paper pressure can be adjusted from 200N to 55,000N, ensuring the quality of a wide range of cut products. The cutting action is synchronized with both hands via buttons, and safety features include infrared light control and single-cycle cutting.
This series of paper cutters offers low noise, high cutting power, and high precision, while remaining durable, safe, and reliable. Optional electrical components include international brands from France, Germany, and Japan, as well as a high-speed ball screw from Taiwan.
The hydraulic system complies with European safety standards. Dual guide rails, a paper cutter strip ejector, an optical blade setting device, and a heavy-duty resin sandblasted body ensure warping-free operation, enhancing safety and improving production efficiency.

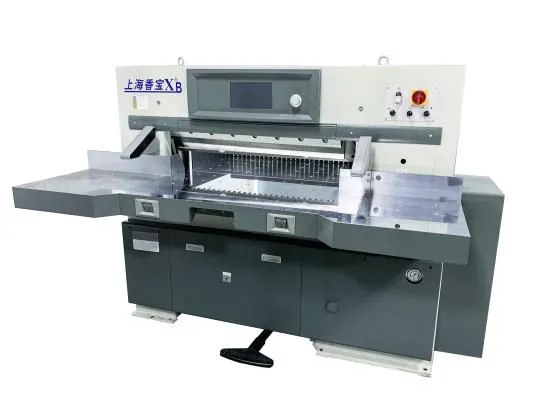

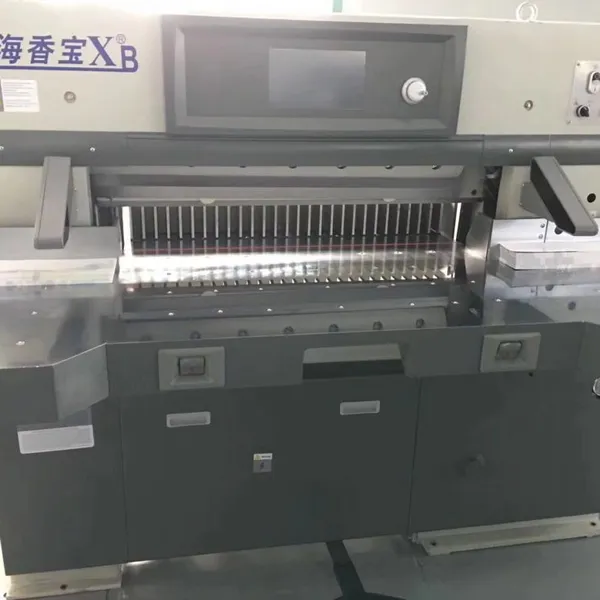

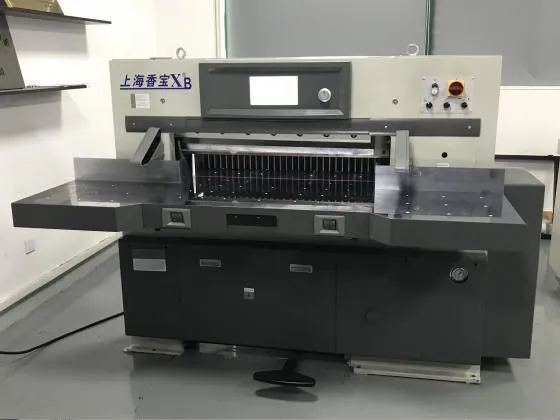

Shanghai Xiangbao XB-QZK1300C:
Servo economical microcomputer program control has full-automatic, semi-automatic, manual and immediate positioning functions.
It has 50 program groups, each program group has 99 programmable data, and the data memory storage time is more than 300,000 hours.
The paper feeding motor is controlled by an imported inverter, combined with a high-precision paper feeding structure to achieve stepless speed regulation. The paper feeding speed is 6-15 meters/minute, and the positioning accuracy is 0.05mm.
It uses an industrial environmentally friendly 10-inch LCD screen for precise positioning.
Equipped with a highly reliable photoelectric protection device and two-hand synchronous operation of the cutting button to ensure the personal safety of the operator.
The chrome-plated working platform saves the user's maintenance time and extends its service life.
All large parts of the entire machine have undergone aging vibration treatment for long-term use.
Technical parameters:
Machine model Shanghai Xiangbao XB-QZK1300C leading hydraulic paper cutter
Maximum cutting width 1300mm
Maximum cutting length 1300mm
Maximum paper pressing height 120mm
Maximum paper pressing pressure Newton 50000n
Main motor power 4kw
Paper feeding motor 0.55kw
Fan 0.75kw
Cutting speed 42 times/min
Machine gross weight 3500kg
Machine size 2700*2900*1600mm
Power supply parameters 380v
