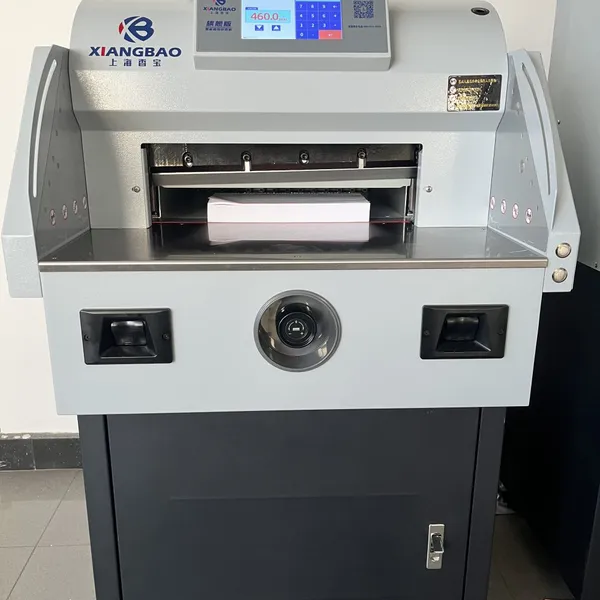

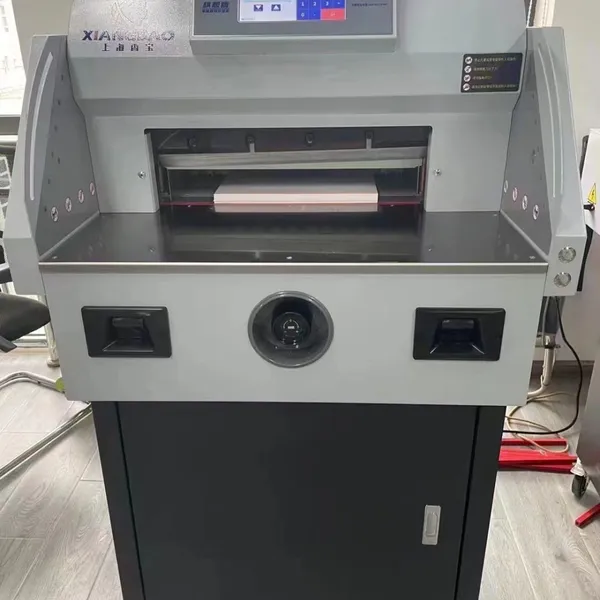

Shanghai Xiangbao XB-AT900EP Falgship Version Electric Paper Cutter

Product Description:

Introduction to machine features:

1. Heavy-duty paper cutter design:The gantry adopts an integral casting process and is cast in one piece. It is durable and not easy to deform, and there will be no loose screws or desoldering.

2. Widened and thickened knife holder: The contact area of the cutter is large when it moves up and down. The larger the contact area, the more stable it is, and there will be no deformation or bending during cutting, which effectively ensures the paper cutting accuracy and is durable.

3. Swing arm knife holder: The traditional roller slide mode is cancelled, and the swing arm design is adopted according to the German paper cutter structure, which is evenly stressed and not easy to wear.

4. Surrounding paper pushing structure: According to the paper pushing design of the full-open paper cutter (the middle screw rod, the left and right guide rails), the noise is low and the stability is strong during operation.

5. Front platform: The surface of 304 stainless steel plate is smooth, the paper is pushed easily and the friction is small, which protects the cut material from scratches.

6. Multi-function operating system: The paper pressing pressure can be set according to the cut material to meet different needs; when the size deviates after long-term use, the size can be calibrated in the touch screen, which is more convenient without removing the screws; it can be set according to your own operating needs: automatic book pushing, program control function, segment mode and CNC mode; the machine is equipped with shortcut keys A3, A4, A5, A6, and there are 4 groups of custom shortcut keys, which can be moved according to your needs; when the machine fails, it can be troubleshooted according to the alarm information, detection mode, and function debugging, which is very simple and convenient.

7. 7-inch touch color screen: easy to touch, clear at a glance, simple and clear operation, and very good touch feel.

Technical parameters:

Display mode, seven-inch touch color screen

cut size 30mm-460mm,

paper thickness 60mm,

cutting accuracy ±0.3mm,

paper push accuracy 0.1mm,

power mode electric paper feed width 460mm,

power parameter AC220V/1.15kw,

weight 160kg,

weight with wooden box 215KG,

machine size 970X770X1340mm
